LZ25KC60 - Exmark 60" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 102000 - 114999) (1995) Front Frame Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 25hp Kohler

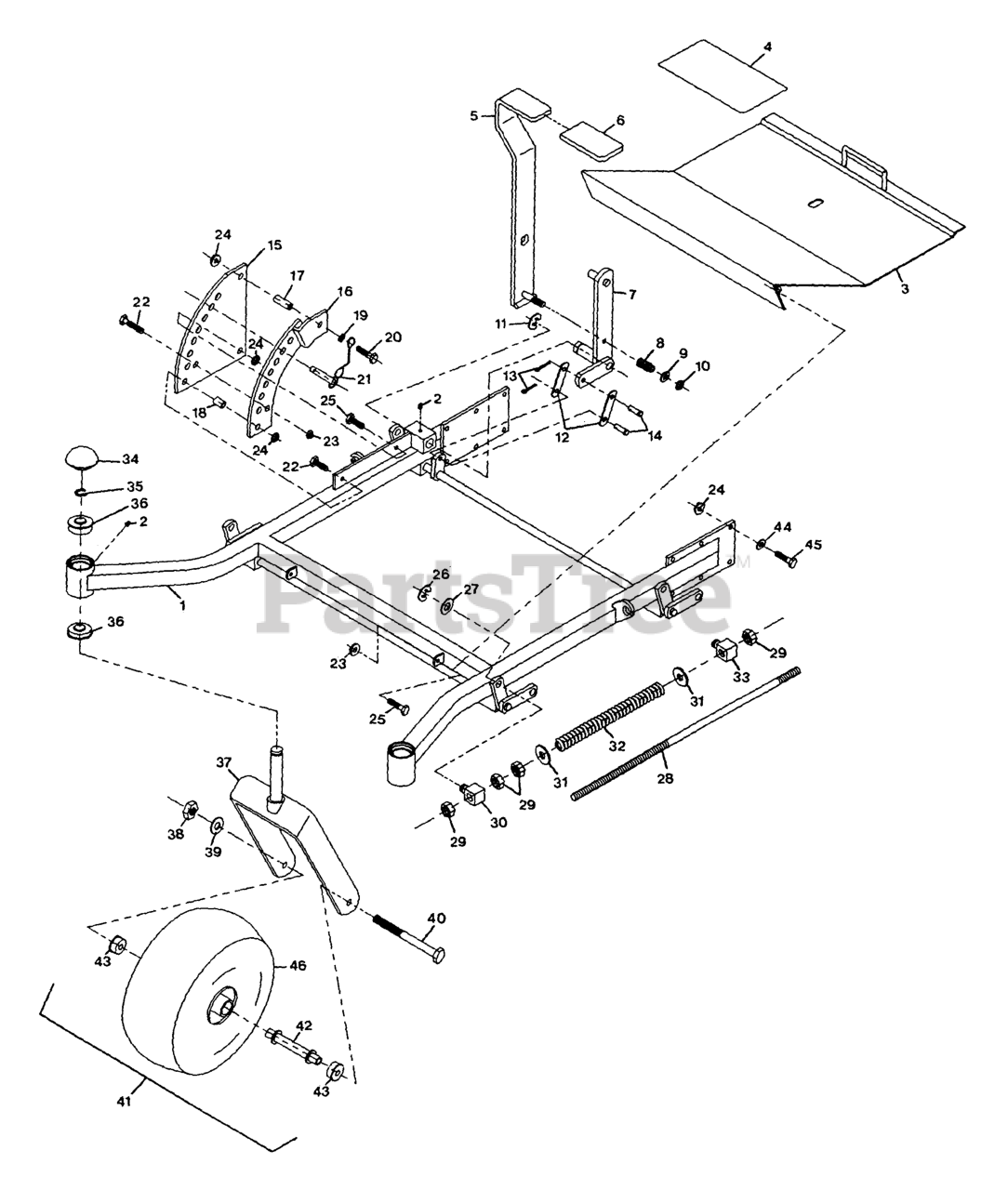

Front Frame Group Parts Diagram

  • Title

1

Exmark 1-632225

103-0341
(Superseded to 103-0341)

Note: Use when ordering parts for units with Serial Numbers from 102,000 thru 114,799.

$

$

Not available

1

Exmark 1-632422

1-631781
(Superseded to 1-631781)

Note: Use when ordering parts for units with Serial Numbers from 114,800 thru 114,999.

$

$

Not available

2

Exmark 1-811006

302-19
(Superseded to 302-19)

$2.49

$

In Stock, Qty 8

0

3

Exmark 1-632206

103-1502
(Superseded to 103-1502)

$

$

Not available

4

Exmark 1-373065

PAD,ANTI SKID

$

$

Not available

5

Exmark 1-632324

103-2084
(Superseded to 103-2084)

$77.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633295

GRIP-LEVER, LIFT

$7.99

$

In Stock, only 3 left!

0

7

Exmark 1-632219-03

109-0632
(Superseded to 109-0632)

$96.99

$

Usually ships in 3-6 days

0

8

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 1-805260

3256-4
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

10

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 14

0

11

Exmark 1-808505

32151-103
(Superseded to 32151-103)

$3.49

$

In Stock, Qty 7

0

12

Exmark 1-633068

ARM-LIFT, DECK

$11.99

$

Usually ships in 3-6 days

0

13

Exmark 1-806761

3272-10
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

14

Exmark 1-808284

PIN-CLEVIS

$3.49

$

In Stock, only 4 left!

0

15

Exmark 1-633072

1-631981
(Superseded to 1-631981)

$

$

Not available

16

Exmark 1-632195

1-631981
(Superseded to 1-631981)

$

$

Not available

17

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

18

Exmark 1-633080

BUSHING-LEVER, LIFT

$10.99

$

Usually ships in 3-6 days

0

19

Exmark 1-213060

DISCONTINUED (EXMARK)

$

$

Not available

20

Exmark 1-800298

323-12
(Superseded to 323-12)

$2.49

$

In Stock, Qty 12

0

21

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$23.99

$

In Stock, only 2 left!

0

Exmark 1-806005

PIN-COTTER

Note: (serv. only) (Not Shown)

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-800295

323-9
(Superseded to 323-9)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 14

0

24

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

26

Exmark 1-808500

32120-19
(Superseded to 32120-19)

Note: Use when ordering parts for units with Serial Numbers from 102,000 thru 114,799.

$2.99

$

In Stock, Qty 14

0

26

Exmark 1-808505

32151-103
(Superseded to 32151-103)

Note: Use when ordering parts for units with Serial Numbers from 114,800 thru 114,999.

$3.49

$

In Stock, Qty 7

0

27

Exmark 1-805267

3256-27
(Superseded to 3256-27)

Note: Use when ordering parts for units with Serial Numbers from 102,000 thru 114,799.

$2.99

$

In Stock, Qty 5

0

27

Exmark 1-805271

3256-29
(Superseded to 3256-29)

Note: Use when ordering parts for units with Serial Numbers from 114,800 thru 114,999.

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 1-633096

ROD-LIFT, DECK

$23.99

$

In Stock, only 3 left!

0

29

Exmark 1-804522

3217-11
(Superseded to 3217-11)

$3.49

$

In Stock, Qty 15

0

30

Exmark 1-633328

DISCONTINUED (EXMARK)

Note: Use when ordering parts for units with Serial Numbers from 102,000 thru 114,799.

$

$

Not available

30

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

Note: Use when ordering parts for units with Serial Numbers from 114,800 thru 114,999.

$27.99

$

Usually ships in 3-6 days

0

31

Exmark 1-805268

3256-7
(Superseded to 3256-7)

$1.99

$

In Stock, Qty 20+

0

32

Exmark 1-633064

SPRING-SUPPORT, DECK

$33.99

$

In Stock, only 1 left!

0

33

Exmark 1-633046

DISCONTINUED

Note: Use when ordering parts for units with Serial Numbers from 102,000 thru 114,799.

$

$

Not available

33

Exmark 1-633443

1-631585
(Superseded to 1-631585)

Note: Use when ordering parts for units with Serial Numbers from 114,800 thru 114,999.

$28.99

$

Usually ships in 3-6 days

0

34

Exmark 1-513649

CAP,GREASE

$11.99

$

Usually ships in 3-6 days

0

35

Exmark 1-808508

32151-36
(Superseded to 32151-36)

$4.99

$

In Stock, Qty 6

0

36

Exmark 1-513104

BEARING,FLANGED

$71.99

$

Usually ships in 3-6 days

0

37

Exmark 1-632006-01

WLD,CASTER

$

$

Not available

38

Exmark 1-804509

3217-9
(Superseded to 3217-9)

$0.99

$

In Stock, Qty 19

0

39

Exmark 1-805008

3253-7
(Superseded to 3253-7)

$1.49

$

In Stock, Qty 20+

0

40

Exmark 1-800339

325-36
(Superseded to 325-36)

$0.99

$

In Stock, Qty 20+

0

41

Exmark 1-632250

1-634662
(Superseded to 1-634662)

$246.99

$

In Stock, only 2 left!

0

42

Exmark 1-632050

SPACER WLDMT-WHEEL

$

$

Not available

43

Exmark 1-513009

1-631560
(Superseded to 1-631560)

$63.99

$

Usually ships in 3-6 days

0

44

Exmark 1-303327

98-5975
(Superseded to 98-5975)

$3.49

$

In Stock, Qty 20+

0

45

Exmark 1-800293

323-7
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

46

Exmark 1-633001

1-634662
(Superseded to 1-634662)

$246.99

$

In Stock, only 2 left!

0

Exmark 1-633002

TIRE

$99.99

$

Usually ships in 3-6 days

0

Exmark 1-633003

DISCONTINUED

$

$

Not available
