LZ25KC52 - Exmark 52" Lazer Z Zero-Turn Mower, 25hp Kohler (SN: 115000 - 129999) (1996) Engine Deck Group Parts Diagram

52" Lazer Z Zero-Turn Mower, 25hp Kohler

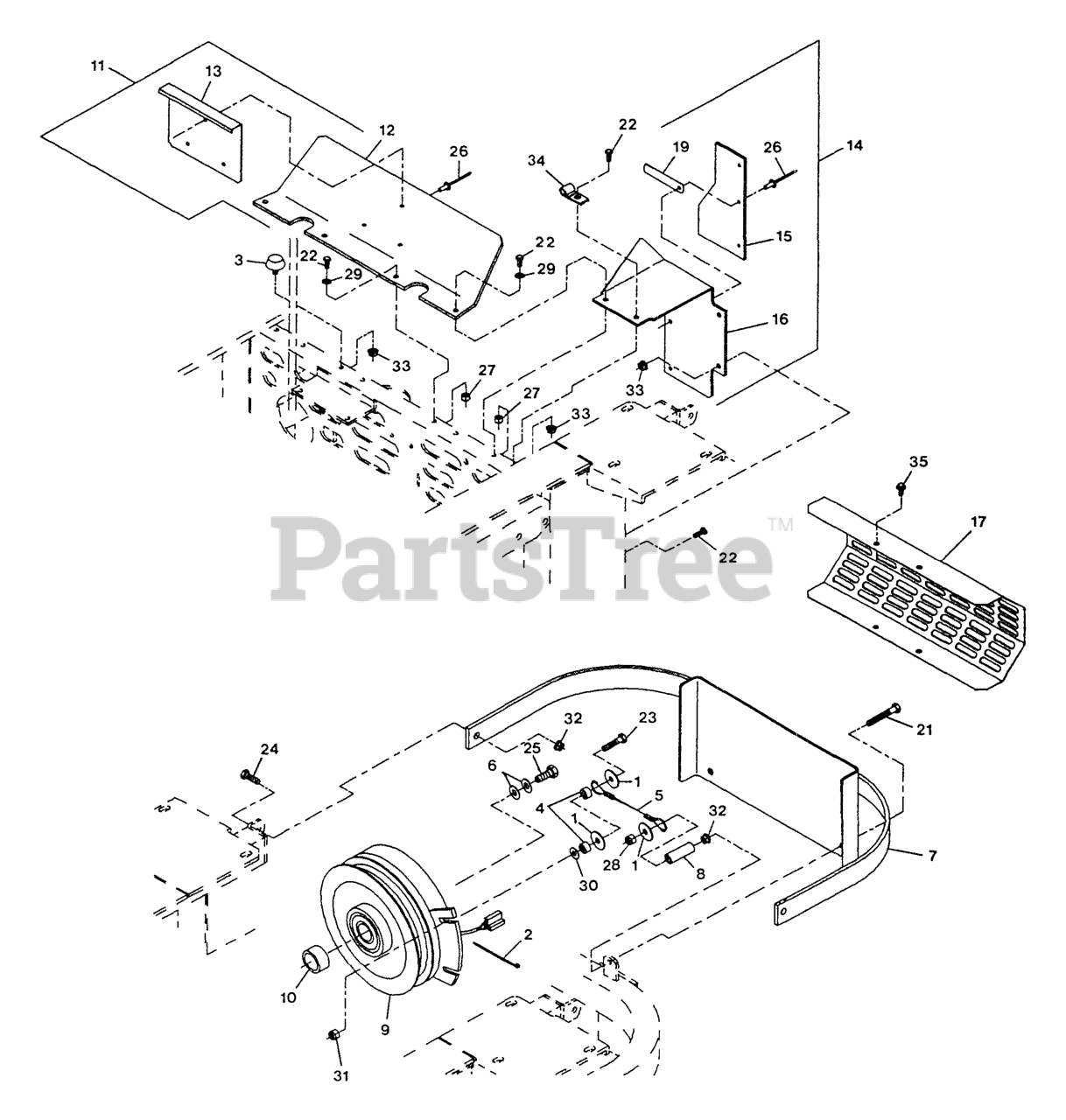

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-213069

WASHER

$2.99

$

In Stock, only 3 left!

0

2

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

3

Exmark 1-523420

109-2365

$14.99

$

Usually ships in 3-6 days

0

4

Exmark 1-543007

SPACER,CLUTCH ANCHOR

$8.49

$

In Stock, only 2 left!

0

5

Exmark 1-602974

DISCONTINUED

$

$

Not available

6

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 8

0

7

Exmark 1-632183

1-631800
(Superseded to 1-631800)

$

$

Not available

8

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 1-633098

103-0661
(Superseded to 103-0661)

Note: (Use with 22 HP Motor)

$503.99

$

In Stock, only 1 left!

0

Exmark 1-633099

103-0664
(Superseded to 103-0664)

Note: (Use with 25 HP Motor)

$619.99

$

Usually ships in 3-6 days

0

10

Exmark 1-633453

SPACER-CLUTCH

Note: (Use with 22 HP Motor)

$19.99

$

In Stock, only 2 left!

0

Exmark 1-633179

SPACER-CLUTCH

Note: (Use with 25 HP Motor)

$19.99

$

In Stock, Qty 5

0

11

Exmark 1-634308

1-644276
(Superseded to 1-644276)

$102.99

$

In Stock, only 1 left!

0

12

Exmark 1-633298

103-1308
(Superseded to 103-1308)

$29.99

$

In Stock, only 2 left!

0

13

Exmark 1-633300

Shield, Lift

$

$

Currently unavailable

14

Exmark 1-634309

1-634796
(Superseded to 1-634796)

$

$

Not available

15

Exmark 1-633301

SHIELD-ENGINE

$15.99

$

Usually ships in 3-6 days

0

16

Exmark 1-633305

1-634796
(Superseded to 1-634796)

$

$

Not available

17

Exmark 1-633337

1-631501
(Superseded to 1-631501)

$

$

Not available

18

Exmark 1-634310

1-644316
(Superseded to 1-644316)

Note: Not Illustrated.

$

$

Not available

19

Exmark 1-523285

CLIP-BAFFLE, REAR

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 1-633303

DISCONTINUED
(Superseded to 1-644316)

Note: Not Illustrated.

$

$

Not available

21

Exmark 1-800032

99-8664
(Superseded to 99-8664)

$2.99

$

In Stock, Qty 5

0

22

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

23

Exmark 1-800276

322-9
(Superseded to 322-9)

$3.49

$

In Stock, only 1 left!

0

24

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

25

Exmark 1-800819

3212-10
(Superseded to 3212-10)

Note: Use Pro-Lock, Nut Type (P/N 840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 1 left!

0

26

Exmark 1-803035

RIVET-POP

$1.49

$

In Stock, Qty 10

0

27

Exmark 1-804255

3296-42
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

28

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

29

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 1-805258

3256-3
(Superseded to 3256-3)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-809007

3290-357
(Superseded to 3290-357)

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

34

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

35

Exmark 1-809075

DISCONTINUED

$

$

Not available

Exmark 1205001

Engine Oil Filter

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 2408302

Air Precleaner (For 22 Hp Engine)

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 2408305

(For 25 Hp Engine)

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 4708303

Air Filter (For 22 Hp Engine)

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 2708303

(For 25 Hp Engine)

Note: Kohler Replacement Part; Refer to Engine Owner's Manual

$

$

Currently unavailable

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0
