Exmark LZ23KC605 - Exmark 60" Lazer Z Zero-Turn Mower, 23hp Kohler (SN: 670000 - 719999) (2007) Kohler EFI Fuel Group 28 HP Parts Lookup with Diagrams

1

Exmark 109-0897

DISCONTINUED

Note: Includes: tank, cap, fittings & studs. LH tank also includes fuel gauge.

$

Not available 

2

Exmark 103-4927

DISCONTINUED

Note: Includes: tank, cap, fittings & studs. LH tank also includes fuel gauge.

$

Not available 

3

Exmark 109-2070

Kit, Fuel Line W/Clamps

$

Currently unavailable 

4

Exmark 1-643277

CLAMP-HOSE, FUEL

Note: Clamps require special pliers Part No. 1-643394 (Oetiker Part No. 14100118 or Kohler Part No. 2445505) for installation.

$4.99

$

In Stock, only 3 left!

5

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

6

Exmark 1-603727

CLIP-LOOM

$2.99

$

Usually ships in 3-6 days

7

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

8

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

9

Exmark 1-643241

CLIP-LOOM

$18.99

$

Usually ships in 3-6 days

10

Kohler Part No. 24 050 03 Fuel Filter (Large)

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 40 Micron or smaller).

$

Not available 

11

Kohler Part No. 393 20 Fuel Pump

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 40 Micron or smaller).

$

Not available 

12

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

13

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

14

Exmark 109-2067

KIT,FUEL LINE EFI PUMP-RE

$69.99

$

Usually ships in 3-6 days

15

Kohler Part No. 24 403 17 Fuel Regulator

Note: Refer to Engine Owner's Manual (Fuel Filter Must be 40 Micron or smaller).

$

Not available 

16

Exmark 1-643293

CLAMP-HOSE, FUEL

Note: Clamps require special pliers Part No. 1-643394 (Oetiker Part No. 14100118 or Kohler Part No. 2445505) for installation.

$6.49

$

In Stock, Qty 6

17

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

18

Exmark 109-0285

HOSE-FUEL

$67.99

$

Usually ships in 3-6 days

19

Exmark 103-2595

CONNECTOR

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

28

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

29

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

30

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

31

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

In Stock, Qty 16

32

Exmark 1-633023

STUD

Note: Use Pro-lock, Retaining Type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

33

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

34

Exmark 3296-47

NUT-LOCK, NI

CONTROL-THROTTLE

$38.99

$

In Stock, only 1 left!

41

Exmark 109-2069

Kit, Fuel Line W/Clamps

$

Currently unavailable 

42

Exmark 32122-30

SCREW-PTH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 20+

43

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 20+

44

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

45

Exmark 109-4510

PANEL,CONTROL W/DECALS

$

Not available 

46

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

47

Exmark 103-6562

Kit, Gauge Fuel

$

Currently unavailable 

48

Exmark 103-6711

CLAMP

Note: Clamps require special pliers Part No. 1-643394 (Oetiker Part No. 14100118 or Kohler Part No. 2445505) for installation.

$

Not available 

49

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

50

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

51

Exmark 1-303335

TIE-PLASTIC

(Superseded to 3290-378) 

$0.99

$

In Stock, Qty 8

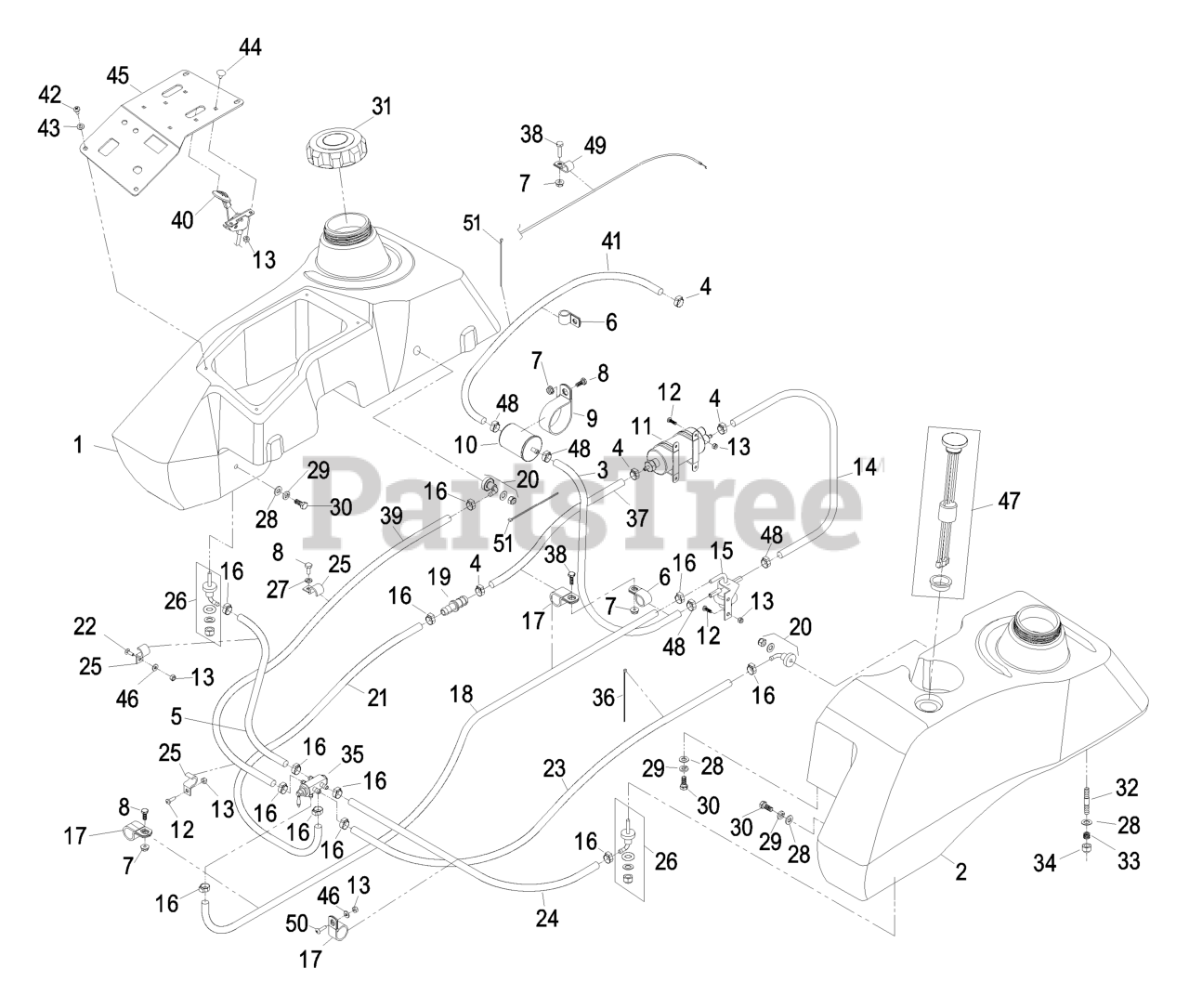

LZ23KC605 - Exmark 60" Lazer Z Zero-Turn Mower, 23hp Kohler (SN: 670000 - 719999) (2007) Kohler EFI Fuel Group 28 HP Parts Diagram

Kohler EFI Fuel Group 28 HP Parts Diagram
