LZ23KC604AS - Exmark 60" Lazer Z AS Zero-Turn Mower, 23hp Kohler (SN: 440000 - 509999) (2004) Motion Control Group Parts Diagram

60" Lazer Z AS Zero-Turn Mower, 23hp Kohler

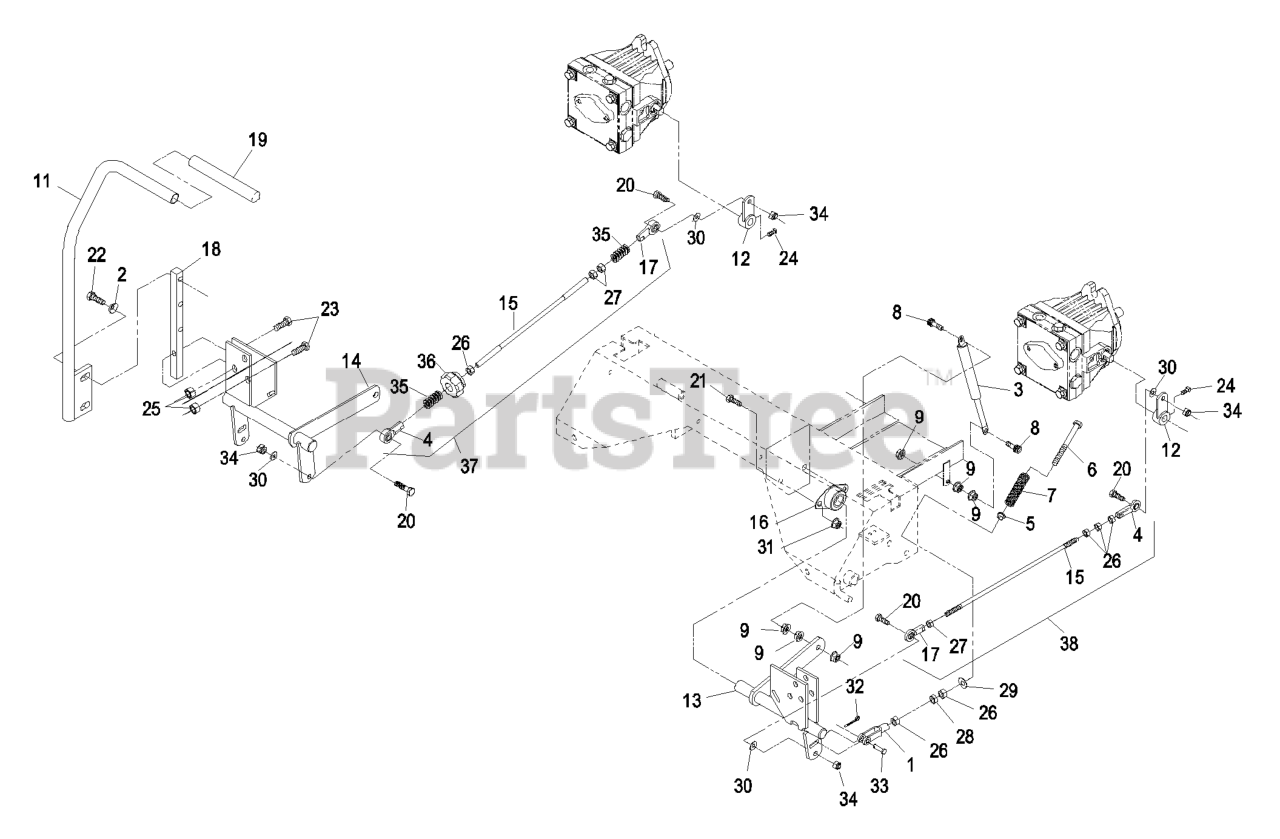

Motion Control Group Parts Diagram

  • Title

1

Exmark 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

2

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-4079

109-2339
(Superseded to 109-2339)

$82.99

$

In Stock, Qty 7

0

4

Exmark 1-543017

BALLJOINT-RH

$20.99

$

In Stock, only 4 left!

0

5

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, only 4 left!

0

6

Exmark 1-603737

BOLT-RETURN, NEUTRAL

$9.49

$

In Stock, only 2 left!

0

7

Exmark 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 17

0

8

Exmark 1-403180

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

10

Exmark 103-0631

LH LEVER ASM

Note: Not Illustrated.

$93.99

$

Usually ships in 3-6 days

0

11

Exmark 103-0632

RH LEVER ASM

$93.99

$

Usually ships in 3-6 days

0

12

Exmark 1-632208

ARM-CONTROL, PUMP

$27.99

$

In Stock, Qty 20+

0

13

Exmark 103-4781

109-3902
(Superseded to 109-3902)

$106.99

$

Usually ships in 3-6 days

0

14

Exmark 103-4782

109-3907
(Superseded to 109-3907)

$120.99

$

Usually ships in 3-6 days

0

15

Exmark 103-3064

LINK-ROD, TRACKING

$26.99

$

In Stock, only 1 left!

0

16

Exmark 1-633102

BEARING-FLANGE, SIDE

$18.99

$

In Stock, only 2 left!

0

17

Exmark 1-633152

BALLJOINT-LH

$20.99

$

In Stock, only 3 left!

0

18

Exmark 103-0407

ARM-SHAFT, CONTROL

$29.99

$

In Stock, only 2 left!

0

19

Exmark 1-633257

GRIP-CONTROL, MOTION

$14.99

$

In Stock, only 4 left!

0

20

Exmark 322-6

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

21

Exmark 323-4

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

22

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

23

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-803022

SCREW-SET

Note: Use Pro-lock, Nut type (P/N 1-840022), .5ml tube on setscrews.

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

26

Exmark 3219-2

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

27

Exmark 1-804524

NUT

$2.99

$

In Stock, only 2 left!

0

28

Exmark 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

29

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3272-5

PIN-COTTER

$1.49

$

In Stock, Qty 5

0

33

Exmark 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

34

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Exmark 1-323245

SPRING-COMPRESSION

$6.49

$

In Stock, only 2 left!

0

36

Exmark 103-3060

KNOB-TRACKING

$6.99

$

In Stock, only 2 left!

0

37

Exmark 103-4330

TRACKING ROD ASM

$80.99

$

Usually ships in 3-6 days

0

38

Exmark 103-4332

BRAKE ROD AND YOKE ASM

$49.99

$

Usually ships in 3-6 days

0
