LZ22KC603 - Exmark 60" Lazer Z Zero-Turn Mower, 22hp Kohler (SN: 130000 - 149999) (1997) Fuel Group Parts Diagram

60" Lazer Z Zero-Turn Mower, 22hp Kohler

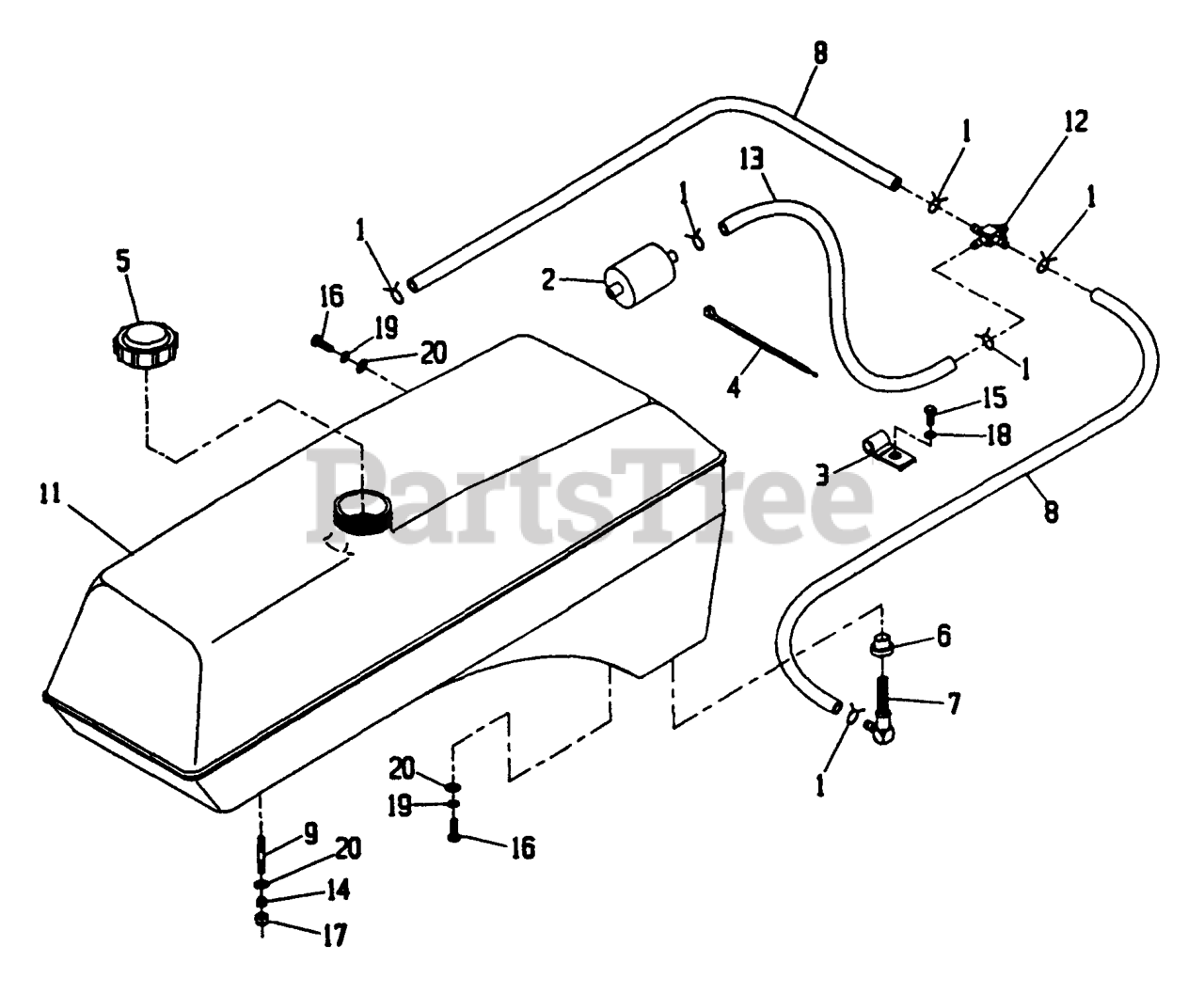

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Exmark 2405002

Fuel Filter

Note: Kohler Part No. Refer to engine owner's manual (fuel filter must be 15 Micron or smaller).

$

$

Currently unavailable

3

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

4

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

5

Exmark 1-513508

CAP-FUEL

$27.99

$

In Stock, only 1 left!

0

6

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 17

0

7

Exmark 1-543277

ELBOW-TANK, FUEL

$11.99

$

In Stock, Qty 7

0

8

Exmark 1-543456

HOSE-FUEL

$

$

Not available

9

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining Type (P/N 840023) on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

0

10

Exmark 1-633296

103-5480
(Superseded to 103-5480)

Note: Not illustrated.

$

$

Not available

11

Exmark 1-633297

103-5481
(Superseded to 103-5481)

$

$

Not available

12

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

13

Exmark 1-633348

109-0307
(Superseded to 109-0307)

$21.99

$

In Stock, only 1 left!

0

14

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

15

Exmark 1-800251

321-3
(Superseded to 321-3)

$1.49

$

In Stock, Qty 20+

0

16

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 16

0

17

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

19

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

20

Exmark 1-805256

3256-2
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

Exmark 1-840023

PRO-LOCK-RETAINING 1

$18.99

$

In Stock, only 1 left!

0
