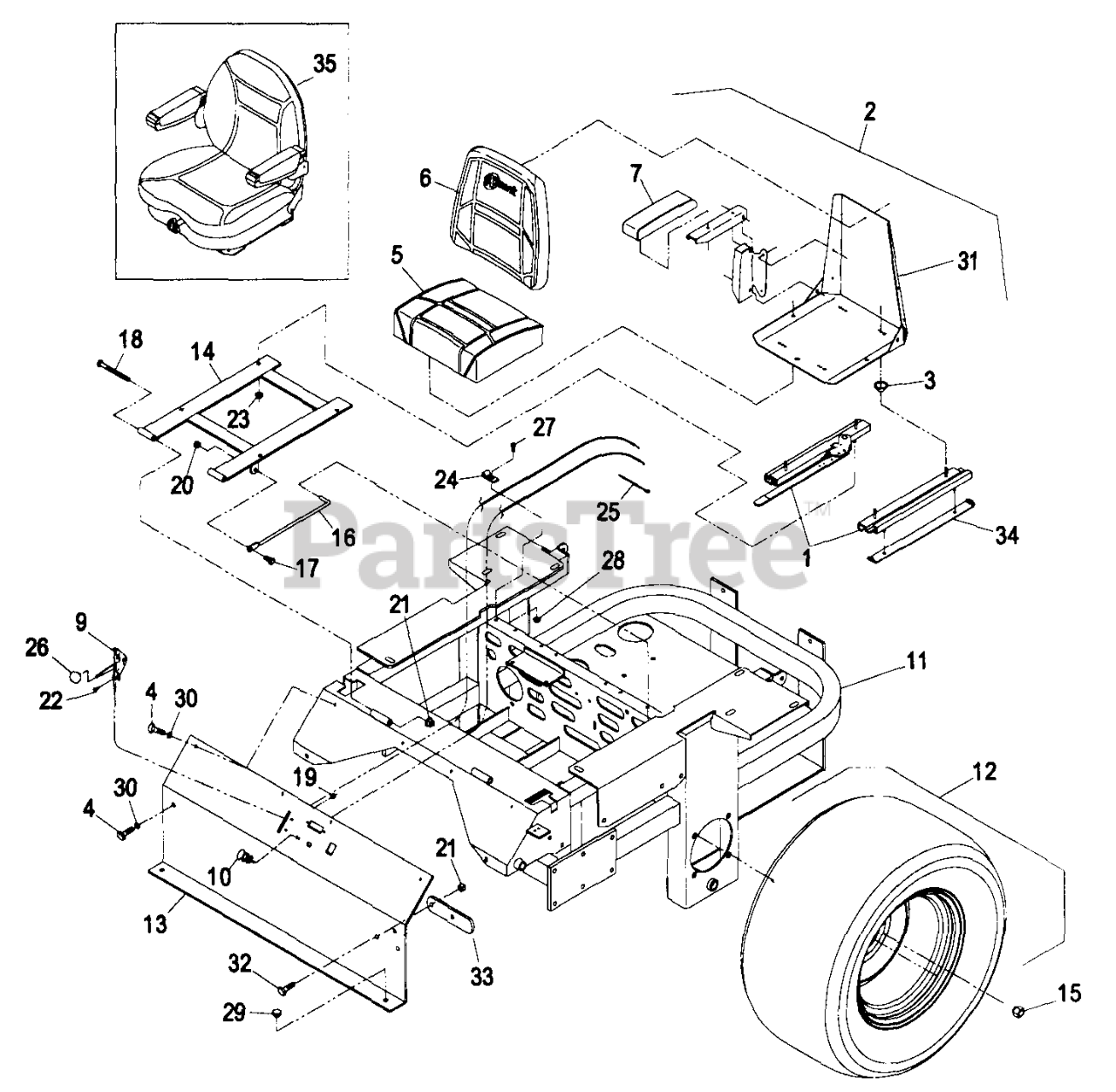

LZ22KC523 - Exmark 52" Lazer Z Zero-Turn Mower, 22hp Kohler (SN: 190000 - 219999) (1999) Main Frame Group Parts Diagram

52" Lazer Z Zero-Turn Mower, 22hp Kohler

Main Frame Group Parts Diagram

  • Title

1

Exmark 1-643255

TRACK-SEAT

$200.99

$

In Stock, only 2 left!

0

2

Exmark 1-633461

103-3524
(Superseded to 103-3524)

Note: (All units except 26hp Koh)

$679.99

$

In Stock, only 1 left!

0

3

Exmark 1-543401

SPACER-TRACK

$5.49

$

In Stock, Qty 8

0

4

Exmark 1-800271

322-3
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

5

Exmark 1-543407

103-3521
(Superseded to 103-3521)

$264.99

$

In Stock, Qty 5

0

6

Exmark 1-543408

103-3520
(Superseded to 103-3520)

$232.99

$

In Stock, only 2 left!

0

7

Exmark 1-543409

103-0292
(Superseded to 103-0292)

$97.99

$

In Stock, only 2 left!

0

8

Exmark 1-543411

103-0291
(Superseded to 103-0291)

Note: (Not Illustrated)

$97.99

$

In Stock, only 4 left!

0

9

Exmark 1-633696

THROTTLE CABLE ASM

$59.99

$

In Stock, only 4 left!

0

10

Exmark 1-603336

CONTROL-CHOKE

$38.99

$

In Stock, only 3 left!

0

11

Exmark 1-632923

103-2175
(Superseded to 103-2175)

$2038.99

$

Usually ships in 3-6 days

0

12

Exmark 1-633970

109-8972
(Superseded to 109-8972)

$442.99

$

Usually ships in 3-6 days

0

Exmark 1-633993

TIRE

$330.99

$

Usually ships in 3-6 days

0

Exmark 1-633992

109-3156
(Superseded to 109-3156)

$249.99

$

In Stock, Qty 10

0

Exmark 1-653010

WHEEL AND TIRE ASM

$518.99

$

Usually ships in 3-6 days

0

Exmark 1-653160

TIRE
(Superseded to 135-2216)

$226.99

$

Usually ships in 3-6 days

0

Exmark 1-653158

WHEEL

$185.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633965-03

Front, Console

$

$

Currently unavailable

14

Exmark 1-632187-03

107-3052-03
(Superseded to 107-3052-03)

$347.99

$

Usually ships in 3-6 days

0

15

Exmark 1-513011

242-50
(Superseded to 242-50)

Note: Some units have hubs w/studs installed and require wheel nuts, some units have hubs w/o studs and require wheel bolts.

$1.99

$

In Stock, Qty 20+

0

Exmark 1-633273

WHEEL BOLT

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 1-633293

ROD-HOLDUP, SEAT

$14.99

$

Usually ships in 3-6 days

0

17

Exmark 1-800273

322-5
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

18

Exmark 1-800306

323-39
(Superseded to 323-39)

$11.99

$

In Stock, Qty 20+

0

19

Exmark 1-804252

3296-2
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

20

Exmark 1-804256

3296-29
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 18

0

21

Exmark 1-804257

3296-39
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

22

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

23

Exmark 1-809001

32128-20
(Superseded to 32128-20)

$1.49

$

In Stock, Qty 20+

0

24

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

25

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

26

Exmark 1-513592

KNOB-BALL

$6.49

$

In Stock, Qty 10

0

27

Exmark 1-800252

321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

28

Exmark 1-809012

32128-33
(Superseded to 32128-33)

$0.99

$

In Stock, Qty 6

0

29

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 11

0

30

Exmark 1-805257

3256-23
(Superseded to 3256-23)

$2.49

$

In Stock, Qty 20+

0

31

Exmark 1-633859

FRAME-SEAT

$196.99

$

In Stock, only 3 left!

0

32

Exmark 1-800292

323-6
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

33

Exmark 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

34

Exmark 1-633872-03

STOP-SEAT

Note: (26hp Koh & 22hp Kaw)

$46.99

$

Usually ships in 3-6 days

0

35

Exmark 1-633821

DISCONTINUED (EXMARK)

Note: (26hp Koh only)

$

$

Not available

Exmark 1-631845

SEAT PAN ASM

$

$

Not available

Exmark 1-631844

ARMREST KIT

$525.99

$

Usually ships in 3-6 days

0

Exmark 1-631843

BOOT KIT

$

$

Not available

Exmark 1-631842

ARMREST PAD KIT

$225.99

$

Usually ships in 3-6 days

0

Exmark 1-631846

Kit, Damper W/Hardware

$

$

Not available

Exmark 1-631847

ROLLER KIT

$

$

Not available

Exmark 1-631848

SPRING AND CABLE KIT

$157.99

$

In Stock, only 1 left!

0

Exmark 1-631849

KNOB AND SHAFT KIT

$

$

Not available

Exmark 1-643281

SWITCH-SEAT

$54.99

$

Usually ships in 3-6 days

0
