LZ20KC524 - Exmark 52" Lazer Z Zero-Turn Mower, 20hp Kohler (SN: 320000 - 369999) (2002) 52" Deck Group Parts Diagram

52" Lazer Z Zero-Turn Mower, 20hp Kohler

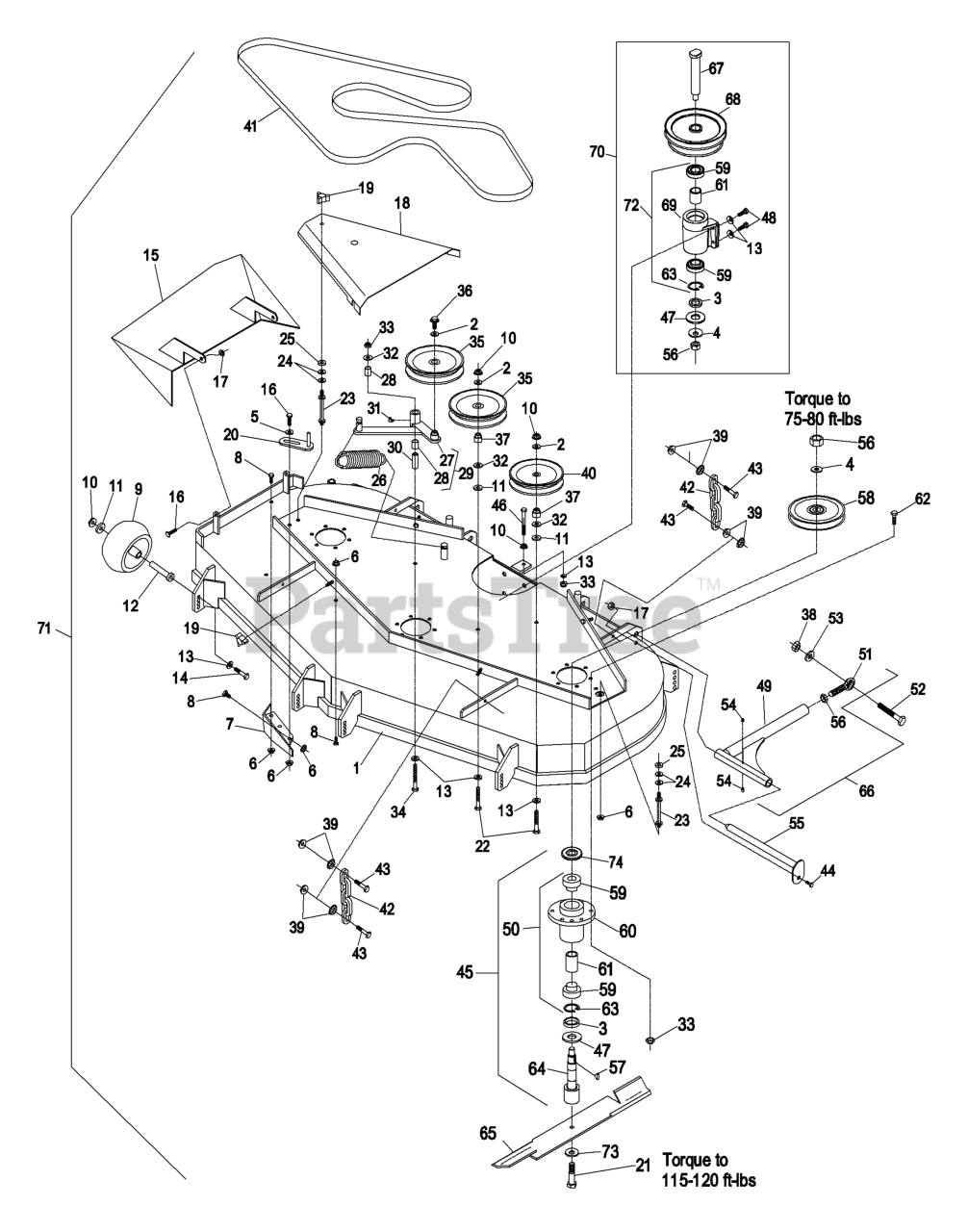

52" Deck Group Parts Diagram

  • Title

1

Exmark 103-0332-01

Deck Wldmt, 52"

$

$

Currently unavailable

Exmark 103-0675

103-3183
(Superseded to 103-3183)

$

$

Not available

2

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

3

Exmark 1-323533

SPACER-PULLEY/BEARING

$5.49

$

In Stock, Qty 11

0

4

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

5

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

6

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

7

Exmark 1-602913-01

WLD,BAFFLE DISCHARGE

$46.99

$

In Stock, only 4 left!

0

8

Exmark 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

0

9

Exmark 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

10

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

11

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-603602

BUSHING-ROLLER

$23.99

$

In Stock, only 3 left!

0

13

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

14

Exmark 98-5961

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

15

Exmark 103-0345-01

103-5870-01
(Superseded to 103-5870-01)

$129.99

$

Usually ships in 3-6 days

0

16

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

17

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 1-633357-01

SHIELD,BELT 52

$94.99

$

Usually ships in 3-6 days

0

19

Exmark 1-323385

KNOB-3 PRONG

$5.49

$

In Stock, Qty 20+

0

20

Exmark 1-322110

GUIDE-BELT

$12.99

$

In Stock, Qty 8

0

21

Exmark 103-0862

SCREW-CAP

$5.99

$

In Stock, Qty 18

0

22

Exmark 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

23

Exmark 1-303537

STUD-SHIELD, BELT (SHORT)

$6.49

$

In Stock, Qty 20+

0

24

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 1-323417

WASHER

$3.49

$

In Stock, Qty 20+

0

26

Exmark 1-633151

116-6317
(Superseded to 116-6317)

$28.99

$

In Stock, Qty 7

0

27

Exmark 1-632119-03

103-5693
(Superseded to 103-5693)

$136.99

$

In Stock, only 3 left!

0

28

Exmark 1-513034

SLEEVE-BEARING

$7.49

$

In Stock, Qty 20+

0

29

Exmark 1-634244

103-5693
(Superseded to 103-5693)

$136.99

$

In Stock, only 3 left!

0

30

Exmark 1-603044

BUSHING

$14.99

$

In Stock, only 4 left!

0

31

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

32

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

33

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

34

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

35

Exmark 1-633109

126-7685
(Superseded to 126-7685)

$62.99

$

In Stock, Qty 7

0

36

Exmark 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

37

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

38

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

39

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

40

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

41

Exmark 1-633366

BELT,BLADE DRIVE 52
(Superseded to 1-633366-SL)

$111.99

$

In Stock, Qty 7

0

42

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

43

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

44

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

45

Exmark 103-1140

ASM,SPINDLE HSG COMPLETE

Note: Also includes items 4, 21, 56, 58 and 73.

$547.99

$

Usually ships in 3-6 days

0

46

Exmark 323-20

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

47

Exmark 1-633573

GUARD-BEARING, BOTTOM

$5.49

$

In Stock, Qty 8

0

48

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

49

Exmark 103-1072-01

109-1181
(Superseded to 109-1181)

$103.99

$

In Stock, Qty 9

0

50

Exmark 1-634619

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

51

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

52

Exmark 327-11

SCREW-HH

$11.99

$

In Stock, Qty 11

0

53

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

54

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

55

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

56

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

57

Exmark 3257-32

KEY-WOODRUFF

Note: This component is required if the keyway on the spindle for your unit is for a woodruff key.

$2.99

$

In Stock, Qty 11

0

Exmark 10-8040

KEY-SQUARE

Note: This component is required if the keyway on the spindle for your unit is for a square key.

$2.99

$

In Stock, Qty 17

0

58

Exmark 1-633701

SHEAVE,BLADE DRIVE

$81.99

$

In Stock, only 1 left!

0

59

Exmark 1-513016

BEARING

$82.99

$

In Stock, Qty 20+

0

60

Exmark 1-323532

103-8280
(Superseded to 103-8280)

$254.99

$

In Stock, only 3 left!

0

61

Exmark 1-323528

SPACER-BEARING

$9.49

$

In Stock, Qty 13

0

62

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

63

Exmark 32120-8

RING-SNAP

$2.99

$

In Stock, Qty 16

0

64

Exmark 103-0584

103-2532
(Superseded to 103-2532)

Note: This component is required if the keyway on the spindle for your unit is for a woodruff key.

$130.99

$

In Stock, only 2 left!

0

Exmark 103-2326

SPINDLE,SHORT

Note: This component is required if the keyway on the spindle for your unit is for a square key.

$121.99

$

Usually ships in 3-6 days

0

65

Exmark 1-633482

103-6584-S
(Superseded to 103-6584-S)

$31.99

$

In Stock, Qty 5

0

Exmark 1-613251

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

Exmark 1-633485

103-6580-S
(Superseded to 103-6580-S)

$34.99

$

In Stock, Qty 13

0

Exmark 1-633484

103-6582-S
(Superseded to 103-6582-S)

Note: Requires installation of Micro-Mulch accessory for proper mulching. Mulch kit P/N MK524

$31.99

$

In Stock, Qty 20+

0

Exmark 103-1578

103-1578-S
(Superseded to 103-1578-S)

$37.99

$

In Stock, only 3 left!

0

66

Exmark 103-1081

STRUT ASM

$264.99

$

In Stock, only 1 left!

0

67

Exmark 1-643393

JACKSHAFT

$33.99

$

Usually ships in 3-6 days

0

68

Exmark 103-0135

SHEAVE,JACKSHAFT-DOUBLE

$

$

Not available

69

Exmark 103-0280

103-9746
(Superseded to 103-9746)

$263.99

$

In Stock, only 1 left!

0

70

Exmark 103-0698

ASM,JCKSHFT KIT 52 3600

$696.99

$

Usually ships in 3-6 days

0

71

Exmark 103-0678

Complete Deck Asy

$

$

Currently unavailable

72

Exmark 103-1192

103-2571
(Superseded to 103-2571)

$331.99

$

Usually ships in 3-6 days

0

73

Exmark 103-0865

WASHER-BLADE BOLT, HEAVY

$5.99

$

In Stock, Qty 18

0

74

Exmark 103-1331

GUARD,BEARING TOP .880

$5.99

$

In Stock, only 1 left!

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark MK524

Mulch Kit

$

$

Currently unavailable
