LZ 7230 TXPKOA (968999314) - Husqvarna 72" Zero-Turn Mower (2007-04) Parking Brake Parts Diagram

72" Zero-Turn Mower

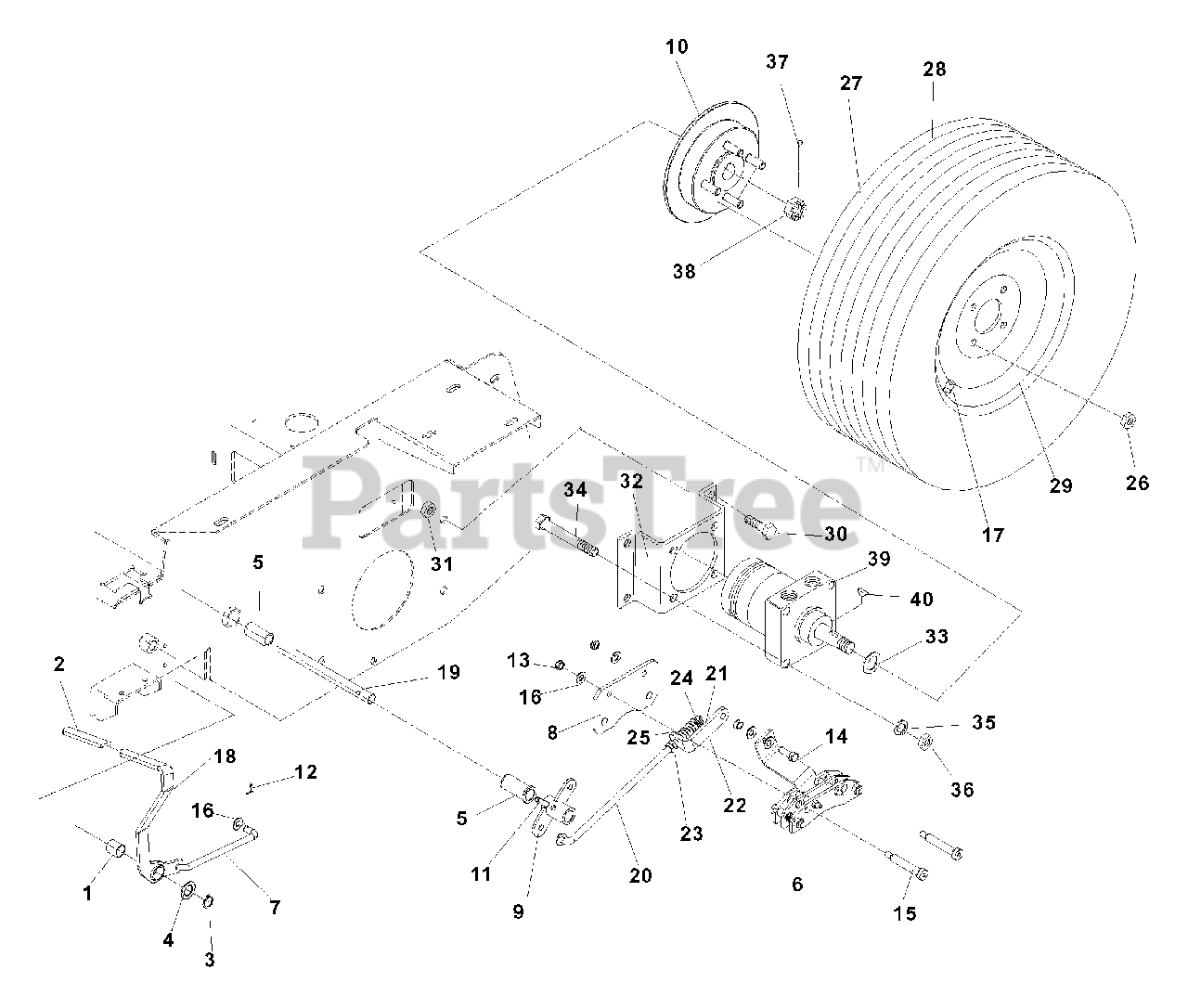

Parking Brake Parts Diagram

  • Title

1

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539105036

GRIP

$6.49

$

In Stock, only 2 left!

0

3

Husqvarna 539101151

RING, RETAINING, 7/8

$

$

Not available

4

Husqvarna 539923787

BUSHING, MACHINE

$3.99

$

In Stock, only 1 left!

0

5

Husqvarna 539113479

BUSHING, POLYMER, 3/4 x 2

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539113944

CALIPER
(Superseded to 539133047)

$120.99

$

In Stock, only 2 left!

0

7

Husqvarna 539113947

LINKAGE, BRAKE

$6.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539113948

PLATE, BRAKE

$21.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539113946

BELLCRANK, BRAKE

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113945

HUB

$182.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110631

PIN, ROLL, 5/16" DIA.

$3.99

$

In Stock, Qty 16

0

12

Husqvarna 539990037

PIN, COTTER, 3/32 x 3/4

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539200282

NUT, 3/8 -16, JAM, NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

14

Husqvarna 539990563

HCS, 3/8 -16 x 1, GR5

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539113951

SB, 3/8 -16 x 2 1/2 , SKT HD

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539990122

WASHER, 3/8, SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539912234

VALVE STEM

$6.49

$

In Stock, Qty 20+

0

18

Husqvarna 539108616

BRAKE LEVER

$54.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539110624

SHAFT, CROSS

$34.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539113949

LINKAGE, REAR BRAKE

$10.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990289

NUT, 3/8 -24, CTR LK, GR5

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539113950

BRACKET, L

$15.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108732

NUT, 3/8 -24, JAM

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990122

WASHER, 3/8 , SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539101173

NUT, LUG, 1/2F

$

$

Not available

27

Husqvarna 539105486

TIRE, COMPLETE, 61" & 72"

$433.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539112592

TIRE, COMPLETE, 52"

$

$

Not available

28

Husqvarna 539105152

TIRE, 24 x 12.0-12

$278.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539112599

TIRE, 23 x 9.5-12

$194.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539105487

RIM, 2 1/2"

$182.99

$

In Stock, only 1 left!

0

29

Husqvarna 539111149

RIM, OFFSET 1"

$

$

Not available

30

Husqvarna 539990622

HFCS, 1/2C x 1 1/4

$4.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 539104327

STANDOFF, WHEEL MOTOR

$84.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539916561

BUSHING, MACHINE, 1"

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101332

HCS, 1/2 -13 x 2 3/4, GR5

$5.99

$

In Stock, only 3 left!

0

35

Husqvarna 539990254

LOCKWASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539990258

NUT, 1/2 -13

$4.99

$

In Stock, Qty 14

0

37

Husqvarna 539104288

PIN, COTTER

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539105277

CASTLE NUT

$10.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539110823

WHEEL MOTOR, TL15

$1139.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539105278

KEY, WOODRUFF

$4.99

$

Usually ships in 3-10 days

0
