LZ 7230 TXPKOA (968999314) - Husqvarna 72" Zero-Turn Mower (2007-04) Chassis / Frame (Part 1) Parts Diagram

72" Zero-Turn Mower

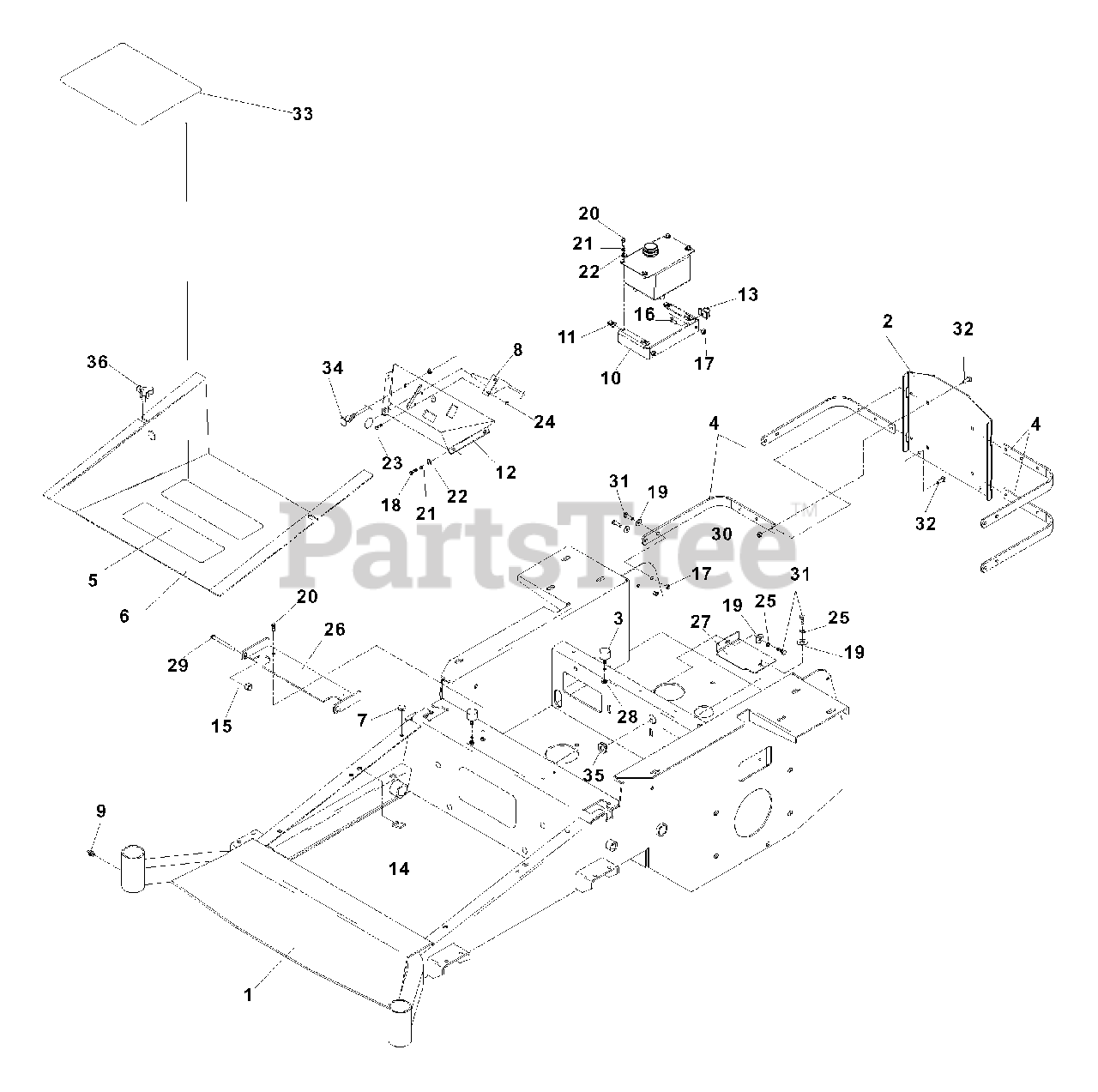

Chassis / Frame (Part 1) Parts Diagram

  • Title

1

Husqvarna 539111143

FRAME/DECALS, 52"/61"

$

$

Not available

1

Husqvarna 539111144

FRAME/DECALS, 72"

$1322.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539110976

XP GUARD

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539106961

STRAP

$21.99

$

In Stock, only 1 left!

0

5

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539111574

FOOT PLATE

$188.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

8

Husqvarna 539102732

THROTTLE CABLE

$

$

Not available

9

Husqvarna 539101474

ZERK, DRIVE IN

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539110814

TANK MOUNT

$18.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110813

"U" TYPE, 1/4C, RETAINER

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539111147

CONSOLE W/DECAL

$51.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539110815

PUSH MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

14

Husqvarna 539104763

"U" CLIP, 5/16 C

$6.49

$

In Stock, Qty 12

0

15

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539976934

HCS, 5/16 C x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990717

NUT, 5/16 C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 539990362

TFS, 1/4C x 5/8

$4.99

$

In Stock, Qty 12

0

19

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539990580

HCS, 1/4C x 3/4

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990052

LOCKWASHER, 1/4

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990598

WASHER, 1/4

$

$

Not available

23

Husqvarna 539990411

HCS, #10-24 x 1/2

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976977

NUT, #10-24, NYLOC

$

$

Not available

25

Husqvarna 539990187

LOCKWASHER, 5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 539105038

SEAT BRACKET
(Superseded to 539105224)

$30.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105716

IDLER COVER

$

$

Not available

28

Husqvarna 539976978

NUT, 1/4C, NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

29

Husqvarna 539102612

HCS, 3/8 C x 2 3/4

$5.99

$

In Stock, only 3 left!

0

30

Husqvarna 539990184

NUT, 5/16C, CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990209

HCS, 5/16C x 1

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990316

RHSSNB, 5/16 C x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539112654

FLOOR PAN PAD MODELS 968999309,968999311, 968999314 ONLY

$84.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539102733

CHOKE CONTROL, NOT USED ON EFI MODELS

$56.99

$

In Stock, Qty 5

0

35

Husqvarna 539110433

GROMMET

$4.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

Husqvarna 539112656

FOOT REST PAD MODELS 968999309,968999311, 968999314

Note: NOT SHOWN

$42.99

$

Usually ships in 3-10 days

0
