LZ 7230 TXPKOA (968999314) - Husqvarna 72" Zero-Turn Mower (2006-02) Front Deck Assembly 72" (Part 2) Parts Diagram

72" Zero-Turn Mower

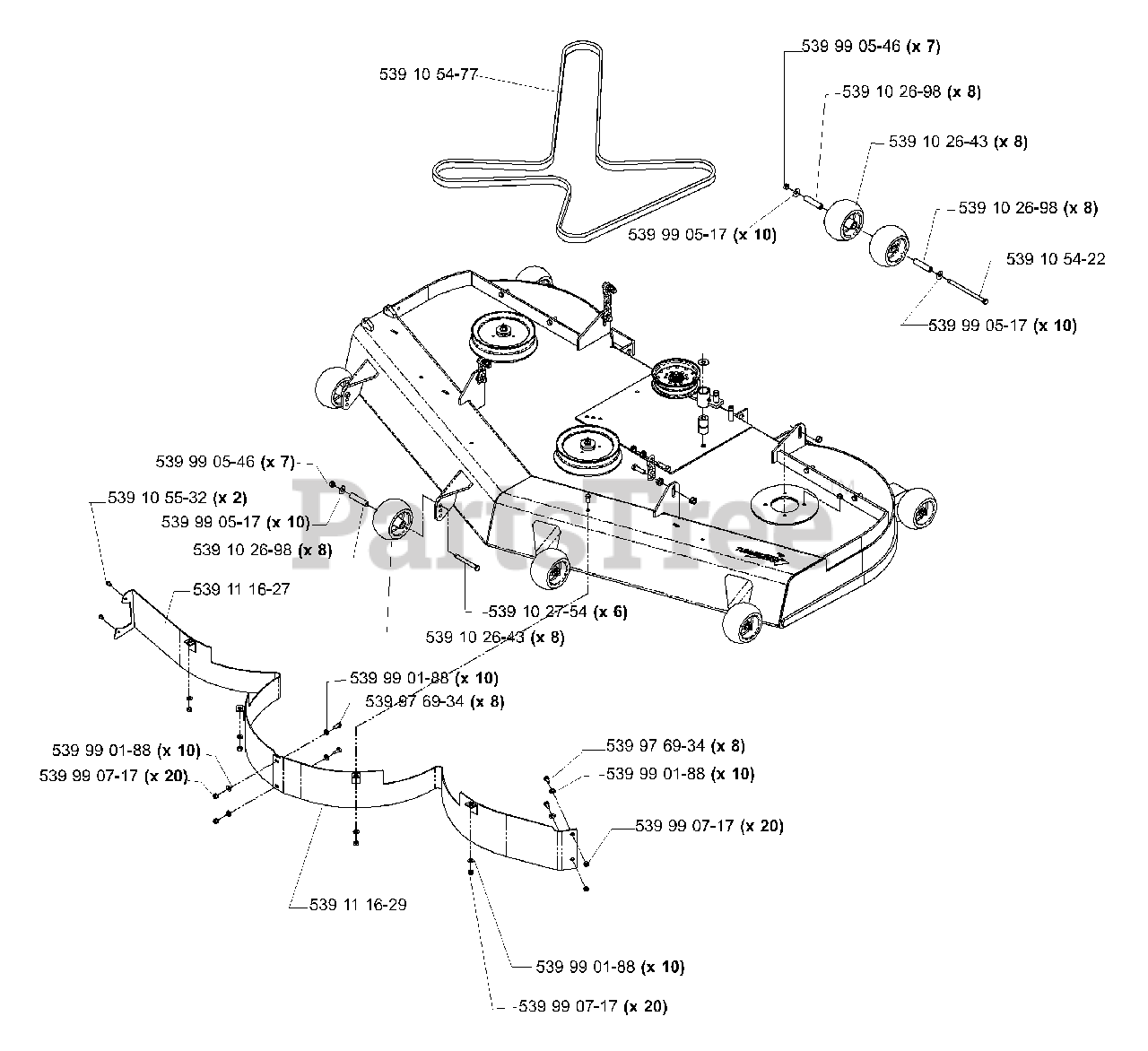

Front Deck Assembly 72" (Part 2) Parts Diagram

  • Title

539102643

Husqvarna 539102643

ANTI-SCALP ROLLER

$

$

Not available

539102698

Husqvarna 539102698

BUSHING

$

$

Not available

539102754

Husqvarna 539102754

HCS 3/8C X 3 1/2

$4.99

$

In Stock, Qty 13

0

539105422

Husqvarna 539105422

BOLT 3/8 X 6" GRD 8

$4.99

$

Usually ships in 3-10 days

0

539105477

Husqvarna 539105477

BELT, DECK 72"

$

$

Not available

539105532

Husqvarna 539105532

HEX CAP SCREW 1/4

$3.99

$

Usually ships in 3-10 days

0

539111627

Husqvarna 539111627

72 FRONT BAFFLE RH WLDT

$339.99

$

Usually ships in 3-10 days

0

539111629

Husqvarna 539111629

72 FRONT BAFFLE LH WLDT

$339.99

$

Usually ships in 3-10 days

0

539976934

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

539990188

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539990517

Husqvarna 539990517

RP WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539990546

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

539990717

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0
