LZ 7230 C (968999753) - Husqvarna 72" Zero-Turn Mower (2007-12) Electrical/See S/N break Parts Diagram

72" Zero-Turn Mower

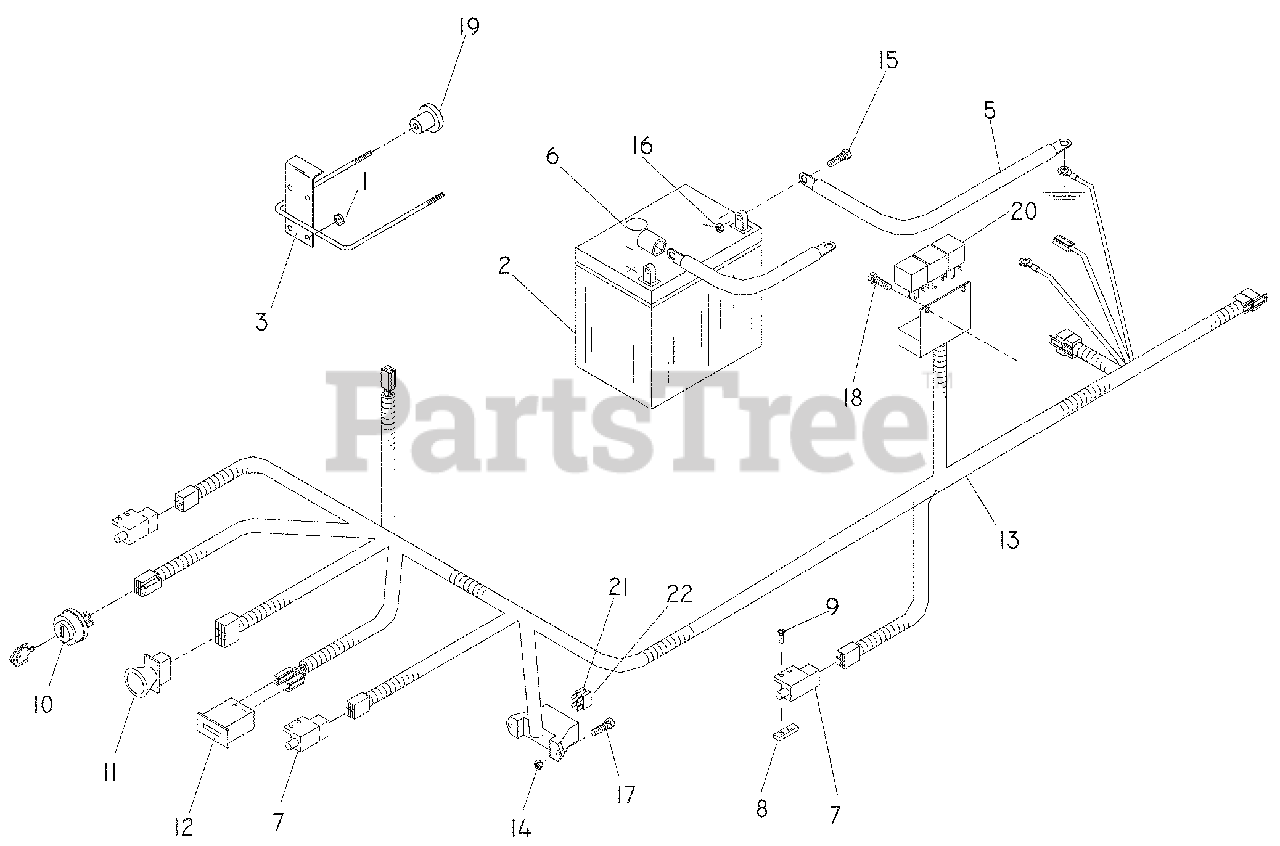

Electrical/See S/N break Parts Diagram

  • Title

1

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

2

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

3

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

4

Husqvarna 539104974

CABLE, POSITIVE

$

$

Not available

5

Husqvarna 539102758

CABLE, NEGATIVE

$

$

Not available

6

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102678

SCREW PLATE

$15.99

$

In Stock, Qty 9

0

9

Husqvarna 539976952

SCREW, 10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

10

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

11

Husqvarna 539131627

SWITCH, BLADE
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

12

Husqvarna 539110074

METER, HOUR
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

13

Husqvarna 539110950

HARNESS, FRAME

$

$

Not available

14

Husqvarna 539976977

NUT 10-24, NYLOC

$

$

Not available

15

Husqvarna 539976934

HCS, 5/16 -18 X ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539102617

SCREW, 10-24 x 7/8

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 539991034

SCREW, SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

21

Husqvarna 539101771

FUSE, 7.5 AMP 32V ATO

$

$

Not available

22

Husqvarna 539102086

FUSE, 20 AMP, 32V, ATO

$

$

Not available
