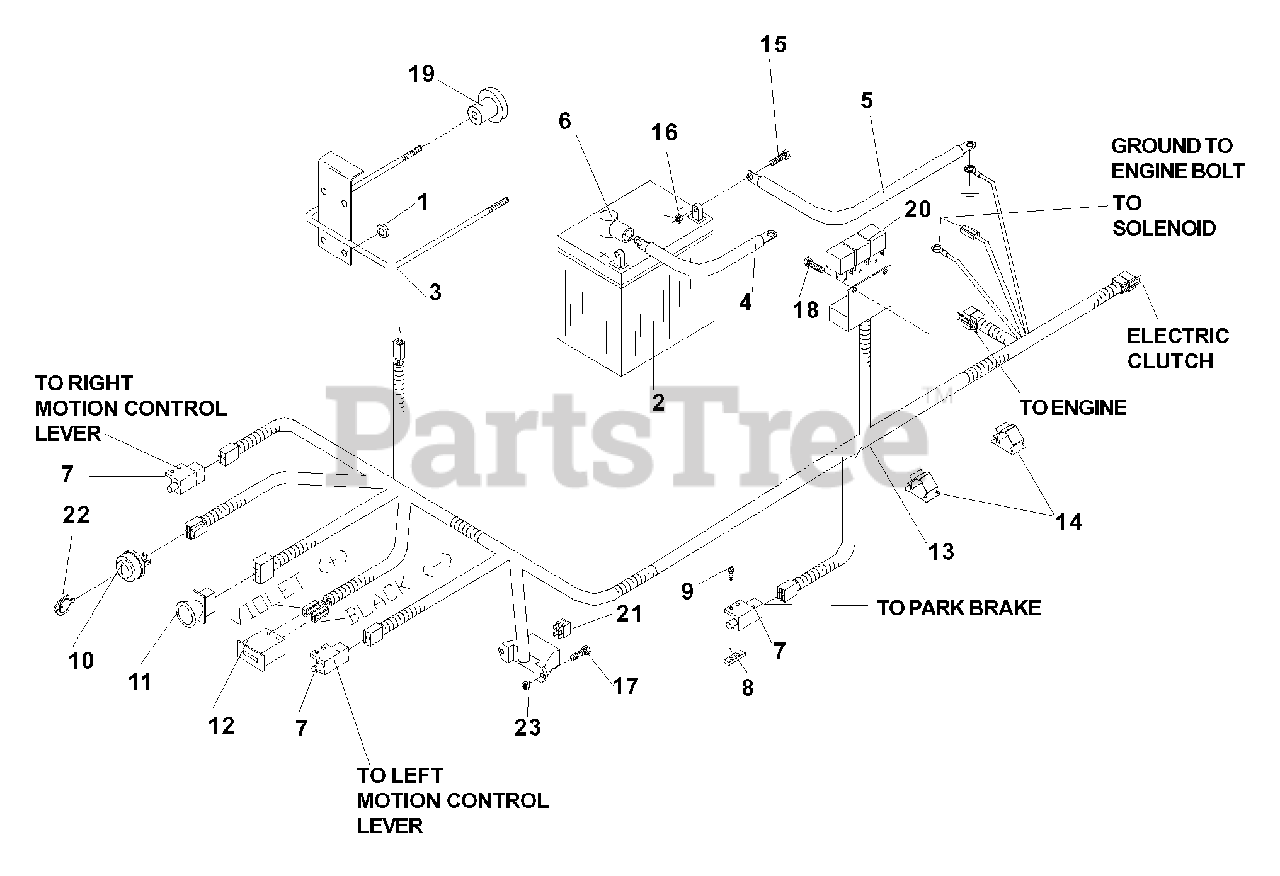

LZ 6130 TXPKOA (968999311) - Husqvarna 61" Zero-Turn Mower (2007-04) Electrical Parts Diagram

61" Zero-Turn Mower

Electrical Parts Diagram

  • Title

1

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

2

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

3

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

4

Husqvarna 539104974

CABLE, POSITIVE, LONG

$

$

Not available

5

Husqvarna 539102758

CABLE, NEGATIVE

$

$

Not available

6

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

7

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539102678

PLATE, TAPPED

$15.99

$

In Stock, Qty 9

0

9

Husqvarna 539976952

SCREW, #10-24 x 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

10

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

11

Husqvarna 539101768

SWITCH, BLADE
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

12

Husqvarna 539110074

METER, HOUR
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

13

Husqvarna 539110950

HARNESS, FRAME

$

$

Not available

14

Husqvarna 539110815

PUSH MOUNT, WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

15

Husqvarna 539976934

HCS, 5/16C x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

16

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539102617

SCREW, #10-24 x 7/8

$3.99

$

In Stock, only 3 left!

0

18

Husqvarna 539991034

SCREW, SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

20

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

21

Husqvarna 539101771

FUSE, 7.5 AMP 32V ATO

$

$

Not available

22

Husqvarna 539107544

KEY, IGNITION, PADDED
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

23

Husqvarna 539976977

NUT, #10-24, NYLOC

$

$

Not available
