LZ 6130 (968999675) - Husqvarna 61" Zero-Turn Mower (2008-12) Chassis / Frame Parts Diagram

61" Zero-Turn Mower

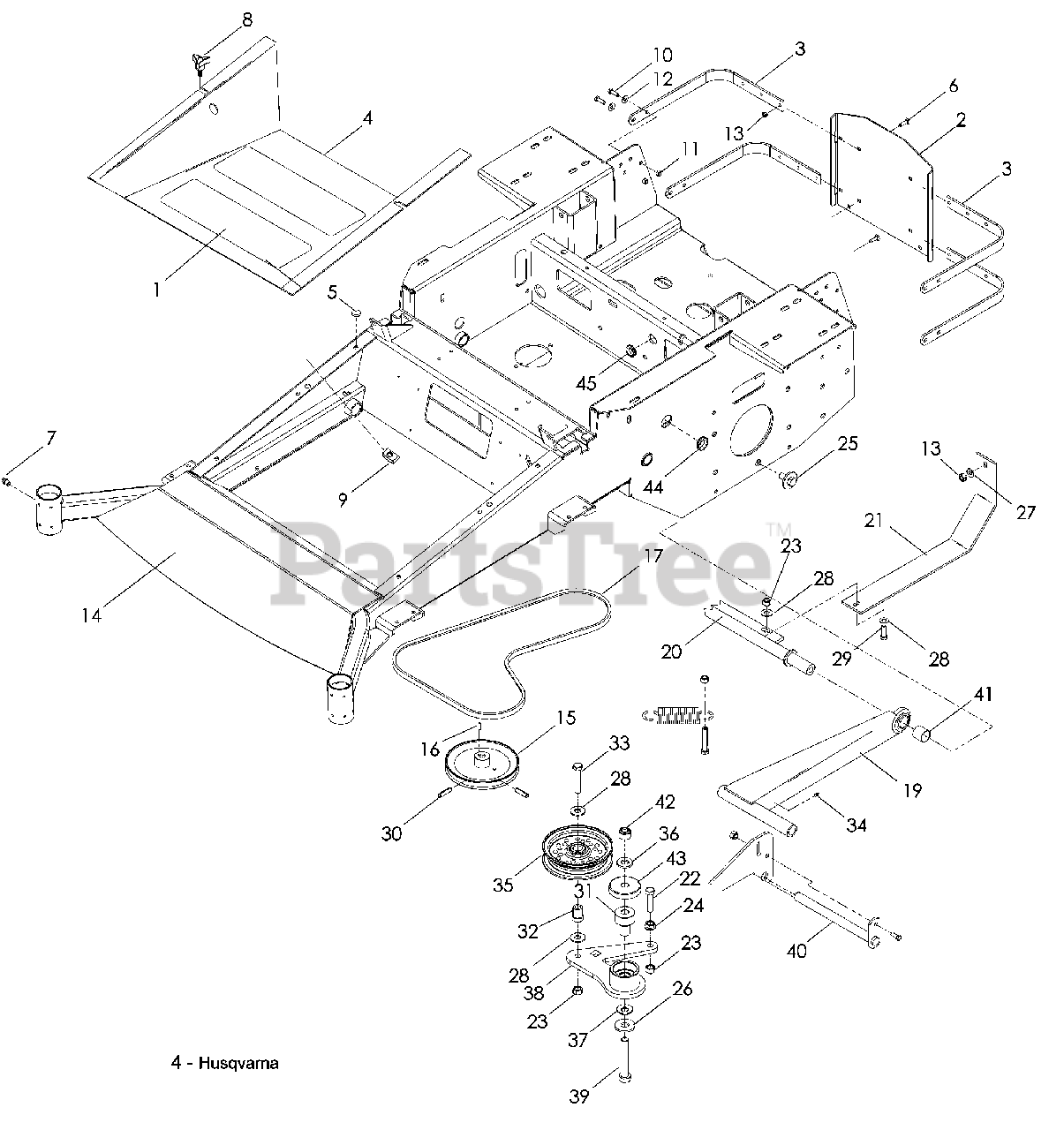

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539977778

PAD, ABRASIVE

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539110976

GUARD

$35.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106961

STRAP

$21.99

$

In Stock, only 1 left!

0

4

Husqvarna 539104721

PLATE, FOOT

$218.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

6

Husqvarna 539990316

RHSNB 5/16-18 x ¾
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539104411

KNOB w/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 539104763

U CLIP 5/16-18

$6.49

$

In Stock, Qty 12

0

10

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

13

Husqvarna 539990184

NUT 5/16-18 CNTRLK

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539132229

FRAME, 52"/61"

$

$

Not available

Husqvarna 539132232

FRAME, 72"

$2077.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539101176

PULLEY

$

$

Not available

16

Husqvarna 539101177

KEY

$8.99

$

In Stock, only 2 left!

0

17

Husqvarna 510201501

BELT, PUMP

$46.99

$

In Stock, Qty 10

0

18

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

19

Husqvarna 539104390

STRUT WLDMT, RR 52"/61"

$302.99

$

Usually ships in 3-10 days

0

Husqvarna 539110746

STRUT WLDMT, RR 72"

$151.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539132302

SHAFT, CROSS

$

$

Not available

21

Husqvarna 539112634

PLATE, SKID

$46.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

23

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539119007

BOLT/WASHER

$10.99

$

In Stock, only 4 left!

0

26

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

27

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

28

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990563

HCS 3/8-16 x 1

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539110631

PIN, ROLL 5/16"

$3.99

$

In Stock, Qty 16

0

31

Husqvarna 510206301

BEARING, PIVOT

$6.49

$

In Stock, only 2 left!

0

32

Husqvarna 539976695

BUSHING, FLANGE

$

$

Not available

33

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

34

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

35

Husqvarna 539976688

PULLEY, IDLER

$

$

Not available

36

Husqvarna 539990250

WASHER

$1.99

$

In Stock, only 2 left!

0

37

Husqvarna 539115528

WASHER, BELLEVILLE ½

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539130392

ARM, IDLER w/ BEARINGS

$48.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539101572

HCS ½-13 x 3

$5.99

$

In Stock, Qty 9

0

40

Husqvarna 539102619

PIVOT PIN WLDMT 52"/61"

$40.99

$

In Stock, only 3 left!

0

Husqvarna 539105480

PIVOT PIN WLDMT 72"

$36.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539104521

SPACER, STRUT

$9.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539101331

NUT ½-13 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

43

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

44

Husqvarna 539105974

GROMMET, RUBBER

$

$

Not available

45

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0
