LZ 6130 (968999675) - Husqvarna 61" Zero-Turn Mower (2008-12) 72 Inch Deck Parts Diagram

61" Zero-Turn Mower

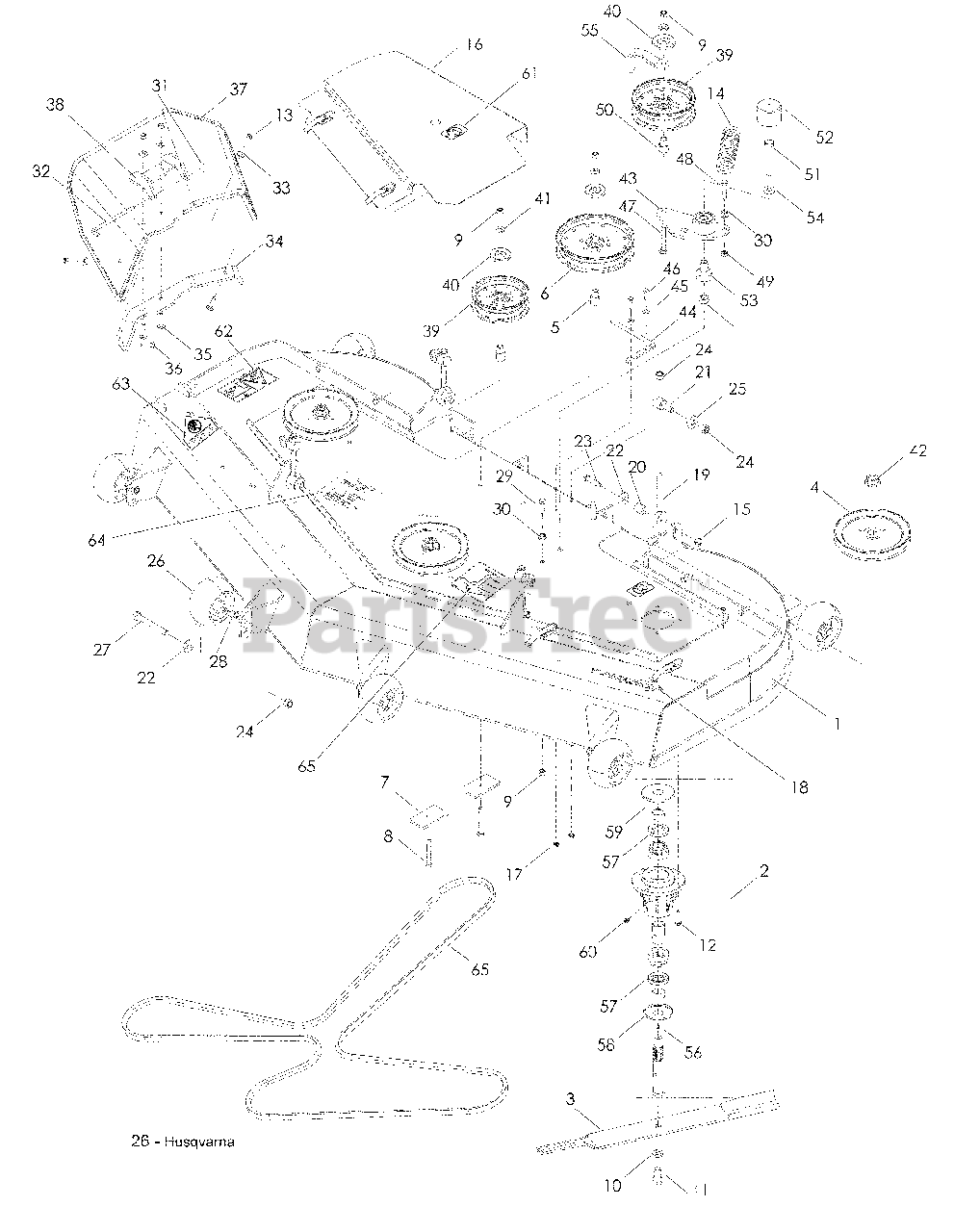

72 Inch Deck Parts Diagram

  • Title

1

Husqvarna 539111379

DECK w/ DECALS

$

$

Not available

2

Husqvarna 539131383

HOUSING ASSM
(Superseded to 966956101)

Note: subs to 966 956101, Housing Assm

$148.99

$

In Stock, only 2 left!

0

3

Husqvarna 539105476

BLADE 25"

$39.99

$

In Stock, Qty 20+

0

4

Husqvarna 539112126

PULLEY

$

$

Not available

5

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

6

Husqvarna 510015101

PULLEY, IDLER

$

$

Not available

7

Husqvarna 539103303

PAD, PAINTED
(Superseded to 539106504)

$

$

Not available

8

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

9

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990333

WASHER 5/8 SLW

$1.99

$

In Stock, Qty 6

0

11

Husqvarna 539103299

HCS 5/8-18 x 1¼

$

$

Not available

12

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

13

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539105192

SPRING

$

$

Not available

15

Husqvarna 539990839

NUT 7/16-14 HEX CTRLK GR A

$3.99

$

In Stock, only 3 left!

0

16

Husqvarna 510196201

BELT SHIELD ASSM RT

$

$

Not available

Husqvarna 510196301

BELT SHIELD ASSM LT

$

$

Not available

17

Husqvarna 539108735

NUT ¼-20 HEX FLANGE

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539111561

DECAL, TUNNELRAM

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539119227

EYEBOLT

$18.99

$

In Stock, only 3 left!

0

20

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

21

Husqvarna 505256501

SWIVEL

$18.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539109554

WASHER ½ FLAT

$

$

Not available

23

Husqvarna 539108073

HCS 7/16-14 x 1¾

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539101331

NUT ½-13 NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

25

Husqvarna 539115550

WASHER ½ STD FLT

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

27

Husqvarna 539108366

HHB ½-13 x 4

$6.99

$

In Stock, Qty 17

0

28

Husqvarna 539990258

NUT ½-13 HEX

$4.99

$

In Stock, Qty 14

0

29

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 2 left!

0

30

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990365

COTTER PIN 1/8 x ¾
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

32

Husqvarna 539131813

PIN, CHUTE PIVOT

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539130926

REINFORCEMENT, 72

$

$

Not available

35

Husqvarna 539102933

RHSNB 5/16-18 x 1½

$

$

Not available

36

Husqvarna 539100472

RHSNB 5/16-18 x 1¼

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539130780

CHUTE, DISCHARGE

$

$

Not available

38

Husqvarna 539130923

BRACKET, MOUNTING

$43.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 1 left!

0

40

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

41

Husqvarna 522023401

WASHER 3/8 SPECIAL

$4.99

$

In Stock, Qty 20+

0

42

Husqvarna 539130653

NUT ¾-16 FLANGE
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

43

Husqvarna 539130391

ARM, IDLER w/ BEARINGS

$

$

Not available

44

Husqvarna 522629801

GUIDE, BELT

$

$

Not available

45

Husqvarna 539990055

WASHER ¼ STD FLT

$3.99

$

In Stock, Qty 19

0

46

Husqvarna 539990548

HCS ¼-20 x 1

$3.99

$

In Stock, only 1 left!

0

47

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

48

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0

49

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

51

Husqvarna 539103433

HCS ½-13 x 3¼

$6.99

$

In Stock, only 4 left!

0

52

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

53

Husqvarna 510206301

BEARING, PIVOT

$6.49

$

In Stock, only 2 left!

0

54

Husqvarna 539115528

WASHER, BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539114981

GUIDE, BELT

$

$

Not available

56

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539108754

SEAL, SHAFT

$7.99

$

In Stock, Qty 7

0

58

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

59

Husqvarna 539108450

DUST CAP, TOP

$5.99

$

In Stock, only 1 left!

0

60

Husqvarna 539977326

POPPET, GREASE

$13.99

$

Usually ships in 3-10 days

0

61

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

62

Husqvarna 539105746

DECAL, SEVERING

$3.99

$

In Stock, only 3 left!

0

63

Husqvarna 539913010

DECAL, WARNING

$4.99

$

In Stock, only 1 left!

0

64

Husqvarna 539105232

DECAL, ANTI-SCALP

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

66

Husqvarna 522740201

BELT, DECK

$

$

Not available
