LZ 6130 (968999675) - Husqvarna 61" Zero-Turn Mower (2007-12) 72" Deck Parts Diagram

61" Zero-Turn Mower

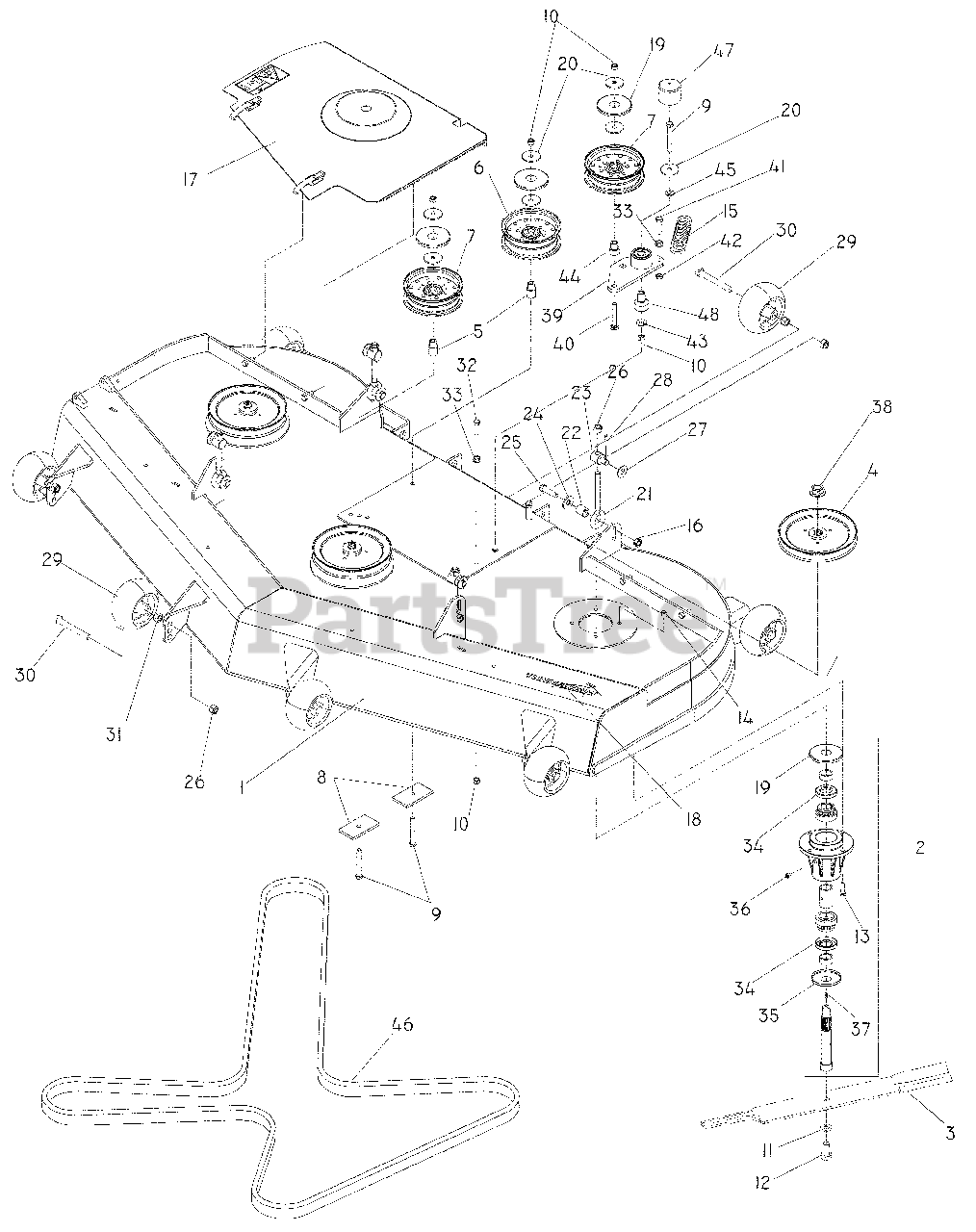

72" Deck Parts Diagram

  • Title

1

Husqvarna 539111379

DECK W/DECALS

$

$

Not available

2

Husqvarna 539114821

HOUSING ASM
(Superseded to 966956201)

$519.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539105476

BLADE - 25"

$39.99

$

In Stock, Qty 20+

0

4

Husqvarna 539112126

PULLEY

$

$

Not available

5

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

6

Husqvarna 539103258

IDLER PULLEY

Note: (TALL)

$53.99

$

In Stock, only 1 left!

0

7

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

8

Husqvarna 539103303

PAD, PAINTED
(Superseded to 539106504)

$

$

Not available

9

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

10

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990333

WASHER 5/8 SLW

$1.99

$

In Stock, Qty 6

0

12

Husqvarna 539103299

HCS 5/8-18 x 1¼

$

$

Not available

13

Husqvarna 539990627

HCS 5/16-18 x 1¼

$4.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539105192

SPRING

$

$

Not available

16

Husqvarna 539990839

NUT 7/16-14 HEX CTRLK GR A

$3.99

$

In Stock, only 3 left!

0

17

Husqvarna 539110743

72 BELT SHIELD ASM - RT

$242.99

$

Usually ships in 3-10 days

0

Husqvarna 539110744

72 BELT SHIELD ASM - LT

$218.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539111561

DECAL, TUNNELRAM 8"

$8.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

20

Husqvarna 539111897

WASHER - 3/8 SPECIAL

$

$

Not available

21

Husqvarna 539119227

EYEBOLT

$18.99

$

In Stock, only 3 left!

0

22

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539114405

SWIVEL

$17.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539112484

SPRING WASHER

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539108073

HCS 7/16-14 x 1¾

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539101331

NUT ½ -13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990550

WASHER, ½ STD FLT

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539109246

PIN COTTER 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

30

Husqvarna 539108366

HHB ½-13 x 4

$6.99

$

In Stock, Qty 17

0

31

Husqvarna 539990258

NUT ½-13 HEX

$4.99

$

In Stock, Qty 14

0

32

Husqvarna 539976941

HCS 3/8-16 x 1¼

$4.99

$

In Stock, only 1 left!

0

33

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

35

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

36

Husqvarna 539977326

GREASE POPPET

$13.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539130653

NUT FLANGE ¾-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

39

Husqvarna 539130391

ARM, IDLER - W/BEARINGS

$

$

Not available

40

Husqvarna 539130235

RHSNB 3/8-16 x 2¾

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539107042

HCS 3/8-16 x 1½ GR 8

$3.99

$

In Stock, Qty 6

0

42

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

43

Husqvarna 539990517

WASHER, 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

45

Husqvarna 539990122

WASHER, 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

46

Husqvarna 539105477

DECK BELT

$

$

Not available

47

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

48

Husqvarna 539130205

PIVOT BEARING

$4.99

$

In Stock, only 1 left!

0
