LZ 6127 TKOA (968999357) - Husqvarna 61" Zero-Turn Mower (2006-04) Caster Assembly Parts Diagram

61" Zero-Turn Mower

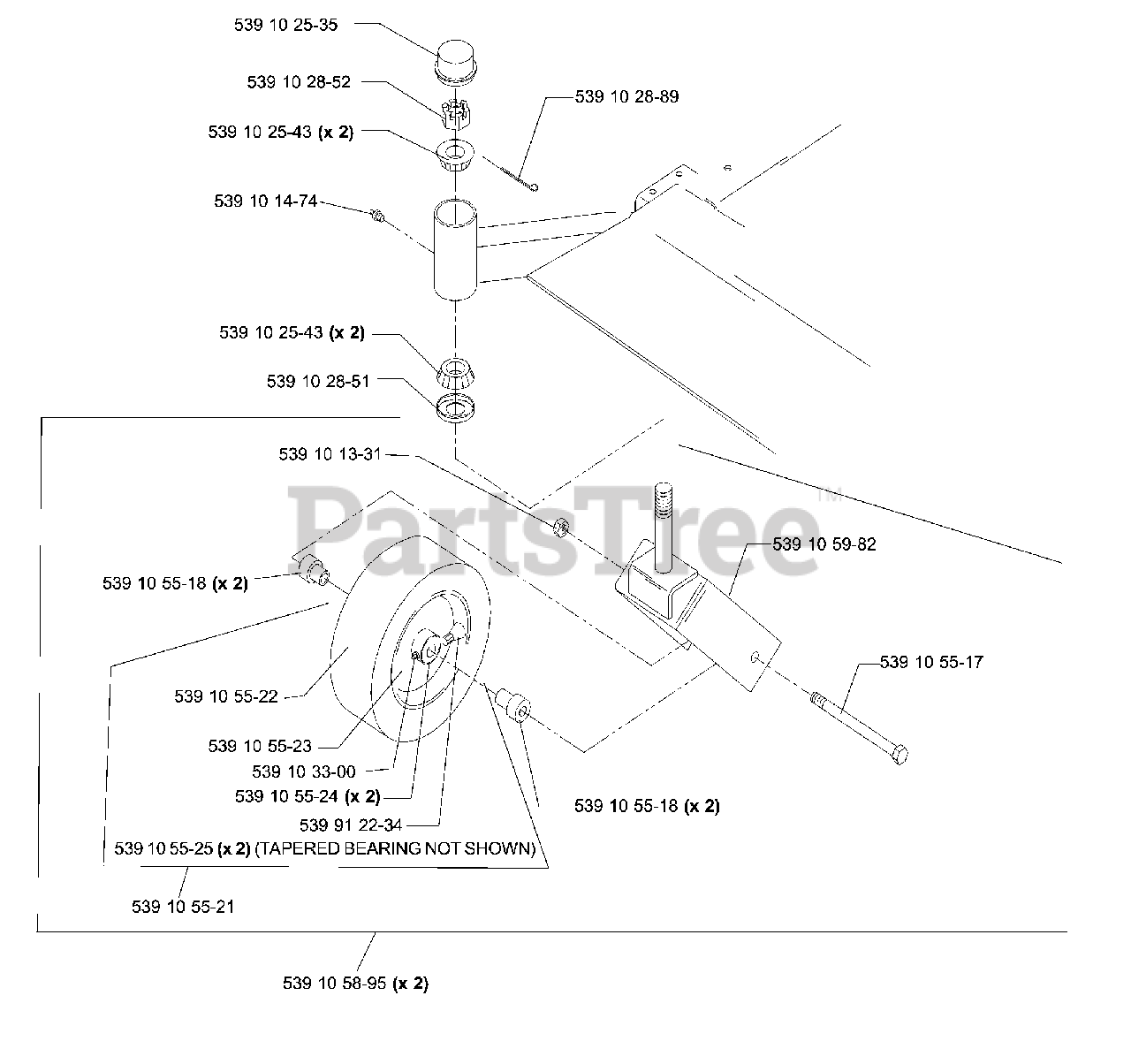

Caster Assembly Parts Diagram

  • Title

539101331

Husqvarna 539101331

RP NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539101474

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

539102535

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

539102543

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 2 left!

0

539102851

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

539102852

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

539102889

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

539103300

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

539105517

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

539105518

Husqvarna 539105518

AXLE SPACER

$9.49

$

In Stock, only 4 left!

0

539105521

Husqvarna 539105521

FRONT TIRE ASSY

$182.99

$

In Stock, only 3 left!

0

539105522

Husqvarna 539105522

TIRE - SMOOTH 13X6.50-6

$120.99

$

In Stock, only 2 left!

0

539105523

Husqvarna 539105523

RIM

$

$

Not available

539105524

Husqvarna 539105524

SEAL

$9.49

$

In Stock, only 3 left!

0

539105525

Husqvarna 539105525

TAPERED BEARING W/RACE

$24.99

$

In Stock, only 3 left!

0

539105895

Husqvarna 539105895

XP CASTOR ASSY

$485.99

$

In Stock, only 1 left!

0

539105982

Husqvarna 539105982

CASTOR YOKE ORANGE

$303.99

$

Usually ships in 3-10 days

0

539912234

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0
