LZ 6127 (968999709) - Husqvarna 61" Zero-Turn Mower (2008-01) PARKING BRAKE Parts Diagram

61" Zero-Turn Mower

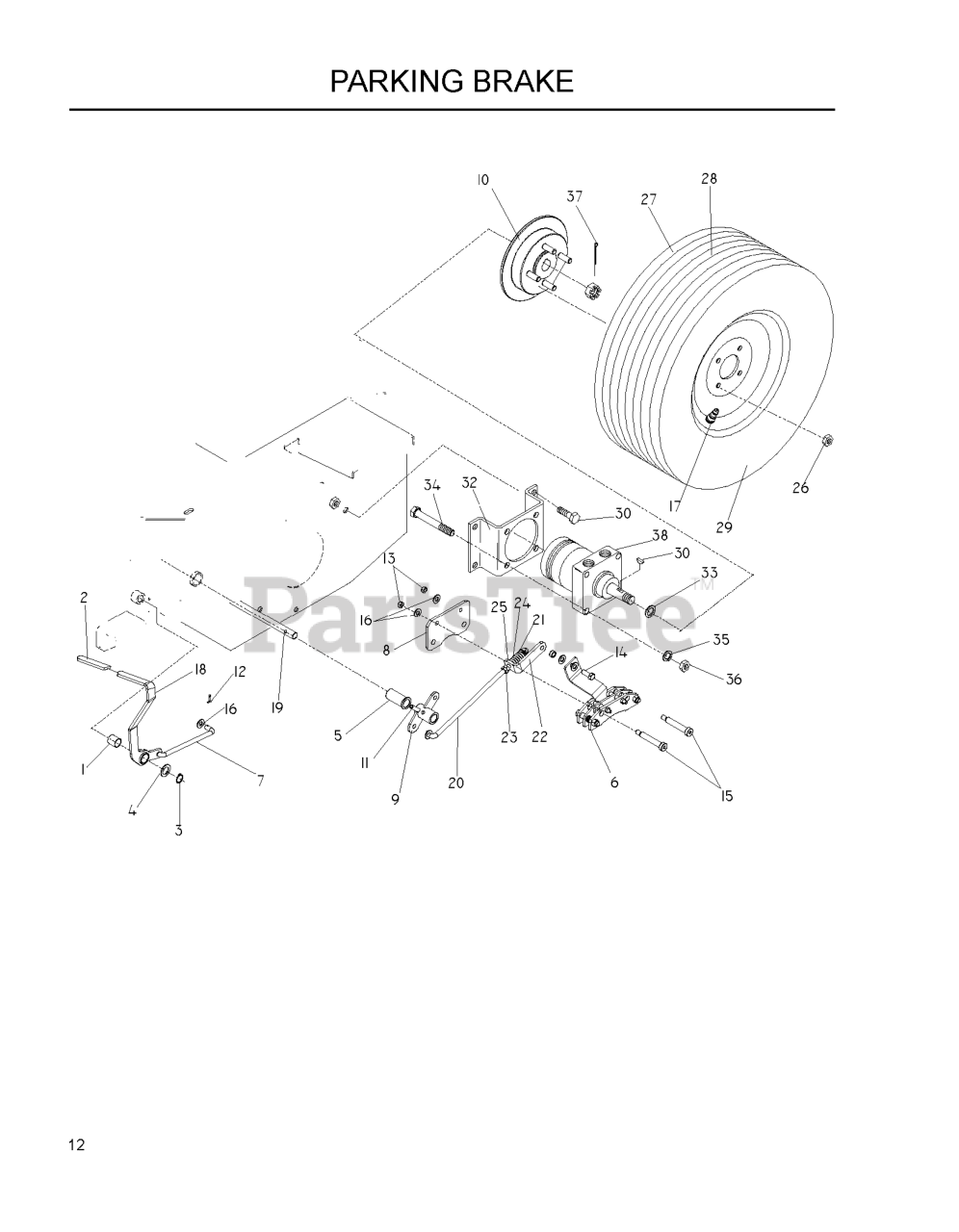

PARKING BRAKE Parts Diagram

  • Title

18

Husqvarna 539108616

BRAKE LEVER WLDMT

$54.99

$

Usually ships in 3-10 days

0

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

Note: NOT SHOWN

$4.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

24

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539111149

RIM 1.0" NEG OFFSET 8.5" WIDE

$

$

Not available

11

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

13

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

32

Husqvarna 539132300

MOUNT, MOTOR, WHEEL - BLK

$

$

Not available

36

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

9

Husqvarna 539113946

BELLCRANK, BRAKE

$37.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

16

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539990289

NUT 3/8F CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539113944

CALIPER ASSEMBLY
(Superseded to 539133047)

$120.99

$

In Stock, only 2 left!

0

25

Husqvarna 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539105036

GRIP, PARK BRAKE

$6.49

$

In Stock, only 2 left!

0

37

Husqvarna 539104288

PIN COTTER 4MM X 45MM

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539113950

BRACKET, L

$15.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539105487

12"RIM 2.5" NEG OFFSET 8.5" W

$182.99

$

In Stock, only 1 left!

0

19

Husqvarna 539110624

SHAFT

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

28

Husqvarna 539112599

TIRE.TURF.MASTER.23X9.5-12

$194.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539110823

TL15 WHEEL MOTOR

$1139.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539113948

PLATE, BRAKE

$21.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539113945

HUB

$182.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539113947

LINKAGE, BRAKE

$6.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539990037

COTTER PIN 3/32 X 3/4

$3.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

15

Husqvarna 539113951

SB 3/8-16 X 2-1-1/2 SKT HDD ZD

$7.49

$

Usually ships in 3-10 days

0

1

Husqvarna 539108619

BUSHING

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539113949

LINKAGE, REAR BRAKE

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113479

BUSHING, POLYMER 3/4X2

$12.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539105486

WHEEL/TIRE.ASM.24X12-12.SILVER

Note: "61"" & 72"""

$433.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539105278

WOODRUFF KEY

$4.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539105152

TIRE.24X12-12.TURF.MASTER

$278.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539101151

RETAINING RING, 7/8"

$

$

Not available

31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0
