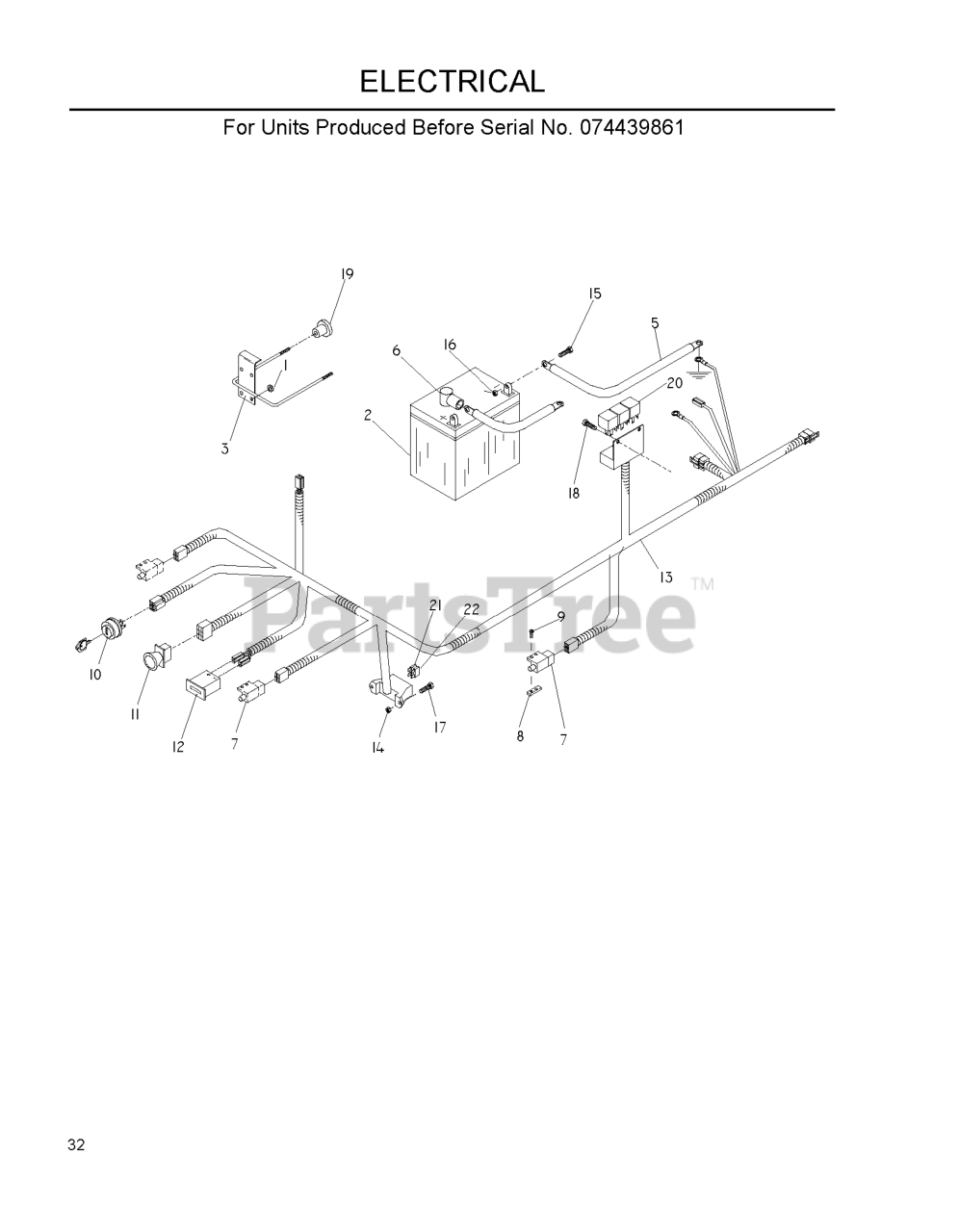

LZ 6127 (968999709) - Husqvarna 61" Zero-Turn Mower (2008-01) ELECTRICAL 2 Parts Diagram

61" Zero-Turn Mower

ELECTRICAL 2 Parts Diagram

  • Title

4

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

2

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

3

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

9

Husqvarna 539976952

SCREW #10-24 X 5/8
(Superseded to 596039001)

$3.99

$

In Stock, Qty 17

0

5

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

12

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

17

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539110950

FRAME HARNESS

$

$

Not available

22

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

19

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

8

Husqvarna 539102678

TAPPED PLATE

$15.99

$

In Stock, Qty 9

0

6

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

1

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

10

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

7

Husqvarna 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

20

Husqvarna 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

11

Husqvarna 582107602

RP SWITCH.PTO.TERMINAL.STD.RED
(Superseded to 582107601)

$28.99

$

In Stock, Qty 8

0

18

Husqvarna 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0
