LZ-60 KW (53YI2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2016) Drive Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

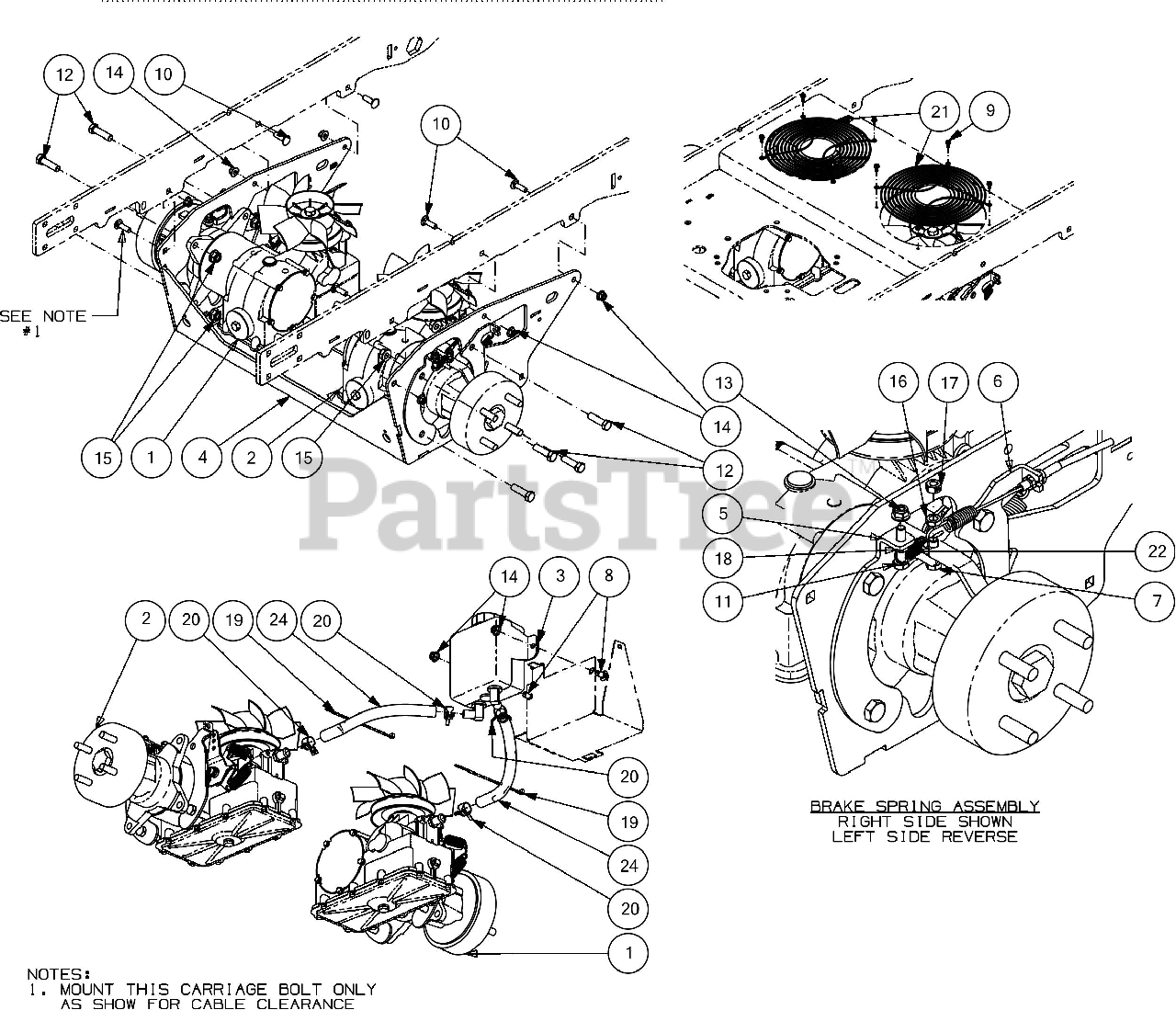

Drive Parts Diagram

  • Title

1

Cub Cadet 918-07021A

TRANSMISSION ASSEMBLY (LH)
(Superseded to 918-07021B)

$3440.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 918-07022A

TRANSMISSION ASSEMBLY (RH)
(Superseded to 918-07022B)

$3440.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-04566

TANK ASSEMBLY (1.5 QT)

$51.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00336-0637

TRANSMISSION BRACKET ASSEMBLY

$296.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09657A-0637

BRAKE SPRING BRACKET

$29.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-09658A-0637

BRAKE CABLEB RACKET

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0376

SCREW 5/16-18 X 1.0 GR5

$3.99

$

In Stock, only 4 left!

0

8

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 X .750 GR5

$4.49

$

In Stock, Qty 10

0

9

Cub Cadet 1767754

SCREW 10-24 X 0.500
(Superseded to 710-04460)

$

$

Not available

10

Cub Cadet 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0805A

SCREW 5/16-18 X 1.5 LG

$4.49

$

In Stock, only 3 left!

0

12

Cub Cadet 710-3067

BOLT 1/2-13X1.75 GR5

$6.99

$

In Stock, only 2 left!

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-3007

HEX NUT

$6.99

$

In Stock, Qty 5

0

17

Cub Cadet 912-3009

HEX NUT
(Superseded to 712-3009)

$

$

Not available

18

Cub Cadet 912-3010

HEX NUT
(Superseded to 712-3010)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 725-0157

CABLE TIE 7"

$3.99

$

In Stock, only 2 left!

0

20

Cub Cadet 726-05017

HOSE CLAMP

$4.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-04833

FAN COVER

$19.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-05147

EXTENSION SPRING .500 OD X 1.71

$5.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 751-12281

HOSE-OIL 5/8 X 12

$10.99

$

Usually ships in 3-6 days

0
