LZ-60 KW (53YI2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2016) Control Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

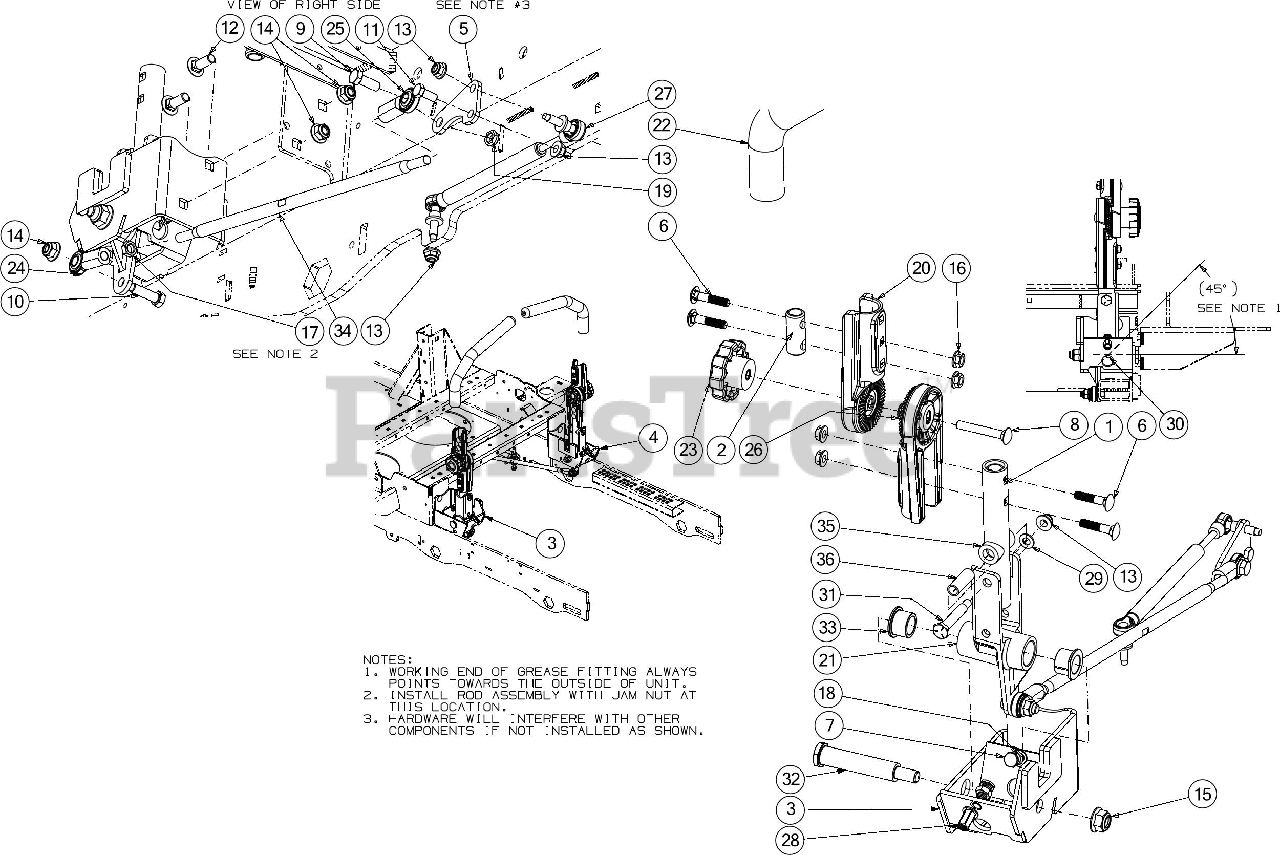

Control Parts Diagram

  • Title

1

Cub Cadet 680-00237-0637

LOWER PIVOT TUBE BRACKET

$42.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 749-04888-0637

HANDLE ADJUSTMENT TUBE

Note: (Not Shown)

$15.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00242-0637

LAPBAR BRACKET

$59.99

$

In Stock, only 1 left!

0

2

Cub Cadet 749-04829-0637

LAPBAR TUBE

Note: (Not Shown)

$28.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00342A-0637

PIVOT LAPBAR HOUSING (RH)

$64.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00343A-0637

PIVOT LAPBAR HOUSING (LH)

$69.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08789A-0637

RETURN BRACKET

$96.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

7

Cub Cadet 710-04095

SCREW 3/8-16X1.0 GR5 SPEC

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0572

SCRE W5/16-18 x 2.25 GR5

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04339

FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 912-3008

HEX NUT

$4.99

$

In Stock, Qty 19

0

19

Cub Cadet 912-3020

TOP LOCK NUT

$6.49

$

In Stock, Qty 10

0

20

Cub Cadet 719-04718

HANDLE ADJUST
(Superseded to 719-04718A)

$49.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 719-04753

PIVOT CONTROL

Variations

Cub Cadet 719-04753-0637

Control Pivot - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 720-04188

GRIP

$25.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 720-05057

KNOB-5/16-18

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 723-04080

BALL JOINT (RH)

$41.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 723-04098

FEMALE BALL JOINT (LH)

$31.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 727-04391

DAMPER CYLINDER

$74.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 728-04062A

NUT RIVET
(Superseded to 728-04062B)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 936-0264

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

30

Cub Cadet 737-3001

45 DEGREE LUBE FITTING 1/4-28 TAPER

$12.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-04535

SHOULDER SCREW

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-05033

SHOULDER BOLT .750 DIA x 3.25 LG

$16.99

$

In Stock, only 3 left!

0

33

Cub Cadet 741-04050

FLANGE BEARING

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-05678

CONTROL ROD

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-05622

NYLON SPACER

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0
