LZ-60 KW (53YI2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2015) Seat Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

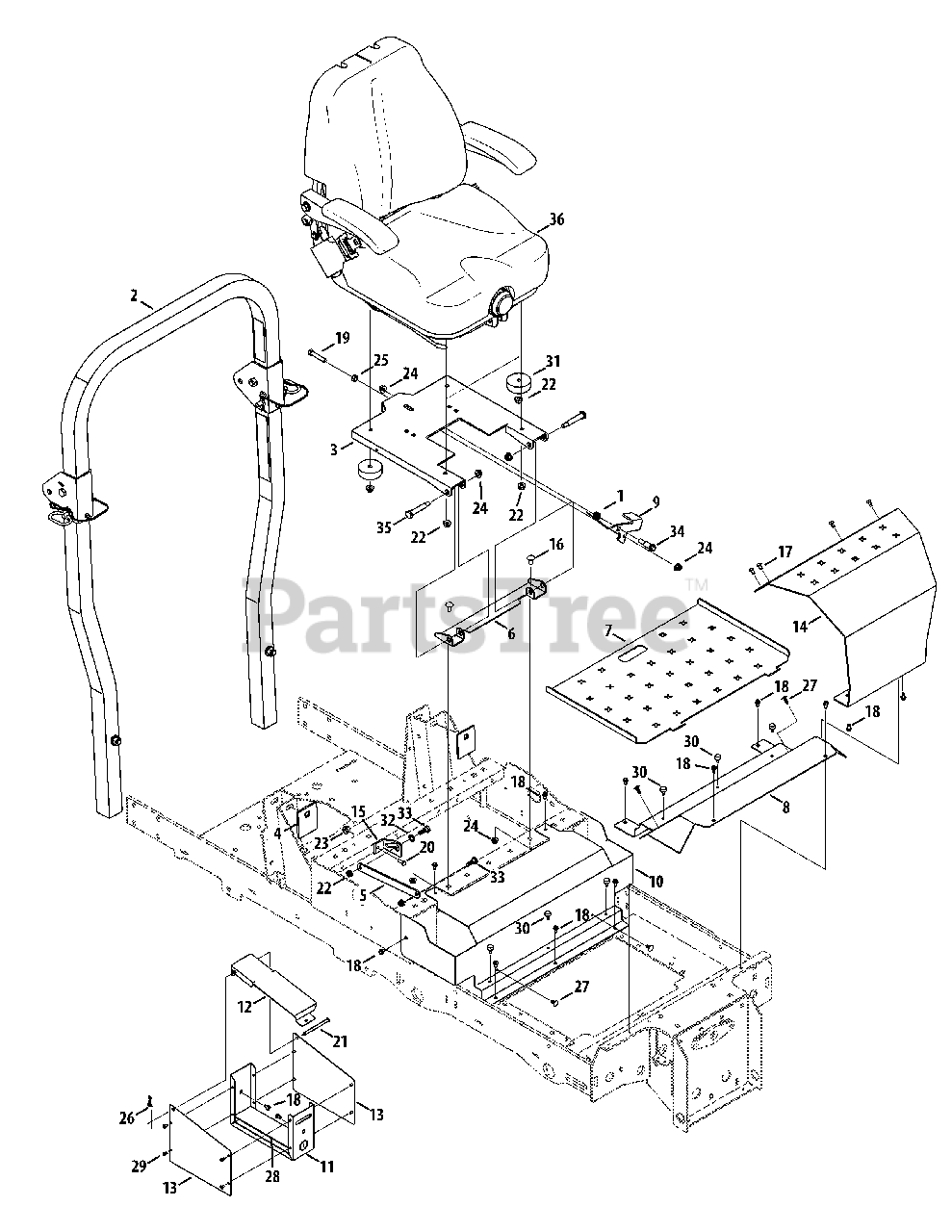

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 01008140P

Torsion Spring, .725 x 1.0 x .09

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00175

Folding ROPS Assembly

$876.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-10131

Screw-Hex Head 3.00"

Note: (not shown)

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-10141

Screw-Hex Head 3.50"

Note: (not shown)

$11.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-10485

NUT 1/2-13

Note: (not shown)

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-12466

FLAT WASHER .500

Note: (not shown)

$3.49

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-17811

U-LOCK-NYLON LANYARD

Note: (not shown)

$8.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-18413

RETAINING WASHER

Note: (not shown)

$12.99

$

In Stock, only 1 left!

0

2

Cub Cadet CP-3-18417

HITCH PIN w/R-CLIP
(Superseded to CP-3-18417P)

Note: (not shown)

$51.99

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-18418

FOAM WASHER

Note: (not shown)

$8.49

$

Usually ships in 3-6 days

0

2

Cub Cadet CP-3-18480

BUMPER w/FLANGE

Note: (not shown)

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07814-0637

Seat Mounting Bracket

$91.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07880-0637

Deck Reinforcement Plate

$11.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08198-0637

Seat Lockout Bracket

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08241-0637

Seat Mounting Bracket

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08324-0637

Floor Panel Tray

$67.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08416-0637

Floor Panel
(Superseded to 703-08416-4021)

$87.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08480-4021

Seat Lever Latch

$31.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08496-0637

Control Panel Cover

$100.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08511-0637

Storage Box

$35.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08513-0637

Storage Box Lid

$35.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-08519-0637

Storage Box Side Panel

$17.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-08633A-4021

Front Panel Cover

$137.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-08758A-0637

Seat Lockout Mount

$31.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05070A

Screw, 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

18

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 16

0

20

Cub Cadet 710-3015

Hex Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 711-05607A

Clevis Pin, .25 x 3.5

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 912-3017

Nut, 3/8-16, Hex
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 714-04040

Cotter Pin, Bow Tie

$1.49

$

In Stock, Qty 20+

0

27

Cub Cadet 726-3046

Clip, .250 Dia.

$3.99

$

In Stock, only 4 left!

0

28

Cub Cadet 727-04385

Adhesive Pad

$7.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 728-04016

Rivet, 3/16 x .325

$3.49

$

Usually ships in 3-6 days

0

30

Cub Cadet 735-0271A

Bumper, .62 Dia. x .3

$8.99

$

In Stock, only 1 left!

0

31

Cub Cadet 735-04286

Rubber Bumper, 2.5 x 1.0

$8.99

$

In Stock, Qty 12

0

32

Cub Cadet 736-3024

Flat Washer, .469 x .750 x .06

$3.99

$

In Stock, only 1 left!

0

33

Cub Cadet 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 738-0966A

Shoulder Bolt, .50 x .925, 3/8-16

$4.99

$

In Stock, Qty 19

0

35

Cub Cadet 738-1011A

Shoulder Bolt, .500 x 2.23, 3/8-16

$8.49

$

In Stock, Qty 11

0

36

Cub Cadet 757-05011A

Seat

$1088.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-103433

Adjust Knob-Recliner

Note: (Not shown)

$53.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-105678

Iso Lever W/Roll Pin

Note: (Not shown)

$69.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-111878

Track Kit-6" Locking

Note: (Not shown)

$210.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-176201

Black Selfskin-Arm Pad Only

Note: (Not shown)

$74.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-183390

Knob Assy-Weight Adjust Ind

Note: (Not shown)

$70.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-183448

Armrest Set-SS Front Adj

Note: (Not shown)

$319.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-183490

Armrest-RH Selfskin Front Adj

Note: (Not shown)

$165.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-183491

Armrest-LH Selfskin Front Adj

Note: (Not shown)

$143.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-183672

Bellows-W/Hardware

Note: (Not shown)

$107.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-311877

Belt Kit-Retractable 2" Anti Cinch

Note: (Not shown)

$211.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-311923

Back Cover-MB Logo

Note: (Not shown)

$236.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-311924

Cushion Cover

Note: (Not shown)

$169.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-708225

Knob-Arm Adjust Black

Note: (Not shown)

$31.99

$

Usually ships in 3-6 days

0

36

Cub Cadet SI-781580

Switch-Delta

Note: (Normally Closed, Not shown)

$53.99

$

Usually ships in 3-6 days
