LZ-60 KW (53YI2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2015) Control Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

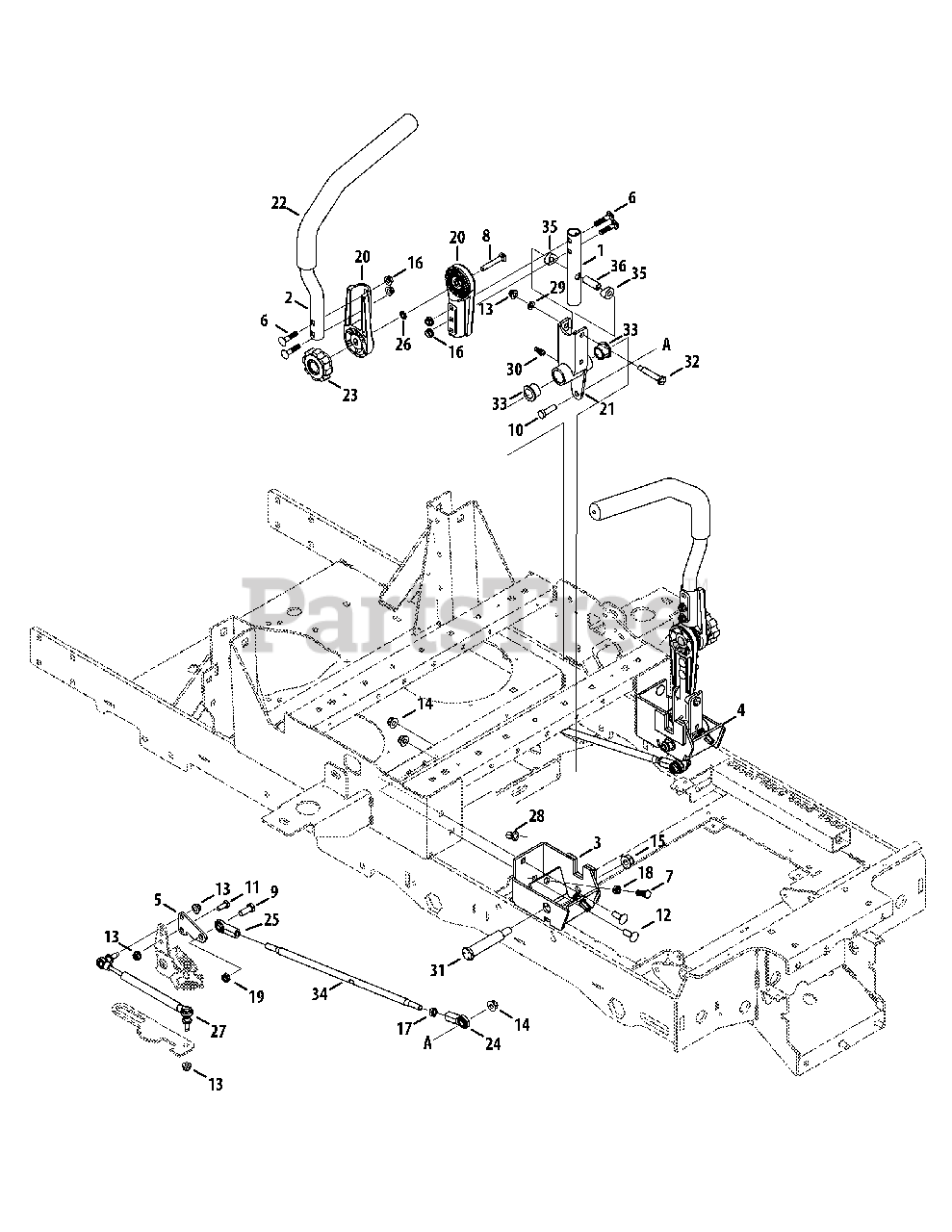

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 680-00237-0637

Lower Pivot Tube Weldment

$42.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00242-0637

Lapbar Tube Weldment

$59.99

$

In Stock, only 1 left!

0

3

Cub Cadet 680-00342A-0637

Pivot Housing Weldment, RH

$64.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00343A-0637

Pivot Housing Weldment, LH

$69.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08789-0637

Return to Neutral Control Bracket
(Superseded to 703-08789A-0637)

$96.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 12

0

7

Cub Cadet 710-04095

Hex Cap Screw, 3/8-16 x 1.00

$5.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0572

Carriage Bolt 5/16-18 x 2.25

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04065

Nut, 3/8-16, Flnagelock

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 712-04339

Nut, 5/16-18, Centerlock

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 912-3008

Jam Nut, 3/8-16

$4.99

$

In Stock, Qty 19

0

19

Cub Cadet 912-3020

Jam Nut, 3/8-16

$6.49

$

In Stock, Qty 10

0

20

Cub Cadet 719-04718

Handle Adjustment
(Superseded to 719-04718A)

$49.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 719-04753

Pivot Control

Variations

Cub Cadet 719-04753-0637

Control Pivot - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$68.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 720-04188

Grip, 1.0 ID

$25.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 720-05057

Knob, 5/16-18

$19.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 723-04080

Ball Joint, 3/8-24

$41.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 723-04098

Ball Joint, 3/8-24, LH

$31.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 726-0201

Speed Nut, .3125

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 727-04391

Damper Control Cylinder

$74.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 728-04062A

Rivet Nut, 3/8-16
(Superseded to 728-04062B)

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 936-0264

Washer, .330 x .630 x .064

$6.99

$

In Stock, only 3 left!

0

30

Cub Cadet 737-3001

Grease Fitting, 1/4-28

$12.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-05033

Shoulder Bolt, .75 x 3.25, 1/2-13

$16.99

$

In Stock, only 3 left!

0

32

Cub Cadet 738-04535

Shoulder Screw, .375 x 1.813, 5/16-18

$6.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 741-04050

Bearing, .75 x 1.00 x .73

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 747-05678

Control Rod

$42.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-05622

Spacer, .500 x .875 x .250

$7.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 750-05673

Spacer, .385 x .500 x 1.40

$8.99

$

Usually ships in 3-6 days

0
