LZ-60 KH (53AH2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2012) Kohler CV740-3141 Ignition & Electrical Parts Diagram

60" Tank Zero-Turn Mower, Kohler

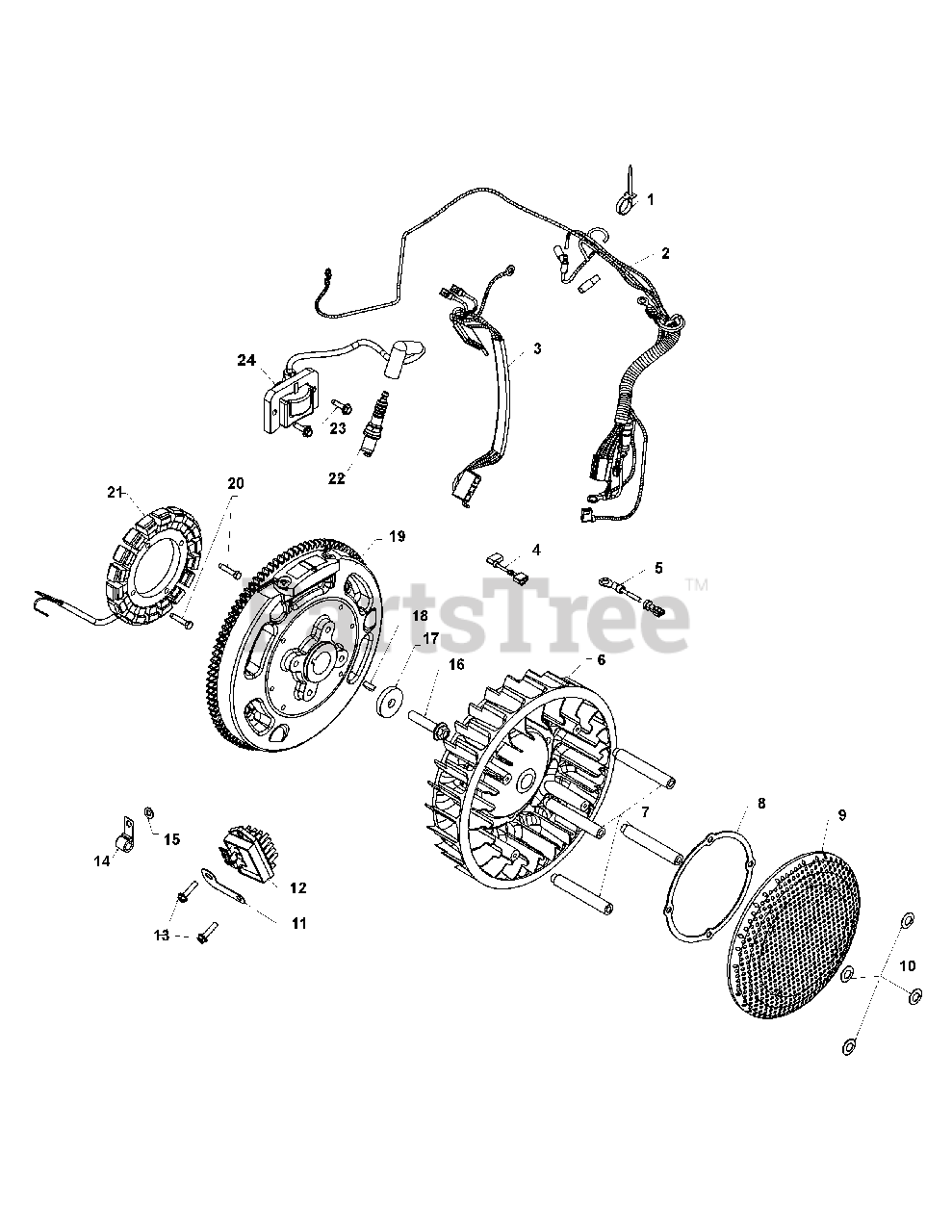

Kohler CV740-3141 Ignition & Electrical Parts Diagram

  • Title

1

Cub Cadet KH-25-454-07-S

Tie

$2.49

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-176-150-S

Wiring Harness

$44.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-24-176-130-S

DSAI Wiring Harness

$33.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-24-518-09-S

Oil Sentry Lead

$

$

Currently unavailable

5

Cub Cadet KH-25-518-34-S

Lead

$6.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-157-12-S

Fan

$22.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-24-112-14-S

Spacer

$

$

Currently unavailable

8

Cub Cadet KH-24-141-06-S

Support Ring

$

$

Currently unavailable

9

Cub Cadet KH-24-162-41-S

Grass Screen

$24.99

$

In Stock, only 1 left!

0

10

Cub Cadet KH-24-468-11-S

Spring Washer, 10 mm

$

$

Currently unavailable

11

Cub Cadet KH-24-126-137-S

Ground Strap Bracket
(Superseded to KH-24-518-12-S)

$4.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KH-25-403-21-S

Rectifier Regulator
(Superseded to KH-25-403-39-S)

$85.99

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-25-086-157-S

Hi-Lo Hex Flange Screw

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-235173-S

Cable Clip

$

$

Currently unavailable

15

Cub Cadet KH-X-25-63-S

Flat Washer, 1/4

$

$

Currently unavailable

16

Cub Cadet KH-12-086-14-S

Flange Screw, M10 x 1.5 x 45

$

$

Currently unavailable

17

Cub Cadet KH-12-468-03-S

Flat Washer, 13/32

$

$

Currently unavailable

18

Cub Cadet KH-X-42-15-S

Key, 3/16 x 5/8

$

$

Currently unavailable

19

Cub Cadet KH-24-025-58-S

Flywheel

$

$

Not available

20

Cub Cadet KH-M-548025-S

Screw, M5 x 0.8 x 25
(Superseded to KH-25-086-402-S)

$2.49

$

In Stock, only 2 left!

0

21

Cub Cadet KH-237878-S

15 Amp Stator Kit

$

$

Currently unavailable

22

Cub Cadet KH-12-132-02-S

Spark Plug

$11.99

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-M-545020-S

Flange Screw, M5 x 0.8 x 20
(Superseded to KH-25-086-473-S)

$2.49

$

In Stock, Qty 20+

0

24

Cub Cadet KH-24-584-63-S

Spark Module (DSAI) Assembly

$

$

Not available

Cub Cadet KH-25-086-43-S

Set Screw, #10-24 x 1/4

Note: Not Shown

$

$

Currently unavailable

Cub Cadet KH-M-603100-S

Cap Screw, M6 x 1.0 x 99.5

Note: Not Shown

$

$

Currently unavailable

Cub Cadet KH-X-25-53-S

Flat Washer, 1/4

Note: Not Shown

$

$

Currently unavailable

Cub Cadet KH-210281-S

Clip

Note: Not Shown

$7.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-755-79-S

Chopper Screen Kit

Note: (Inc. 7-9,KH-41-037-10-S, KH-25-086-27-S,KH-M-603100-S, KH-M-629122-S & KH-X-25-53-S)

$

$

Currently unavailable
