LZ-60 KH (53AH2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2012) Kohler CV740-3141 Head, Valve & Breather Parts Diagram

60" Tank Zero-Turn Mower, Kohler

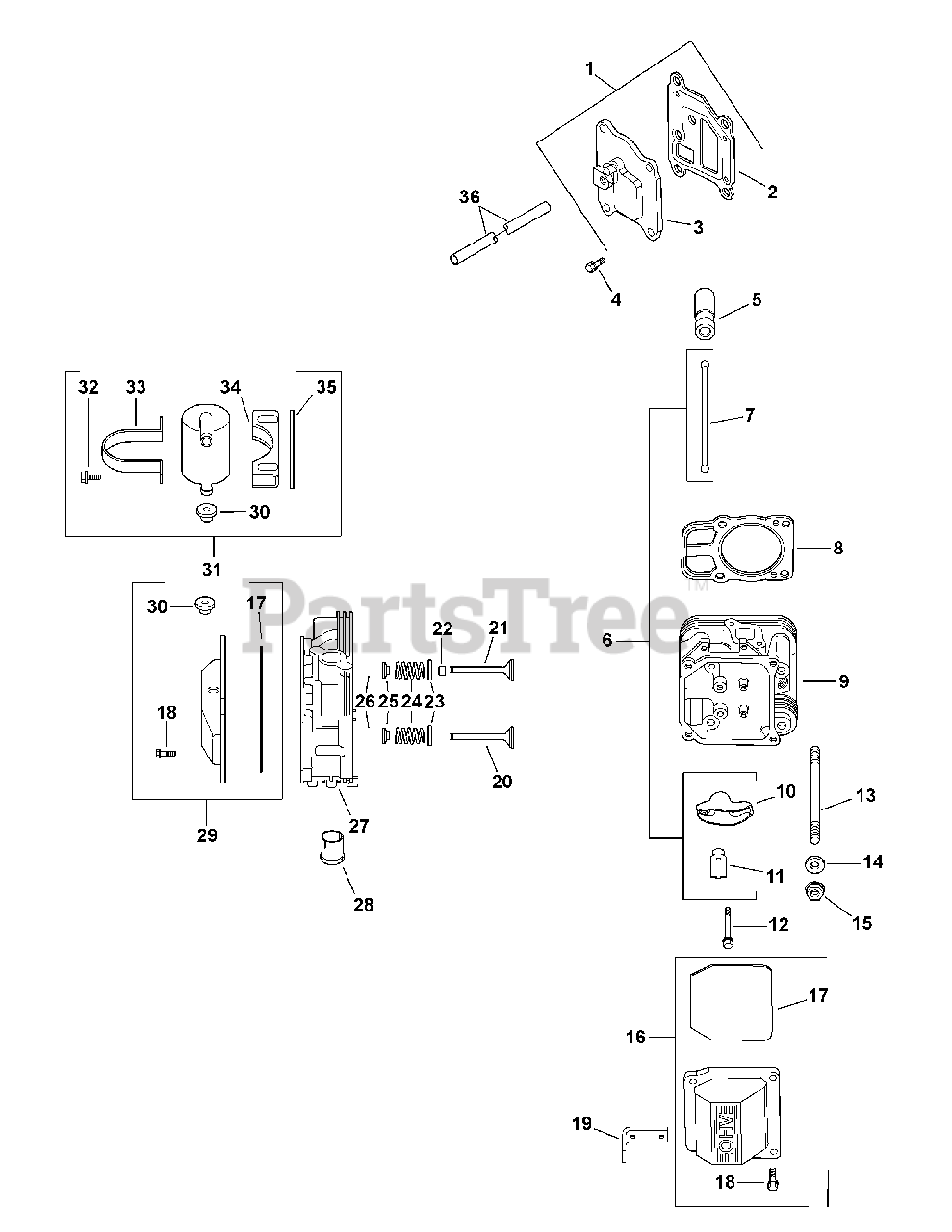

Kohler CV740-3141 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03-S

Breather Cover Kit w/ Gskt. (Inc. 2 & 3)

$

$

Currently unavailable

2

Cub Cadet KH-24-041-67-S

Breather Gasket

$13.99

$

In Stock, Qty 20+

0

3

Cub Cadet KH-24-096-87-S

Breather Cover
(Superseded to KH-24-096-125-S)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Flange Screw, M6 x 1.0 x 20
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-10-S

Hydraulic Valve Lifter Kit
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, Qty 9

0

6

Cub Cadet KH-24-755-66-S

Valve Train Kit (Inc. 7, 10 & 11)

$

$

Currently unavailable

7

Cub Cadet KH-24-411-05-S

Push Rod

$

$

Currently unavailable

8

Cub Cadet KH-24-841-03-S

Cylinder Head Gasket Kit
(Superseded to KH-24-841-04-S)

Note: (Inc. Head Mounting Hardware)

$45.99

$

In Stock, Qty 16

0

9

Cub Cadet KH-24-318-116-S

#2 Cylinder Head Assembly Kit

$

$

Not available

10

Cub Cadet KH-25-186-01-S

Rocker Arm

$

$

Currently unavailable

11

Cub Cadet KH-24-599-02-S

Rocker Arm Pivot

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-M-640034-S

Flange Screw, M6 x 1.0 x 34

$2.49

$

In Stock, Qty 18

0

13

Cub Cadet KH-24-072-09-S

Stud, M8 x 1.25

$6.49

$

In Stock, only 4 left!

0

14

Cub Cadet KH-24-468-16-S

Flat Washer, 8.6 mm

$2.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KH-24-100-10-S

Flange Nut, M8 x 1.25

$4.49

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-24-755-141-S

Plain Rocker Cover Kit (Inc. 17 & 18)

$35.99

$

In Stock, Qty 5

0

17

Cub Cadet KH-24-153-30-S

Valve Cover O-Ring

$11.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-M-651030-S

Flange Screw, M6 x 1.0 x 30
(Superseded to KH-25-086-797-S)

$2.99

$

Usually ships in 3-6 days

0

19

Cub Cadet KH-25-445-01-S

Lifting Strap
(Superseded to KH-25-445-03-S)

$

$

Not available

20

Cub Cadet KH-24-016-01-S

Exhaust Valve (STD)

$

$

Currently unavailable

20

Cub Cadet KH-24-016-02-S

Exhaust Valve (.25)

$

$

Currently unavailable

21

Cub Cadet KH-24-017-01-S

Intake Valve (STD)

$

$

Currently unavailable

21

Cub Cadet KH-24-017-02-S

Intake Valve (.25)

$

$

Currently unavailable

22

Cub Cadet KH-66-032-05-S

Valve Stem Seal
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 20+

0

23

Cub Cadet KH-235011-S

Spring Retainer

$6.49

$

In Stock, only 1 left!

0

24

Cub Cadet KH-24-089-02-S

Valve Spring

$

$

Currently unavailable

25

Cub Cadet KH-12-173-28-S

Valve Spring Cap

$

$

Currently unavailable

26

Cub Cadet KH-12-755-03-S

Retainer Kit

$5.99

$

In Stock, Qty 8

0

27

Cub Cadet KH-24-318-108-S

#1 Cylinder Head Assembly Kit
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

28

Cub Cadet KH-24-605-07-S

Exhaust Port Liner

$17.99

$

In Stock, only 2 left!

0

29

Cub Cadet KH-24-755-142-S

Breather Rocker Cover Kit (Inc. 17,18 & 30)

$38.99

$

In Stock, only 1 left!

0

30

Cub Cadet KH-25-313-03-S

Rubber Grommet

$11.99

$

In Stock, only 3 left!

0

31

Cub Cadet KH-24-755-57-S

Breather Separator Kit (Inc. 30-35)
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 6

0

32

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 13

0

33

Cub Cadet KH-24-445-02-S

Breather Strap

$

$

Currently unavailable

34

Cub Cadet KH-24-126-44-S

Breather Separator Bracket

$

$

Currently unavailable

35

Cub Cadet KH-24-112-12-S

Spacer

$

$

Currently unavailable

36

Cub Cadet KH-24-326-63-S

Breather Hose

$6.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-755-147-S

Cylinder Head Hardware Kit

Note: (Inc. 7,10-12, & 20-26) (Not Shown)

$96.99

$

In Stock, only 3 left!

0
