LZ-60 KH (53AH2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2012) Kohler CV740-3141 Engine Controls Parts Diagram

60" Tank Zero-Turn Mower, Kohler

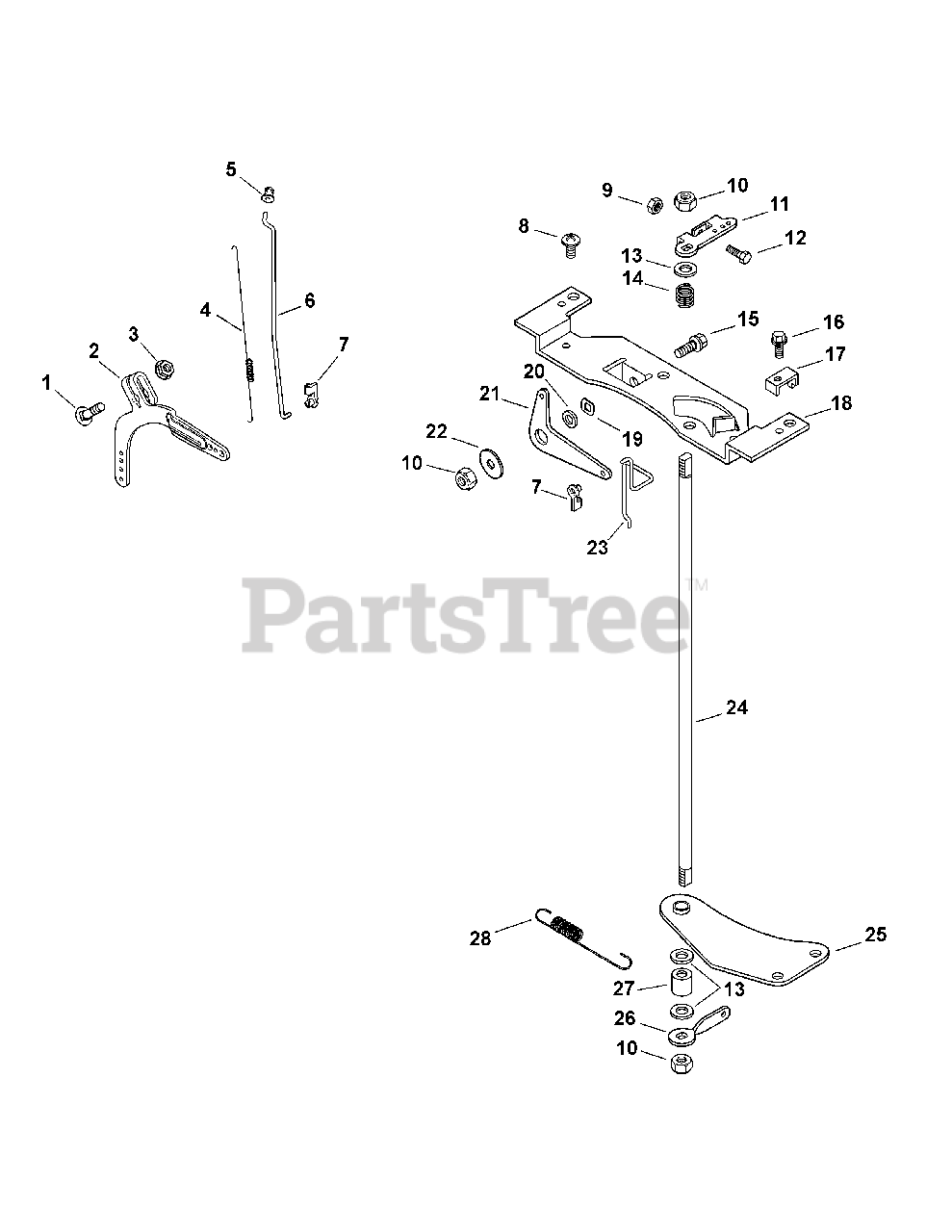

Kohler CV740-3141 Engine Controls Parts Diagram

  • Title
1

Cub Cadet KH-24-211-03-S

Bolt, M6 x 1.0 x 25

$2.49

$

In Stock, Qty 15

0

2

Cub Cadet KH-24-090-51-S

Governor Lever
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

3

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 11

0

4

Cub Cadet KH-24-089-01

Linkage Spring

$

$

Not available

5

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-079-04

Throttle Linkage

$

$

Not available

7

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

8

Cub Cadet KH-24-086-06

Screw, 11-16 x 3/4

$

$

Not available

9

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-M-647060

Lock Nut, M6 x 1.0

Note: NLA - Order from Kohler

$

$

Not available

11

Cub Cadet KH-24-090-09

Throttle Control Lever

$

$

Not available

12

Cub Cadet KH-M-401030

Cap Screw, M4 x 0.7 x 30

$

$

Not available

13

Cub Cadet KH-X-25-72

Flat Washer, 1/4

$

$

Not available

14

Cub Cadet KH-24-089-20

Throttle Shaft Spring

$

$

Not available

15

Cub Cadet KH-M-639016-S

Flange Screw, M6 x 1.0 x 16

$2.49

$

In Stock, only 2 left!

0

16

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet KH-24-126-111-S

Control Bracket
(Superseded to KH-24-126-219-S)

$37.99

$

In Stock, only 1 left!

0

19

Cub Cadet KH-277341

Spring Washer, 3/8

$

$

Not available

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-090-20

Choke Lever

Note: NLA - Order from Kohler

$

$

Not available

22

Cub Cadet 736-0173

Flat Washer, 1/4

$4.49

$

In Stock, only 4 left!

0

23

Cub Cadet KH-24-079-10

Choke Linkage

$

$

Not available

24

Cub Cadet KH-24-144-11

Throttle Shaft

Note: NLA - Order from Kohler

$

$

Not available

25

Cub Cadet KH-24-126-162-S

Throttle Shaft Bracket

$8.99

$

Usually ships in 2-5 days

0

26

Cub Cadet KH-24-090-12

Throttle Control Lever

$

$

Not available

$

$

Not available

28

Cub Cadet KH-24-089-49-S

Governor Spring

$8.49

$

In Stock, only 4 left!

0
