LZ-60 KH (53AH2PTD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler (2012) Front Axle Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kohler

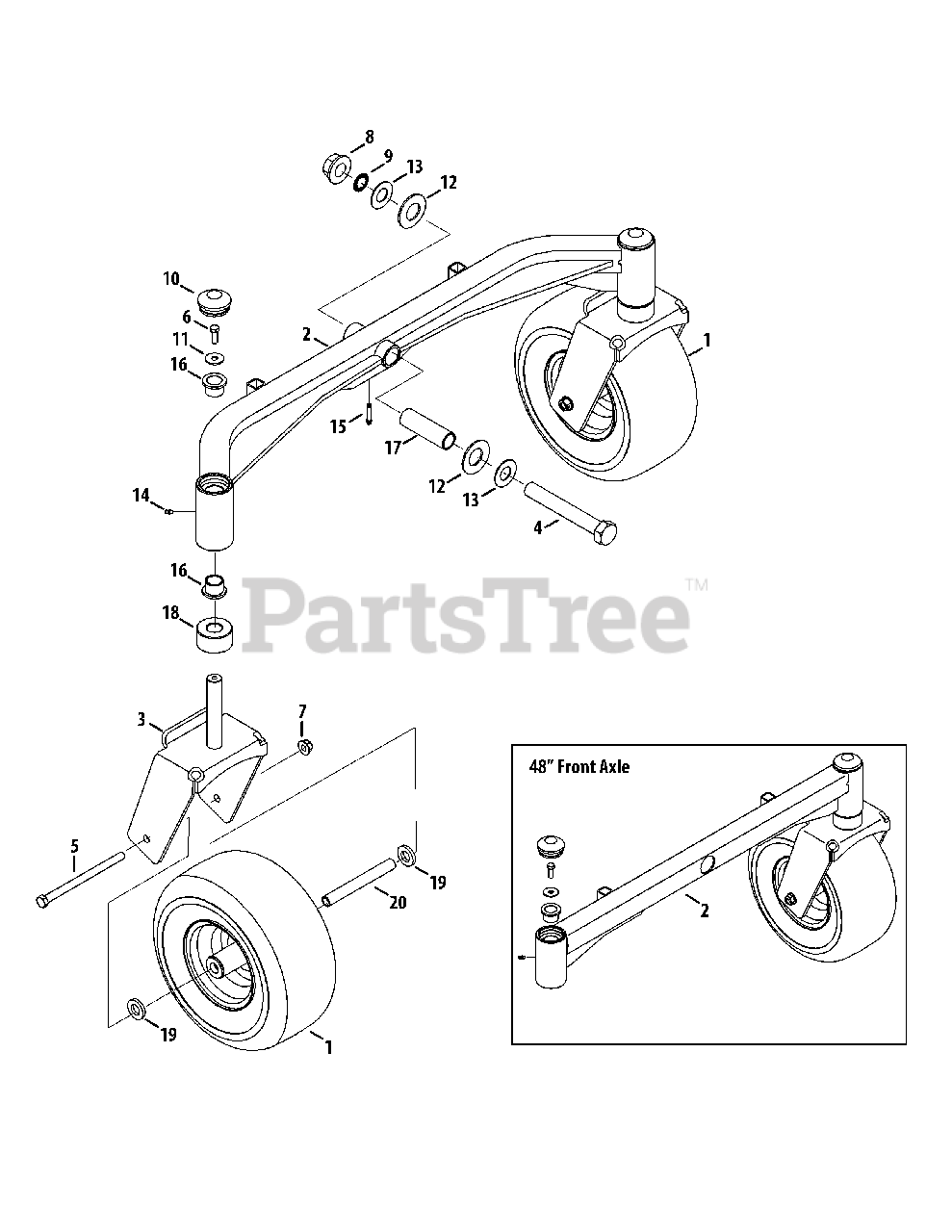

Front Axle Assembly Parts Diagram

  • Title

1

Cub Cadet 634-04750

Wheel Assembly, 13 x 6.50-6

$185.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00185-0637

Front Axle (54" & 60" deck)

$636.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00193-0637

Front Axle (48" deck)

$434.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00199-0637

Yoke, Caster Wheel

$169.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-05189

Hex Cap Screw, 1-14 x 7.0
(Superseded to 710-05189C)

$59.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05394A

Hex Cap Screw, 1/2-13 x 7.75

$10.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-3118

Hex Cap Screw, 3/8-16 x 1.00

$5.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04150

Nut, 1/2-13, Flangelock

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04310

Nut, 1.0-14, Flangelock

$9.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 716-04191

Retainer Ring

$3.99

$

In Stock, only 3 left!

0

10

Cub Cadet 731-07348

Axle Grease Cap

$8.99

$

In Stock, only 2 left!

0

11

Cub Cadet 936-0133

Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

12

Cub Cadet 736-04604

Bell Washer, 1.25 x 2.50 x .180

$8.49

$

In Stock, only 2 left!

0

13

Cub Cadet 736-04605

Washer, 1.00 x 2.00 x .075

$4.49

$

In Stock, Qty 12

0

14

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

15

Cub Cadet 737-04352

Grease Fitting, 1 39/64

$15.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 741-04488

Bearing, 1.001 x 1.25

$9.49

$

In Stock, Qty 20+

0

17

Cub Cadet 750-05438

Spacer, 1.005 x 1.247 x 4.1

$25.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 750-05446

Spacer, Spacer, 1.010 x 2.45 x 1.298

$15.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05553

Spacer, .812 ID x .218 LG

$9.99

$

In Stock, Qty 20+

0

20

Cub Cadet 750-05625

Spacer, .515 x .749 x 6.313

$13.99

$

In Stock, Qty 20+

0
