LZ-54 KW (53YI2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2016) Electrical Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

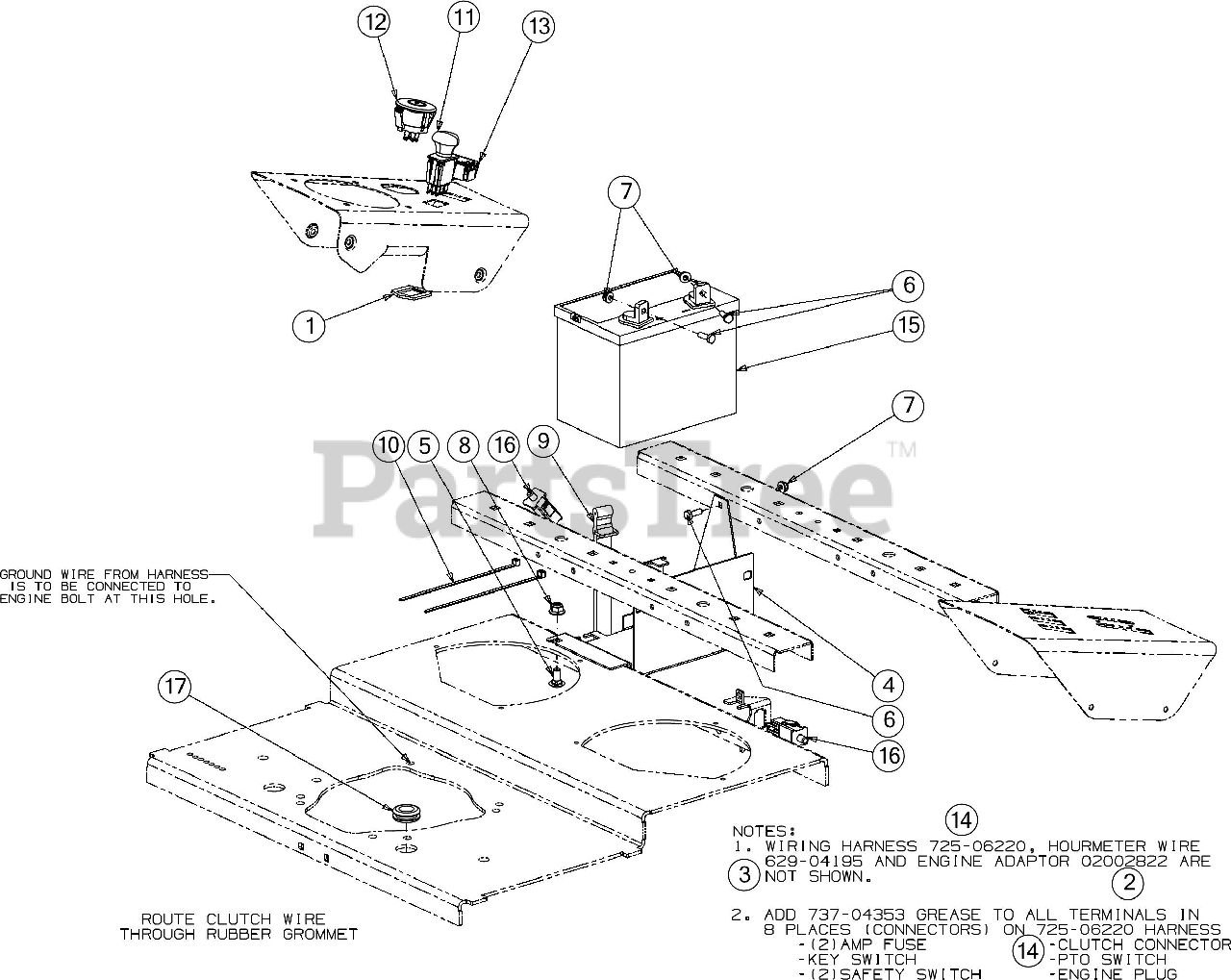

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

PTO SWITCH BRACKET

$27.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02002822

HARNESS ADAPTER

$22.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 729-0223

ELECTRICAL CONNECTOR

Note: (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-3175

CONVOLUTED CONDUIT

Note: (Not Shown)

$

$

Not available

3

Cub Cadet 929-04195

HOURMETER HARNESS

$8.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07855-0637

BATTERY BRACKET

$47.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

In Stock, Qty 10

0

6

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$29.99

$

In Stock, only 4 left!

0

10

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 925-04174

ELECTRIC PTO SWITCH
(Superseded to 925-04174A)

$70.99

$

In Stock, only 4 left!

0

12

Cub Cadet 925-04228

KEY SWITCH 3 POSITION

$39.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-05438

HOURMETER

$104.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-06220

HARNESS

$293.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 925-1707D

BATTERY

$

$

Not available

16

Cub Cadet 925-3164A

PLUNGER SWITCH

$40.99

$

In Stock, only 2 left!

0

17

Cub Cadet 735-04285

RUBBER GROMMET

$3.99

$

Usually ships in 3-6 days

0
