LZ-54 KW (53YI2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2016) Deck Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

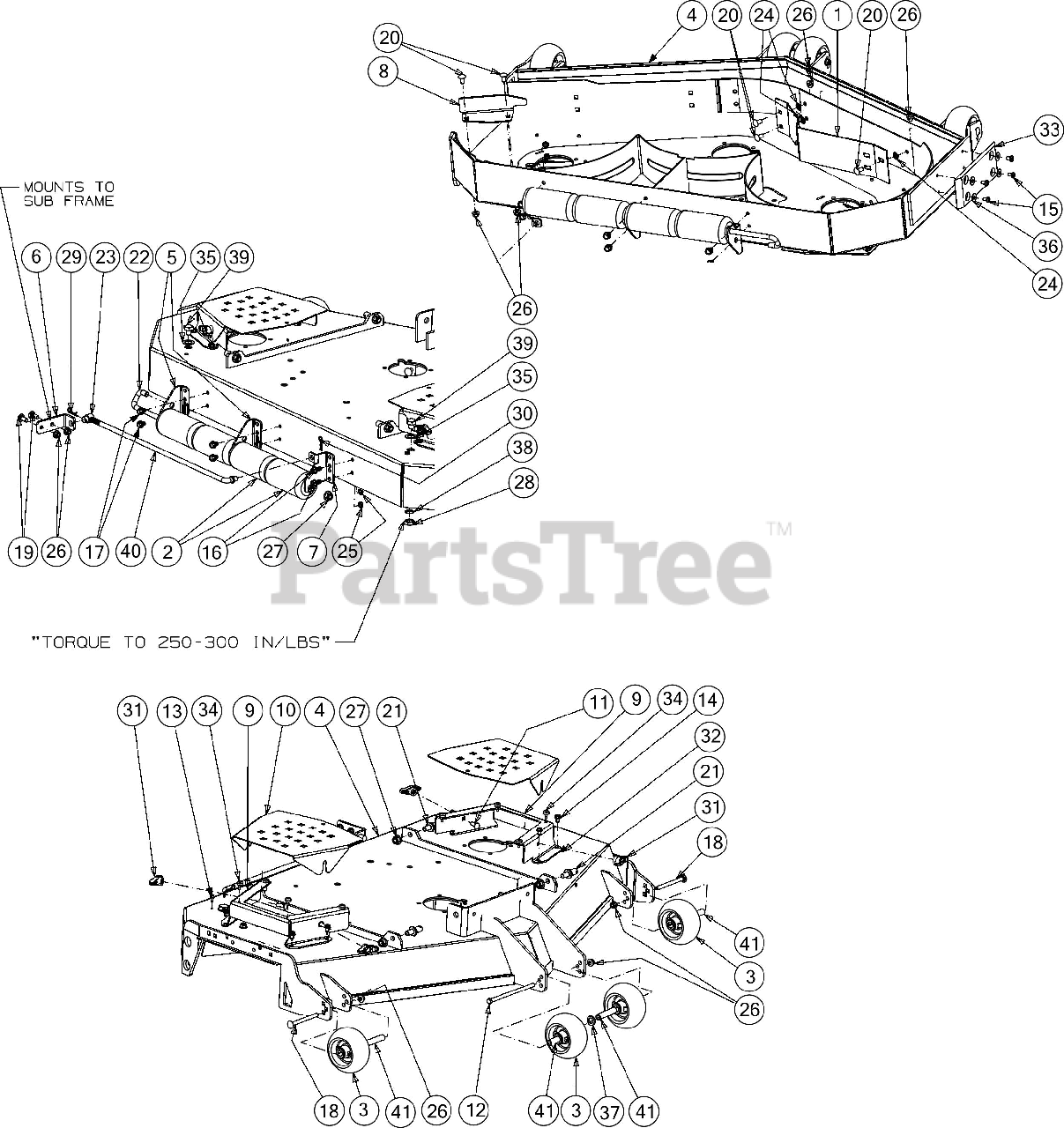

Deck Parts Diagram

  • Title

1

Cub Cadet 02005693-0637

BAFFLE - 54
(Superseded to 703-26732-0637)

$36.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 631-05115

ROLLER ASSEMBLY

$26.99

$

In Stock, only 3 left!

0

2

Cub Cadet 741-0248

FLANGE BEARING

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 634-3159

WHEEL ASSEMBLY 5"

$34.99

$

In Stock, Qty 20+

0

3

Cub Cadet 937-0280

GREASE FITTING
(Superseded to 737-0280)

Note: (Not Shown)

$7.99

$

In Stock, Qty 8

0

3

Cub Cadet 741-0487C

FLANGE BEARING

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00334-0637

54" DECK ASSEMBLY
(Superseded to 759-05120B)

$1424.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-09137-0637

REAR MOUNT BRACKET
(Superseded to 703-09137A-0637)

$23.99

$

In Stock, only 3 left!

0

6

Cub Cadet 703-09380-0637

DECK MOUNT BRACKET

$23.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09579-0637

REAR ROLLER BRACKET (RH)

$33.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-09593-0637

DECK CHUTE BAFFLE
(Superseded to 703-09593A-0637)

$28.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-09921-4021

DECK BELT COVER BRACKET

$73.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-09922-4021

DECK BELT COVER

$73.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 14

0

12

Cub Cadet 710-04692

SCREW 3/8-16 x 7.25 GR5

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 710-06156

SCREW 5/16-18.0 x 5

$5.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, only 2 left!

0

17

Cub Cadet 710-0773

SCREW 3/8-16 x .500

$7.49

$

In Stock, only 3 left!

0

18

Cub Cadet 710-1649

CARRIAGE BOLT 3/8-16 x 4.25 GR5

$17.99

$

In Stock, only 2 left!

0

19

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

22

Cub Cadet 711-05664

ROLLER PIN

$22.99

$

In Stock, only 1 left!

0

23

Cub Cadet 911-0770

FERRULE

$

$

Not available

24

Cub Cadet 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 11

0

26

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

28

Cub Cadet 912-0641

HEX NUT
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

29

Cub Cadet 914-0145

INTERNAL COTTER PIN
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 914-04023

COTTER PIN
(Superseded to 714-04023)

$4.49

$

In Stock, only 4 left!

0

31

Cub Cadet 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 5

0

32

Cub Cadet 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-10336

SKID PLATE GUARD

$67.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 735-0271A

BUMPER, .62 DIA x .3

$8.99

$

In Stock, only 4 left!

0

35

Cub Cadet 936-0287

FLAT WASHER .793ID x 1.24OD x .060
(Superseded to 736-0287)

$

$

Not available

36

Cub Cadet 736-0371

FLAT WASHER

$4.49

$

In Stock, only 3 left!

0

37

Cub Cadet 736-04296

FLAT WASHER .632X1.00X.16

$3.49

$

In Stock, only 1 left!

0

38

Cub Cadet 936-0760

LOCK WASHER

$4.49

$

In Stock, Qty 13

0

39

Cub Cadet 738-04146

DECK WASH PLUG

$9.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-06273

DECK SUPPORT ROD

$58.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 750-3193

WHEEL SPACER .38ID x 3.04LG

$18.99

$

In Stock, Qty 20+

0
