LZ-54 KW (53YI2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower, Kawasaki (2015) Fuel Tank Assembly Parts Diagram

54" Tank Zero-Turn Mower, Kawasaki

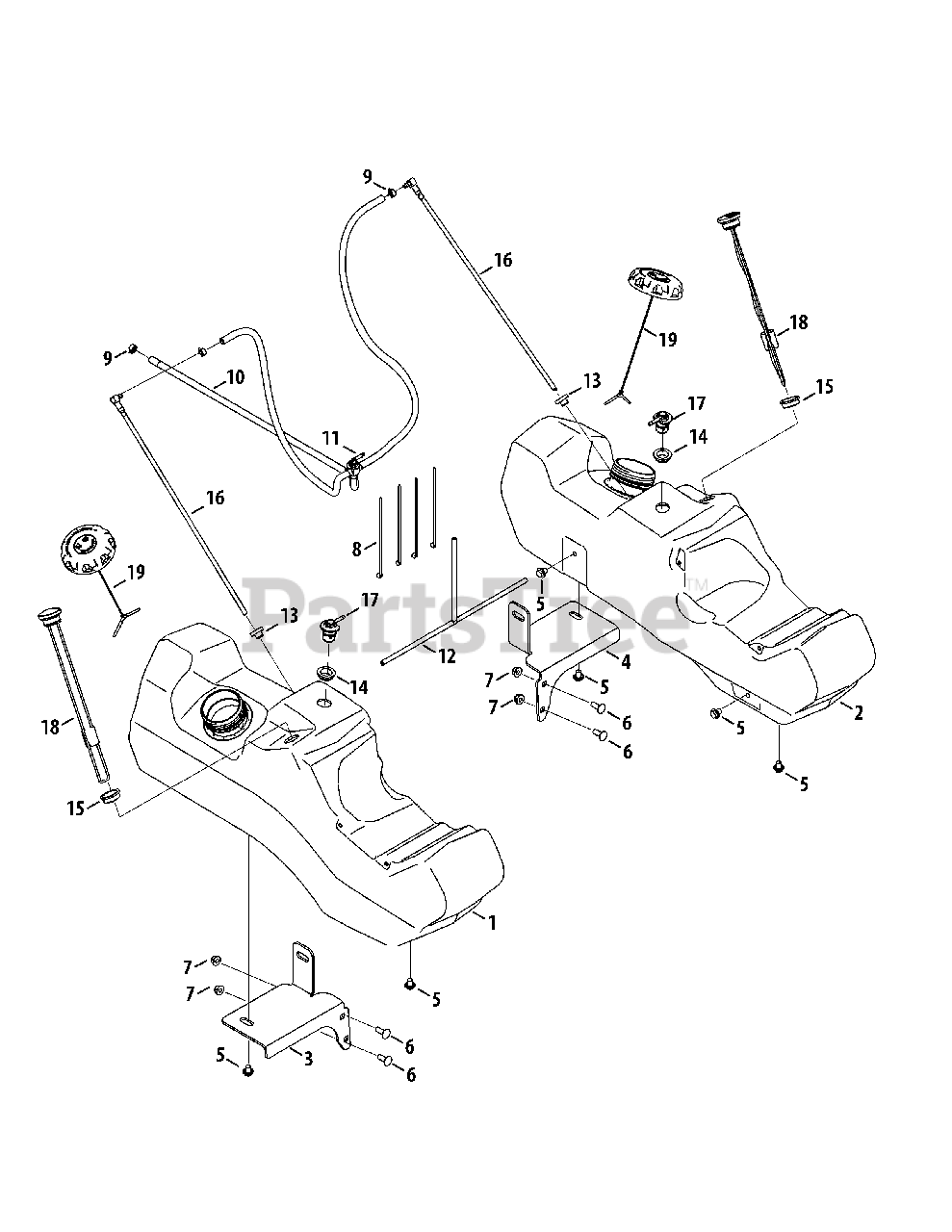

Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 651-04319A

Fuel Tank Assembly, RH

$752.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 651-04320A

Fuel Tank Assembly, LH

$684.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08484-0637

Rear Fuel Bracket, RH

$47.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08495-0637

Rear Fuel Bracket, LH

$47.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-05412

Hex Cap Screw, 3/8-16 x .500

$3.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x .500

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 726-04123A

Hose Clamp, .500 Dia.

$3.99

$

In Stock, Qty 6

0

10

Cub Cadet 751-10349-84

Fuel Hose., 1/4

$59.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 751-12484

Fuel Switch

$41.99

$

In Stock, only 1 left!

0

12

Cub Cadet 751-12282

Fuel Hose Assembly includes:
(Superseded to 751-12282A)

$75.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751-12282

Hose, 3/16" Fuel Line (in inches)
(Superseded to 751-12282A)

$75.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 737-04341

Tee Fitting, Fuel

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 02002253

Grommet, Fuel Tank

$4.99

$

In Stock, only 2 left!

0

14

Cub Cadet 735-05014

Grommet, .755 x .955 x .55

$16.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 735-05015

Grommet, 1.58 OD x 1.21 ID x .5

$16.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-12117

Fuel Pickup Valve

$27.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-10375

Fuel Rollover Valve

$77.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-12366

Fuel Gauge

$93.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 951-12754

Fuel Cap

$49.99

$

In Stock, only 4 left!

0
