LZ-54 (53AH2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower (2013) Control Group Parts Diagram

54" Tank Zero-Turn Mower

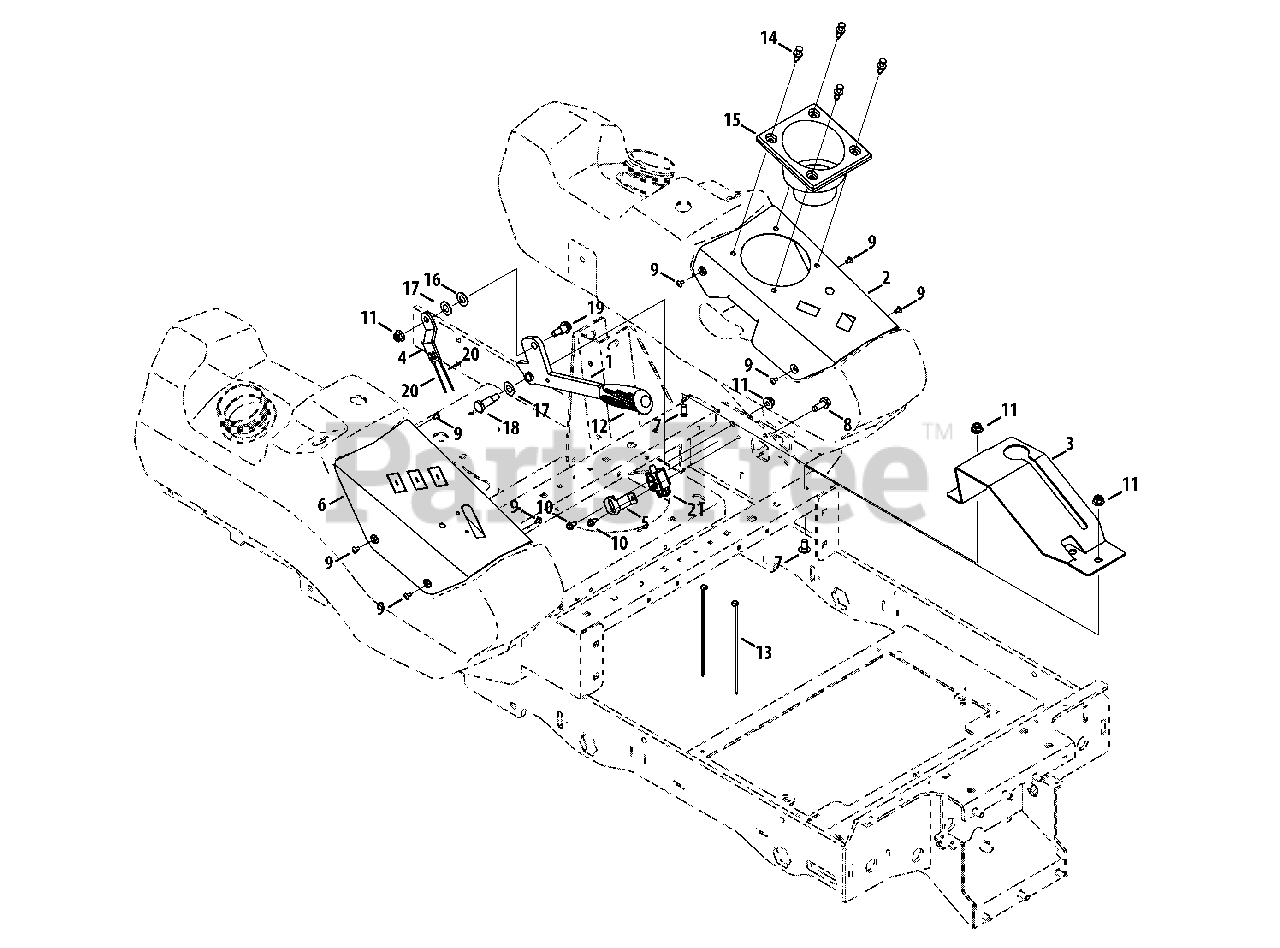

Control Group Parts Diagram

  • Title

1

Cub Cadet 680-00191A-0637

Brake Handle Weldment

$

$

Not available

2

Cub Cadet 703-08123-4021

LH Control Panel

$41.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-08209-0637

Boot Brake Bracket

$

$

Not available

4

Cub Cadet 703-08337A

Pivot Brake Bracket

$

$

Not available

5

Cub Cadet 703-08370-0637

Brake Switch Bracket

$

$

Not available

6

Cub Cadet 703-08482-4021

RH Control Panel

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 10

0

8

Cub Cadet 710-04683A

Screw, 3/8-16 x 1.00
(Superseded to 710-04683C)

$6.49

$

In Stock, only 2 left!

0

9

Cub Cadet 710-05421

Machine Screw, #10-32 x .25

$3.99

$

In Stock, only 3 left!

0

10

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 720-04139B

Grip, .50 ID

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

14

Cub Cadet 728-0199

Rivet, .3125

$4.49

$

In Stock, Qty 15

0

15

Cub Cadet 731-08438

Cup Holder

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 936-0272

Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 936-3013

Washer, .531 x 1.00 x .030
(Superseded to 736-3013)

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet 738-0966A

Shoulder Bolt, .50 x .925, 3/8-16

$4.99

$

In Stock, Qty 19

0

19

Cub Cadet 738-1007

Shoulder Screw, .50 x .50, 3/8-16

$

$

Not available

20

Cub Cadet 946-04734

Brake Cable

$35.99

$

In Stock, only 2 left!

0

21

Cub Cadet 725-04232

Switch, NC/NO/NO

$49.99

$

In Stock, only 3 left!

0
