LZ-54 (53AH2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower (2012) Kohler CV730-3150 Oil Pan & Lubrication Parts Diagram

54" Tank Zero-Turn Mower

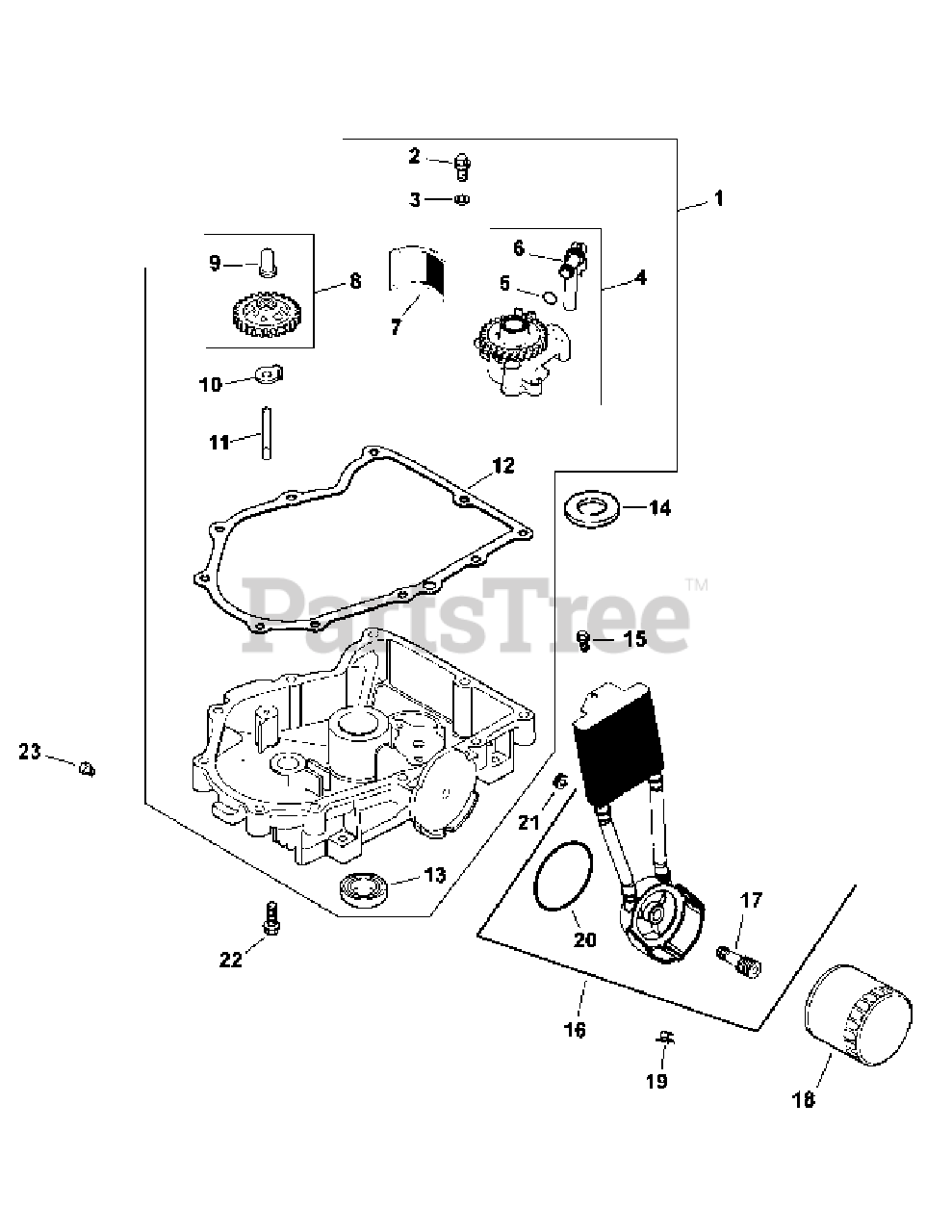

Kohler CV730-3150 Oil Pan & Lubrication Parts Diagram

  • Title

1

Cub Cadet KH-24-199-21-S

Kit Oil Pan Assembly (Inc. 2-13)
(Superseded to KH-24-199-35-S)

$337.99

$

In Stock, only 1 left!

0

2

Cub Cadet KH-M-645025-S

Flange Screw, M6 x 1.0 x 25
(Superseded to KH-25-086-395-S)

$2.49

$

In Stock, only 3 left!

0

3

Cub Cadet KH-M-631005

Flat Washer, 6 mm

$

$

Not available

4

Cub Cadet KH-24-393-53-S

Oil Pump Assembly Kit (Inc. 5 & 6)

$

$

Not available

5

Cub Cadet KH-24-153-01

Oil Pick-Up O-Ring

$

$

Not available

6

Cub Cadet KH-24-381-11-S

Oil Pick-Up Tube Kit

$

$

Not available

7

Cub Cadet KH-24-162-26-S

Oil Screen

$17.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-24-043-12

Governor Gear Kit w/Pin (Inc. 9)

$

$

Not available

9

Cub Cadet KH-12-380-01

Governor Regulating Pin

$

$

Not available

10

Cub Cadet KH-24-448-02-S

Locking Tab

$2.49

$

In Stock, Qty 20+

0

11

Cub Cadet KH-12-144-02

Governor Gear Shaft

$

$

Not available

12

Cub Cadet KH-24-041-54-S

Oil Pan Gasket Kit (Select-A-Seal)
(Superseded to KH-24-041-66-S)

$25.99

$

In Stock, Qty 8

0

13

Cub Cadet KH-25-032-06-S

Oil Seal

$10.99

$

In Stock, Qty 20+

0

14

Cub Cadet KH-24-422-05-S

Thrust Shim (Black .686 mm)

$20.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-086-12

Tap Screw, M6 x 1.7 x 18

$

$

Not available

16

Cub Cadet KH-54-755-21-S

Oil Cooler Kit (Inc. 17 & 20)

$257.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-24-136-05-S

Oil Filter Nipple
(Superseded to KH-24-136-08-S)

$

$

Not available

18

Cub Cadet KH-12-050-01-S

Oil Filter

$13.99

$

In Stock, Qty 20+

0

19

Cub Cadet KH-25-100-37-S

Plastic Nut (Black)

$2.49

$

In Stock, Qty 9

0

20

Cub Cadet KH-24-153-21-S

Oil Cooler O-Ring

$6.49

$

In Stock, Qty 15

0

21

Cub Cadet KH-25-139-62-S

Countersink Pipe Plug, 3/8

$3.49

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-086-17-S

Flange Screw, M8 x 1.25 x 45

$2.49

$

In Stock, Qty 5

0

23

Cub Cadet KH-52-139-02

Pipe Plug, 3/8

$

$

Not available
