LZ-54 (53AH2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower (2012) Kohler CV730-3150 Engine Controls Parts Diagram

54" Tank Zero-Turn Mower

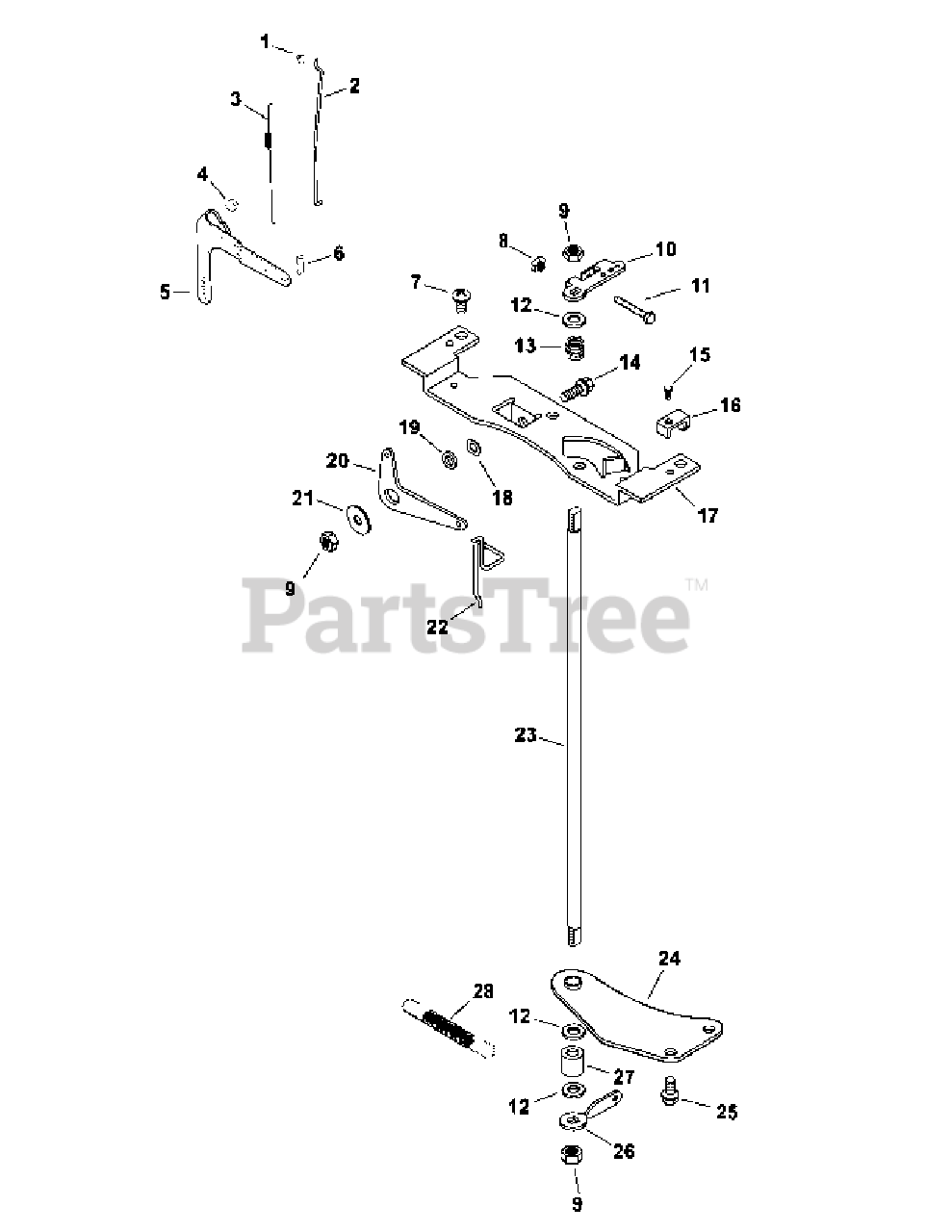

Kohler CV730-3150 Engine Controls Parts Diagram

  • Title

1

Cub Cadet KH-25-158-08

Linkage Retaining Bushing

$5.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-079-04

Throttle Linkage

$

$

Not available

3

Cub Cadet KH-24-089-01

Linkage Spring

$

$

Not available

4

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-24-090-57-S

Governor Lever
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-158-11

Throttle Linkage Bushing

$

$

Not available

7

Cub Cadet KH-24-086-06

Screw, 11-16 X 3/4

$

$

Not available

8

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-M-647060

Lock Nut, M6 x 1.0

$

$

Not available

10

Cub Cadet KH-24-090-09

Throttle Control Lever

$

$

Not available

11

Cub Cadet KH-M-401030

Cap Screw, M4 x .7 X 30

$

$

Not available

12

Cub Cadet KH-X-25-72

Flat Washer, 1/4

$

$

Not available

13

Cub Cadet KH-24-089-20

Throttle Shaft Spring

$

$

Not available

14

Cub Cadet KH-M-639016-S

Flange Screw, M6 x 1.0 x 16

$2.49

$

In Stock, Qty 6

0

15

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KH-12-237-01

Cable Clamp
(Superseded to KH-25-237-53-S)

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-24-126-219-S

Control Bracket

$37.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-277341

Spring Washer, 3/8

$

$

Not available

19

Cub Cadet KH-25-431-01-S

Spacer

$7.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-090-20

Choke Lever

$

$

Not available

21

Cub Cadet 736-0173

Flat Washer, 1/4

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet KH-24-079-10

Choke Linkage

$

$

Not available

23

Cub Cadet KH-24-144-11

Throttle Shaft

$

$

Not available

24

Cub Cadet KH-24-126-162-S

Throttle Shaft Bracket

$8.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-M-645016-S

Flange Screw, M6 x 1.0 x 16

$3.99

$

In Stock, Qty 15

0

26

Cub Cadet KH-24-090-12

Throttle Control Lever

$

$

Not available

27

Cub Cadet KH-24-112-10

Spacer

$

$

Not available

28

Cub Cadet KH-24-089-46-S

Governor Spring (Black)

$8.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-211-03-S

Bolt, M6 x 1.0 x 25

Note: (Not Shown)

$2.49

$

In Stock, Qty 15

0
