LZ-54 (53AH2PTC050) - Cub Cadet 54" Tank Zero-Turn Mower (2012) Kohler CV730-3150 Crankcase Parts Diagram

54" Tank Zero-Turn Mower

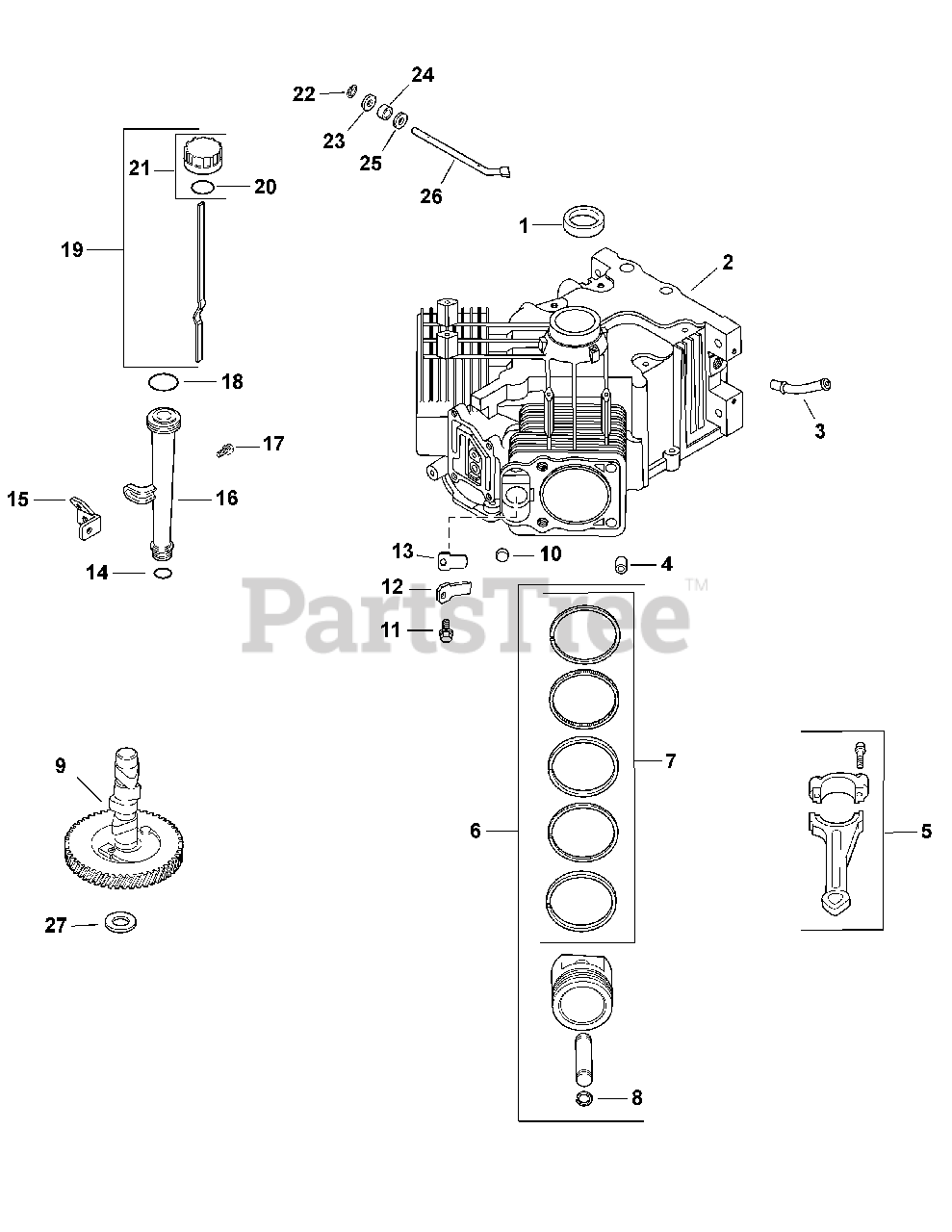

Kohler CV730-3150 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-19-S

Oil Seal

$7.49

$

In Stock, Qty 20+

0

2

Cub Cadet N/A

Crankcase

Note: (Use shortblock or miniblock)

$

$

Currently unavailable

3

Cub Cadet KH-24-294-13

Fitting

$

$

Not available

4

Cub Cadet KH-24-380-16-S

Locating Pin

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-28-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, Qty 6

0

5

Cub Cadet KH-24-067-29-S

Connecting Rod (.25)
(Superseded to KH-25-067-05-S)

$59.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-01-S

Piston Kit w/ Ring (STD) (Inc. 7 & 8)
(Superseded to KH-25-874-13-S)

$270.99

$

In Stock, only 2 left!

0

6

Cub Cadet KH-25-874-02-S

Piston Kit w/ Ring (.08)
(Superseded to KH-25-874-07-S)

$261.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-25-874-03-S

Piston Kit w/ Ring (.25)
(Superseded to KH-25-874-16-S)

$261.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-25-874-04-S

Piston Kit w/ Ring (.50)
(Superseded to KH-25-874-17-S)

$261.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-14-S

Piston Ring Set (STD)

$

$

Not available

7

Cub Cadet KH-24-108-15-S

Piston Ring Set (.08)

$103.99

$

In Stock, only 3 left!

0

7

Cub Cadet KH-24-108-16-S

Piston Ring Set (.25)

$103.99

$

In Stock, only 2 left!

0

7

Cub Cadet KH-24-108-17-S

Piston Ring Set (.50)

$

$

Not available

8

Cub Cadet KH-24-018-01-S

Piston Pin Retainer

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-24-012-16-S

Camshaft Kit
(Superseded to KH-24-012-25-S)

$165.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-52-139-09-S

Cup Plug

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-M-0545010

Flange Screw, M5 x 0.8 x 10

$

$

Not available

12

Cub Cadet KH-24-018-04-S

Breather Reed Retainer

$2.49

$

In Stock, only 2 left!

0

13

Cub Cadet KH-24-402-05-S

Breather Reed
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-12-153-01-S

Lower Oil Fill Tube O-Ring

$4.99

$

In Stock, Qty 17

0

15

Cub Cadet KH-24-126-19

Oil Fill Tube Bracket
(Superseded to KH-24-126-243-S)

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-32-755-04-S

Oil Fill Assembly Tube

$

$

Not available

17

Cub Cadet KH-M-545016-S

Flange Screw, M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-12-153-02-S

Upper Oil Fill Tube O-Ring

$2.49

$

In Stock, Qty 8

0

19

Cub Cadet KH-24-038-04-S

Dipstick Assembly (Inc. 20 & 21)

$19.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-25-153-02-S

Dipstick O-Ring

$2.49

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-755-46

Oil Fill Cap Kit (Yellow)

$

$

Not available

22

Cub Cadet KH-24-018-09-S

Ring Retainer

$2.49

$

Usually ships in 2-5 days

0

23

Cub Cadet KH-M-931010-S

Flat Washer, 9 mm

$2.49

$

In Stock, only 2 left!

0

24

Cub Cadet KH-28-032-09-S

Governor Cross Shaft Seal

$3.49

$

In Stock, Qty 7

0

25

Cub Cadet KH-24-468-15-S

Flat Washer, 1/4"

$2.49

$

In Stock, Qty 5

0

26

Cub Cadet KH-24-144-38-S

Governor Cross Shaft
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KH-12-422-07-S

Camshaft Shim (White .028")

$4.49

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-357-14-S

Camshaft Lubricant

Note: (Not Shown)

$2.49

$

In Stock, only 3 left!

0

Cub Cadet KH-24-522-331

Short Block

Note: (Not Shown)

$2107.99

$

Usually ships in 2-5 days

0
