LZ 5227 TXPKOA (968999309) - Husqvarna 52" Zero-Turn Mower (2007-04) Cutting Deck 52 Inch Parts Diagram

52" Zero-Turn Mower

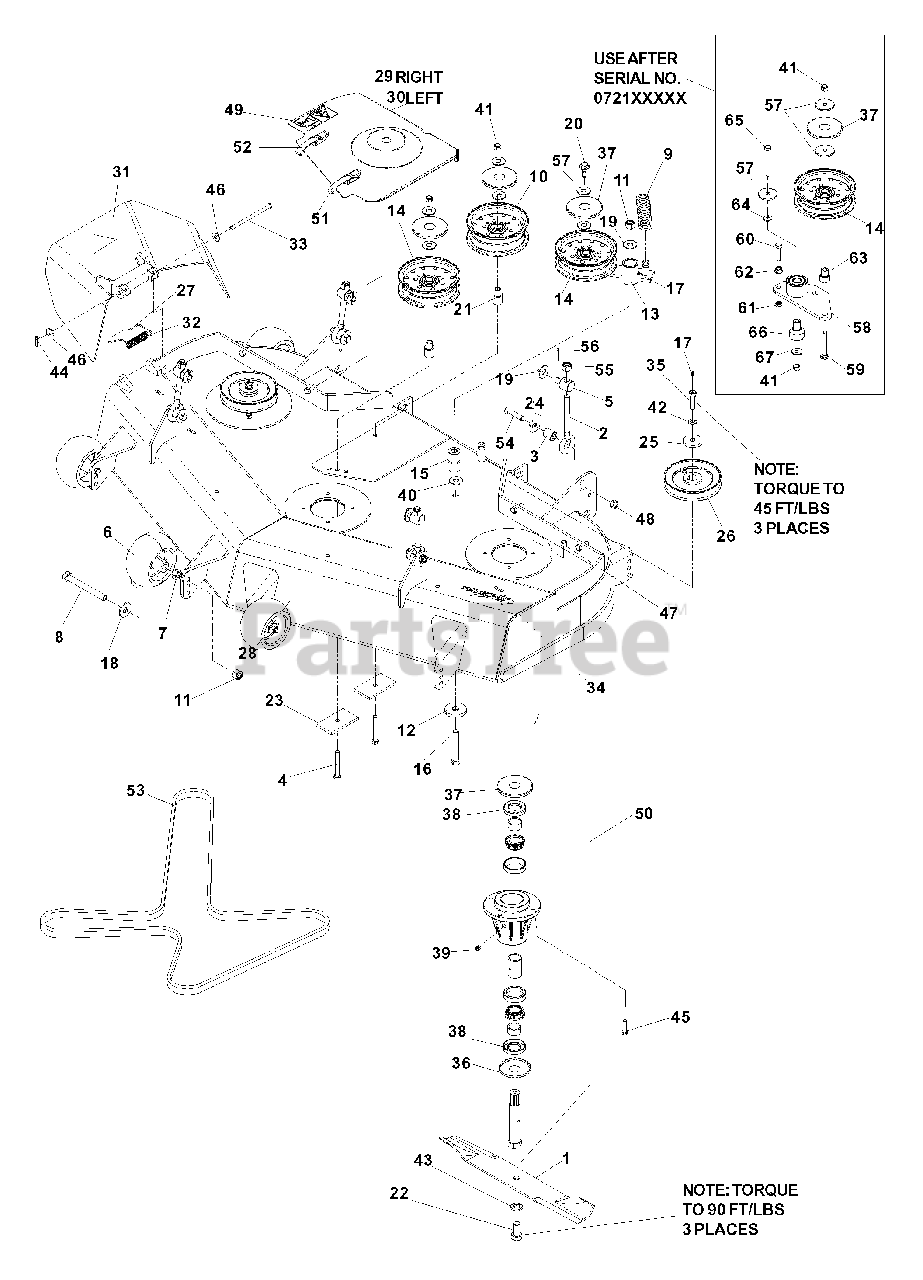

Cutting Deck 52 Inch Parts Diagram

  • Title

1

Husqvarna 539100341

BLADE, 18"

$

$

Not available

2

Husqvarna 539119227

EYE BOLT

$18.99

$

In Stock, only 3 left!

0

3

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102612

HCS, 3/8 -16 x 2 3/4,

$5.99

$

In Stock, only 3 left!

0

5

Husqvarna 539114405

SWIVEL

$17.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539107610

ROLLER, ANTI SCALP
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

7

Husqvarna 539990258

NUT, 1/2 -13

$4.99

$

In Stock, Qty 14

0

8

Husqvarna 539118862

HHB, 1/2 -13 x 4
(Superseded to 539108366)

$6.99

$

In Stock, Qty 17

0

9

Husqvarna 539105192

SPRING, EXTENSION

$

$

Not available

10

Husqvarna 539103258

PULLEY, IDLER

$53.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101331

NUT, 1/2 -13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 539102243

WASHER,65

$

$

Not available

13

Husqvarna 539103230

IDLER ARM

$

$

Not available

14

Husqvarna 539103257

PULLEY, IDLER

$74.99

$

In Stock, only 1 left!

0

15

Husqvarna 539103427

BUSHING, PIVOT

$9.49

$

In Stock, only 4 left!

0

16

Husqvarna 539103433

HCS, 1/2 -13 x 3 1/4,

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 539976998

ZERK, STRAIGHT, 1/4 -28
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

18

Husqvarna 539109554

WASHER, 1/2

$

$

Not available

19

Husqvarna 539990550

WASHER, 9/16

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990582

HCS, 3/8 -16 x 1,

$

$

Not available

21

Husqvarna 539103295

BUSHING, IDLER

$14.99

$

In Stock, only 4 left!

0

22

Husqvarna 539103299

HCS, 5/8 -18 x 1 1/4,

$

$

Not available

23

Husqvarna 539103303

PAD
(Superseded to 539106504)

$

$

Not available

24

Husqvarna 539112484

SPRING WASHER, 1/2

$9.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539106504

WASHER,469

$

$

Not available

26

Husqvarna 539112124

PULLEY

$45.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

28

Husqvarna 539111377

DECK W/DECALS

$

$

Not available

29

Husqvarna 539109652

BELT SHIELD, RIGHT

$339.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539109653

BELT SHIELD, LEFT

$303.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539110733

DISCHARGE CHUTE

$53.99

$

In Stock, only 2 left!

0

32

Husqvarna 539110735

SPRING, TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

33

Husqvarna 539110736

PIN-CLEVIS, 5/16 DIA. x 5.19

$3.49

$

Usually ships in 3-10 days

0

34

Husqvarna 539111561

DECAL, TUNNELRAM

$8.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539112120

HCS, 7/16 -20 x 1 1/2, GR8

$30.99

$

In Stock, only 1 left!

0

36

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

37

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

38

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 9

0

39

Husqvarna 539977326

PLUG, VENTED

$13.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539113104

WASHER, 1/2

$4.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539976979

NUT, 3/8 -16, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

42

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

43

Husqvarna 539990333

LOCKWASHER, 5/8

$1.99

$

In Stock, Qty 6

0

44

Husqvarna 539990365

PIN COTTER, 1/8 x 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

45

Husqvarna 539990627

HCS, 5/16 -18 x 1 1/4,

$4.99

$

In Stock, only 2 left!

0

46

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

47

Husqvarna 539990717

NUT, 5/16 -18, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990839

NUT, 7/16 -14, CNTRLK, GR A

$3.99

$

In Stock, only 3 left!

0

49

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

50

Husqvarna 539114820

SPINDLE ASSEMBLY
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

51

Husqvarna 539110740

POP RIVET

$

$

Not available

52

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539106884

DECK BELT
(Superseded to 510201201)

$

$

Not available

54

Husqvarna 539108073

HCS, 7/16 -14 x 1 3/4,

$3.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539101331

NUT, 1/2 -13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

56

Husqvarna 539109246

PIN, COTTER, 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539111897

WASHER, 3/8 , SPEC

$

$

Not available

58

Husqvarna 539130391

ARM, IDLER, W/BEARINGS

$

$

Not available

59

Husqvarna 539130235

RHSNB, 3/8 -16 x 2 3/4,

$3.99

$

Usually ships in 3-10 days

0

60

Husqvarna 539107042

HCS, 3/8 -16 x 1 1/2, GR8

$3.99

$

In Stock, Qty 6

0

61

Husqvarna 539109332

NUT, 3/8 -16, JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

62

Husqvarna 539990613

NUT, 3/8 -16, WHIZLK

$3.99

$

Usually ships in 3-10 days

0

63

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, Qty 5

0

64

Husqvarna 539990122

WASHER, 3/8 , SAE
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 539101341

HCS, 3/8-16 x 3,

$5.99

$

In Stock, Qty 10

0

66

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

67

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0
