LZ 5227 TXPKOA (968999309) - Husqvarna 52" Zero-Turn Mower (2007-04) Chassis / Frame (Part 2) Parts Diagram

52" Zero-Turn Mower

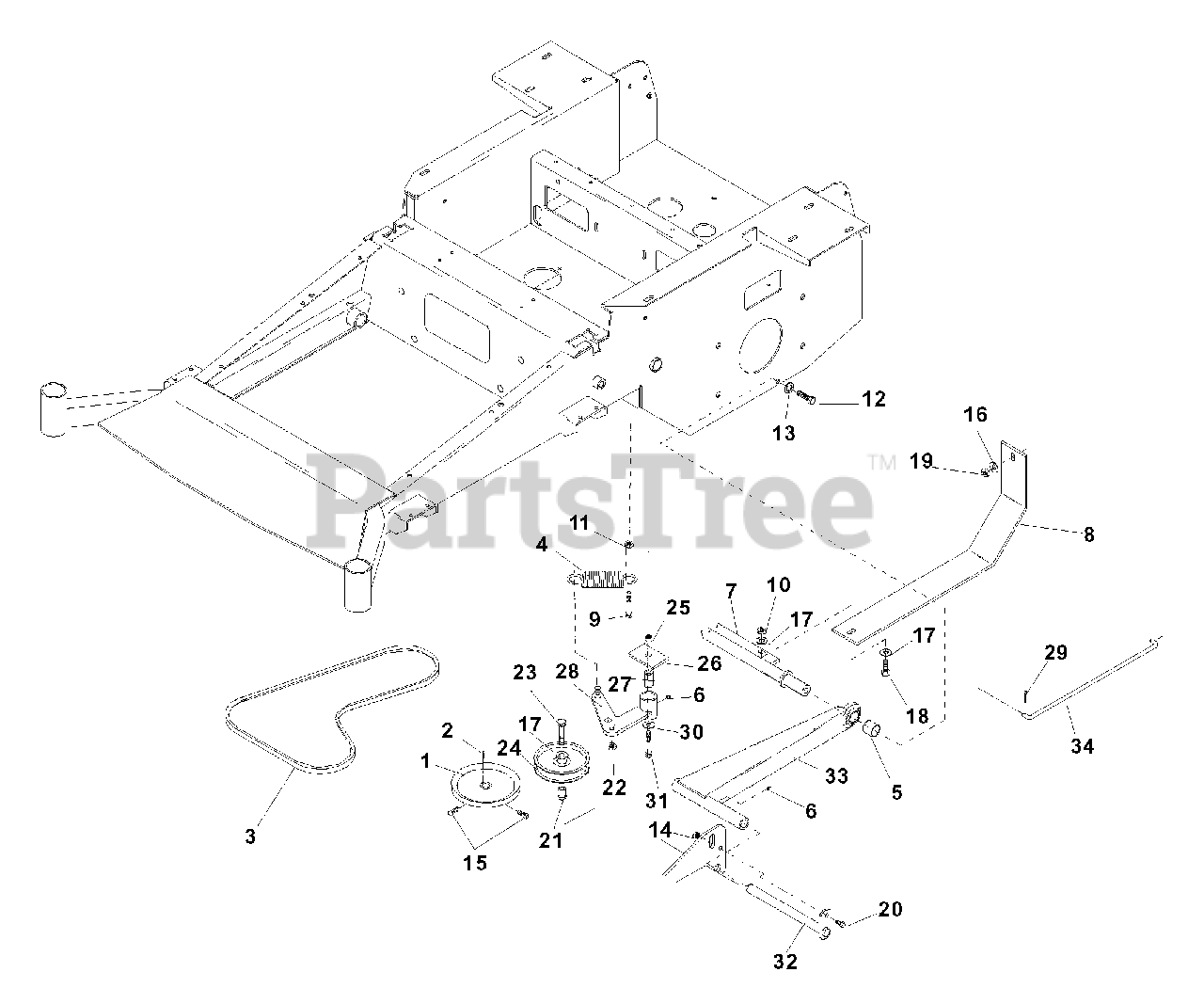

Chassis / Frame (Part 2) Parts Diagram

  • Title

$

$

Not available

2

Husqvarna 539101177

KEY, 5MM SQ x 25MM

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 8

0

$12.99

$

In Stock, Qty 6

0

5

Husqvarna 539104521

STRUT SPACER

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

7

Husqvarna 539104332

CROSS SHAFT

$

$

Not available

8

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990655

HCS, 3/8 C x 1 1/2

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539976979

NUT, 3/8C, NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990613

NUT, 3/8 C, WHIZ

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539105905

HCS, 7/16 C x 1, GR8

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990247

LOCKWASHER, 7/16

$

$

Not available

14

Husqvarna 539990717

NUT, 5/16C, NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539110631

ROLL PIN, 5/16

$3.99

$

In Stock, Qty 16

0

16

Husqvarna 539990692

WASHER, 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 539990517

WASHER, 3/8

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539990563

HCS, 3/8 C x 1

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539990184

NUT, 5/16C, CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990209

HCS, 5/16C x 1

$1.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

22

Husqvarna 539990546

NUT, 3/8C, CENTERLOCK

$

$

Not available

23

Husqvarna 539990730

HCS, 3/8 C x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

25

Husqvarna 539101331

NUT, 1/2C, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539102236

SUPPORT PLATE

$27.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 2 left!

0

28

Husqvarna 539104388

IDLER ARM
(Superseded to 539130532)

$182.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990365

PIN, COTTER, 1/8 x 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

30

Husqvarna 539990550

WASHER, 1/2

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539103433

HCS, 1/2C x 3 1/4, GR5

$6.99

$

In Stock, only 4 left!

0

32

Husqvarna 539102619

STRUT PIN, 52"/61" DECK

$40.99

$

In Stock, only 3 left!

0

32

Husqvarna 539105480

STRUT PIN, 72" DECK

$36.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539104390

STRUT, 52"/61" DECK

$302.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539110746

STRUT, 72" DECK

$151.99

$

Usually ships in 3-10 days

0

34

$12.99

$

Usually ships in 3-10 days

0

Husqvarna 539105974

GROMMET, RUBBER

Note: NOT SHOWN

$

$

Not available
