LZ 5225 (965879501) - Husqvarna 52" Zero-Turn Mower (2010-05) SEAT Parts Diagram

52" Zero-Turn Mower

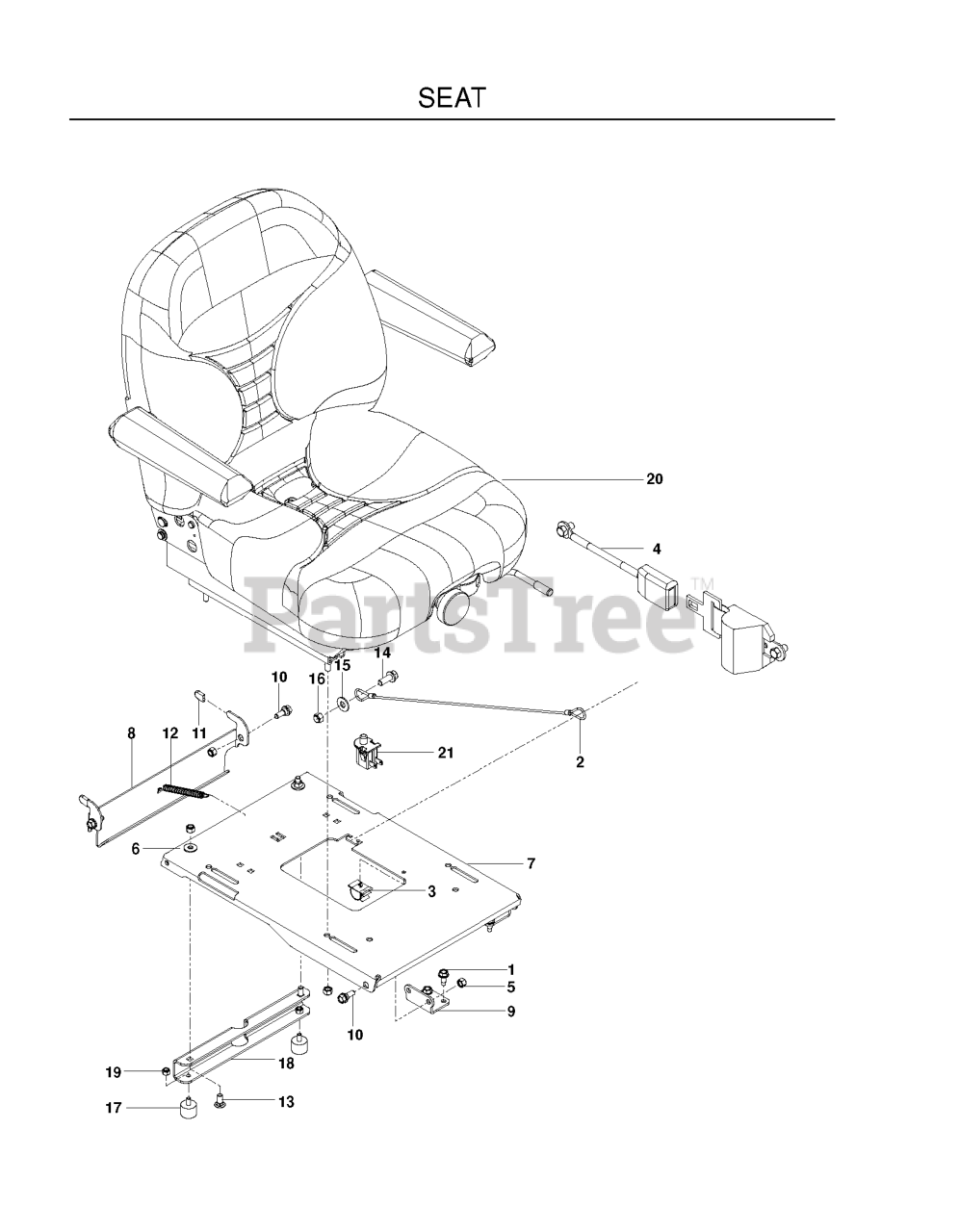

SEAT Parts Diagram

  • Title

11

Husqvarna 539130898

GRIP, VINYL, .09 X .495 X.75

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

20

Husqvarna 539132203

SEAT - SUSP, NC SWITCH

$

$

Not available

17

Husqvarna 539105039

STUD/PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539130359

SEAT BELT, RETRACTABLE
(Superseded to 596322701)

$136.99

$

In Stock, only 1 left!

0

16

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539130787

LATCH, SEAT - BLACK

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539130785

PAN, SEAT - BLACK

$121.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539132332

STANDOFF, SEAT PAN

$

$

Not available

12

Husqvarna 539977250

SPRING

$

$

Not available

15

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

1

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 539109570

SWITCH, NC
(Superseded to 539119741)

$14.99

$

In Stock, only 2 left!

0

13

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

9

Husqvarna 539130789

PIVOT, SEAT PAN

$15.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

10

Husqvarna 539130896

SB 5/16-18 HEX HD GD5, BLK ZN

$17.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

6

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0
