LZ 5225 (965879501) - Husqvarna 52" Zero-Turn Mower (2010-05) IGNITION SYSTEM Parts Diagram

52" Zero-Turn Mower

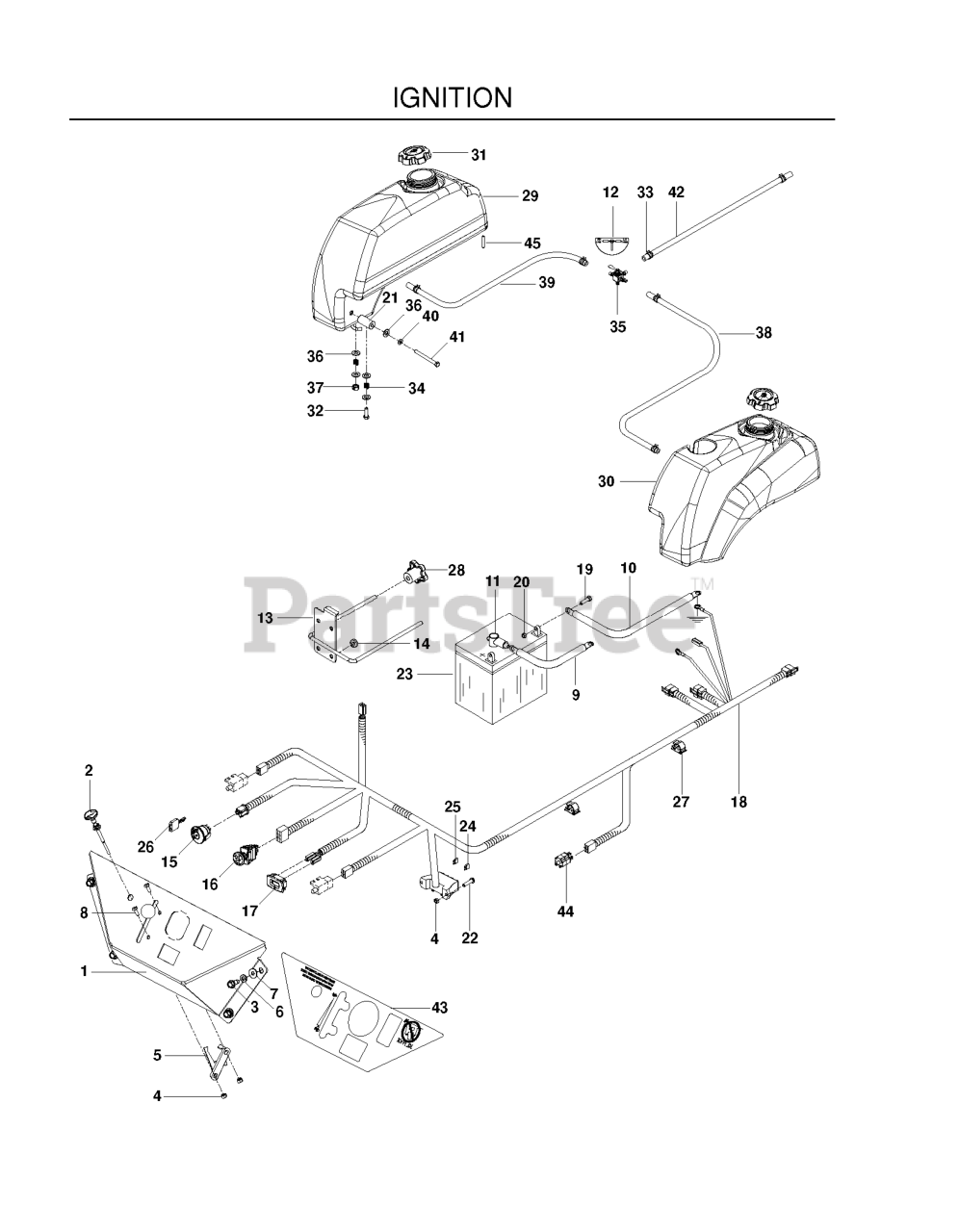

IGNITION SYSTEM Parts Diagram

  • Title

42

Husqvarna 539108212

FUEL LINE 13"

$2.49

$

In Stock, Qty 5

0

41

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

4

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

26

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 9

0

27

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

9

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

32

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539105280

HOSE 35"

$14.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539113791

HARNESS, WIRING LZ/IZ

$

$

Not available

40

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

29

Husqvarna 539104410

FUEL TANK RT

$

$

Not available

34

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

23

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

17

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

5

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

39

Husqvarna 539922091

FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539130207

CONTROL-CHOKE 57"
(Superseded to 539102733)

$56.99

$

In Stock, Qty 5

0

11

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

43

Husqvarna 539110956

DECAL, CONSOLE

$10.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

33

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

44

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

31

Husqvarna 539130393

FUEL CAP, HTC

$

$

Not available

15

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

7

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

10

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

30

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

$

$

Not available

21

Husqvarna 539104897

TANK SPACER

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

19

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

24

Husqvarna 539101771

FUSE, 7.5 AMP 32 VOLT ATO

$

$

Not available

12

Husqvarna 539102670

DECAL, FUEL VALVE

$3.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

45

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

36

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

25

Husqvarna 539102086

FUSE, 20 AMP 32 VOLT ATO

$

$

Not available

1

Husqvarna 539110953

CONSLE, ORANGE

$

$

Not available
