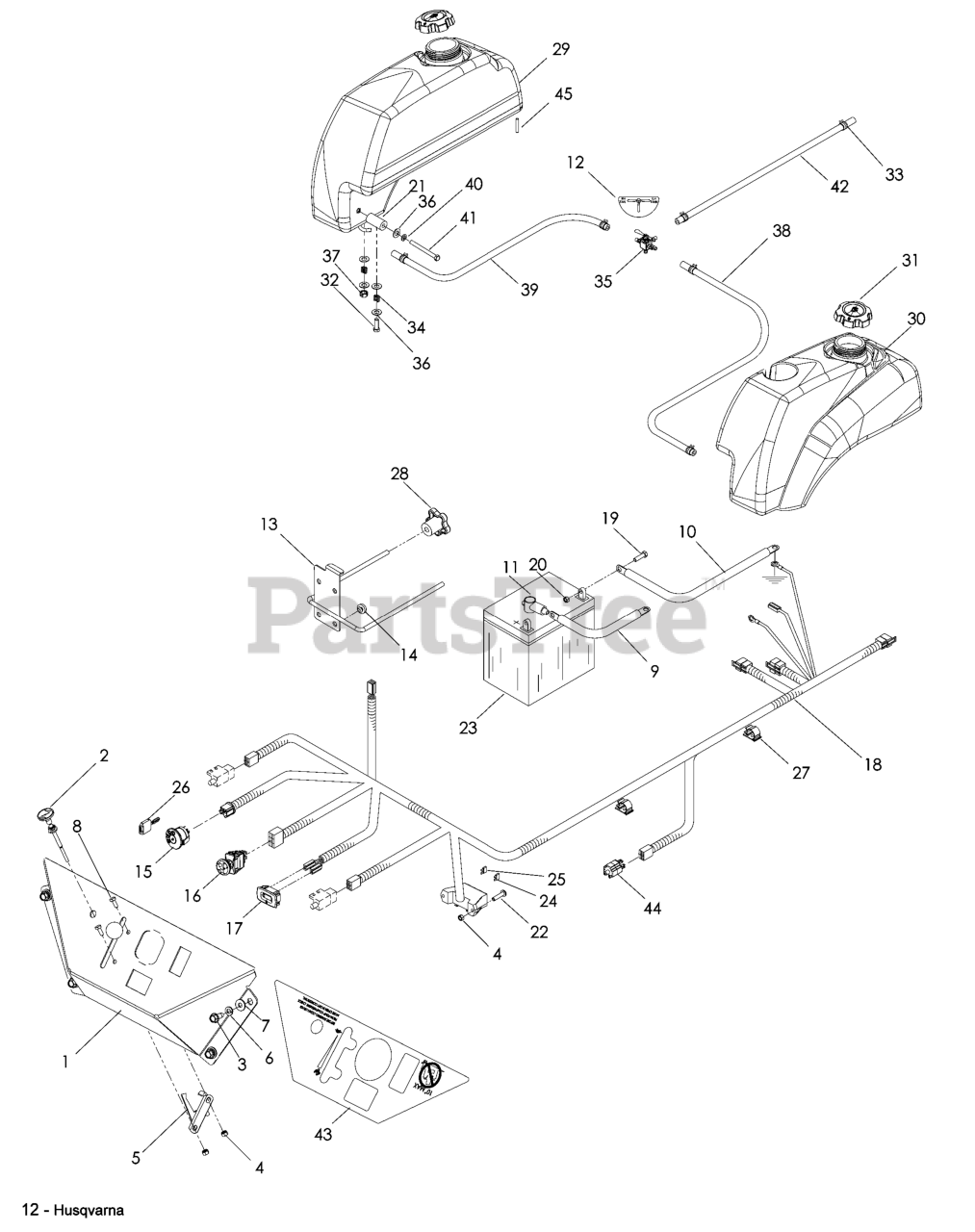

LZ 5225 (965879501) - Husqvarna 52" Zero-Turn Mower (2008-12) Ignition Parts Diagram

52" Zero-Turn Mower

Ignition Parts Diagram

  • Title

1

Husqvarna 539110953

CONSOLE

$

$

Not available

2

Husqvarna 539130207

CONTROL, CHOKE
(Superseded to 539102733)

$56.99

$

In Stock, Qty 5

0

3

Husqvarna 539990362

SCREW ¼-20 x 5/8 THD FRM

$4.99

$

In Stock, Qty 12

0

4

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

5

Husqvarna 539102732

CABLE, THROTTLE

$

$

Not available

6

Husqvarna 539990052

LOCKWASHER ¼

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990598

WASHER ¼ FLAT

$

$

Not available

8

Husqvarna 539990411

HCS 10-24 x ½

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104974

CABLE, POSITIVE

$

$

Not available

10

Husqvarna 539102758

CABLE, NEGATIVE

$

$

Not available

11

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

12

Husqvarna 539102670

DECAL, FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539105728

HOLD DOWN, BATTERY

$

$

Not available

14

Husqvarna 539102587

BUMPER

$5.99

$

In Stock, Qty 15

0

15

Husqvarna 539107541

SWITCH, IGNITION
(Superseded to 532175566)

$26.99

$

In Stock, only 4 left!

0

16

Husqvarna 539131627

SWITCH, PTO
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

17

Husqvarna 539110074

METER, HOUR
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

18

Husqvarna 539113791

HARNESS, FRAME

$

$

Not available

19

Husqvarna 539976934

HCS 5/16-18 x ¾
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539104897

SPACER, TANK

$7.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539102617

SCREW 10-24 x 7/8

$3.99

$

In Stock, only 3 left!

0

23

Husqvarna 539102436

BATTERY, DRY
(Superseded to 579411601)

$

$

Not available

24

Husqvarna 539101771

FUSE, 7.5 AMP 32V ATO

$

$

Not available

25

Husqvarna 539102086

FUSE, 20 AMP 32 V ATO

$

$

Not available

26

Husqvarna 539107544

KEY, PADDED
(Superseded to 532140401)

$6.99

$

In Stock, Qty 7

0

27

Husqvarna 539110815

CLIP, PUSH MOUNT WIRE

$3.49

$

In Stock, only 1 left!

0

28

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539104410

FUEL TANK RT

$

$

Not available

30

Husqvarna 539104409

FUEL TANK LT

$

$

Not available

31

Husqvarna 539130393

CAP, FUEL

$

$

Not available

32

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539912222

CLAMP, HOSE

$4.99

$

In Stock, only 1 left!

0

34

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 3 left!

0

35

Husqvarna 539102679

VALVE, FUEL

$56.99

$

In Stock, only 2 left!

0

36

Husqvarna 539990692

WASHER 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

37

Husqvarna 539990184

NUT 5/16-18 CNTRLK

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539105280

LINE, FUEL

$14.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539922091

LINE, FUEL

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539990187

WASHER 5/16 SLW
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

41

Husqvarna 539102335

HCS 5/16 x 4

$3.99

$

Usually ships in 3-10 days

0

42

Husqvarna 539108212

LINE, FUEL

$2.49

$

In Stock, Qty 5

0

43

Husqvarna 539110956

DECAL, CONSOLE

$10.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539113792

SWITCH, BRAKE

$17.99

$

In Stock, Qty 12

0

45

Husqvarna 539102502

STUD, FUEL TANK

$10.99

$

In Stock, only 4 left!

0
