LZ 5043 (960910015-03) - Lazer Tiller (2012-02) TRANSMISSION Parts Diagram

Tiller

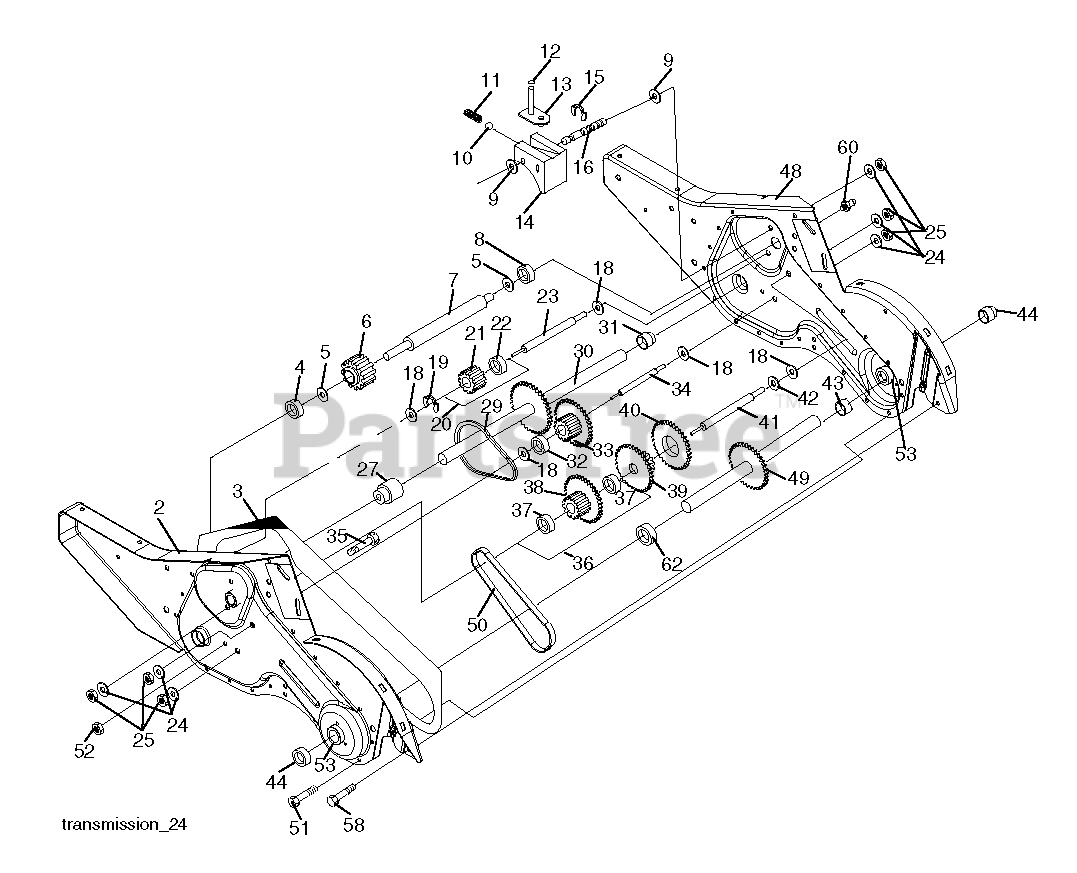

TRANSMISSION Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: TRANSMISSION ASSEMBLY (includes key numbers 2- 53) (188554)

$

$

Not available

2

Electrolux/AYP 532188482

GEARCASE.ASM.CRT.LH.W/BEARING
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 532431022

GASKET, GEARCASE

$24.99

$

In Stock, Qty 9

0

4

Electrolux/AYP 532005020

NEEDLE BRNG LT

$17.99

$

In Stock, Qty 5

0

5

Electrolux/AYP 532001370

THRUST WASHER

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 532137335

GEAR.PINION.INPUT
(Superseded to 586196301)

$26.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 532145101

SHAFT.INPUT."D".TILLER

$78.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532004895

BEARING

$17.99

$

In Stock, Qty 14

0

9

Electrolux/AYP 532154467

WASHER, SEAL

$7.49

$

In Stock, only 2 left!

0

10

Electrolux/AYP 532007392

BALL, STEEL
(Superseded to 532124862)

$

$

Not available

11

Electrolux/AYP 532100371

SPRING-SHIFT CRT

$7.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 532106160

O-RING TI

$6.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532142145

SHIFTING ARM

$

$

Not available

14

Electrolux/AYP 532008353

SHIFT FORK TI

$34.99

$

In Stock, Qty 7

0

15

Electrolux/AYP 812000039

KLIP RING

$6.49

$

In Stock, Qty 7

0

16

Electrolux/AYP 532154466

SHAFT.SHIFTER.TILLER

$6.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 532004358

WASHER

$7.49

$

In Stock, only 3 left!

0

19

Electrolux/AYP 812000040

KLIP RING

$6.49

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 532102114

GEAR ASSY CRT

$

$

Not available

21

Electrolux/AYP 532102115

GEAR-REV IDLR CRT

$26.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532006803

NEEDLE BEARING TI

$10.99

$

In Stock, Qty 5

0

23

Electrolux/AYP 532102111

SHAFT CRT

$22.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 873610700

NUT **

$7.49

$

In Stock, only 4 left!

0

27

Electrolux/AYP 532431219

BEARING.GROUND.DRIVE

$

$

Not available

29

Electrolux/AYP 532102134

CHAIN CRT

$31.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532150737

GROUND SHAFT ASS'Y

$

$

Not available

31

Electrolux/AYP 532143008

BEARING, SHAFT RH CRT

$

$

Not available

32

Electrolux/AYP 532106388

SPACER TI

$6.99

$

In Stock, only 1 left!

0

33

Electrolux/AYP 532102121

SPRCKT 8 GEAR CRT

$

$

Not available

34

Electrolux/AYP 532102112

SHAFT.SECONDARY.REDUCTION.CRT

$43.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532102101

SCRW WHIZ LOK CRT

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532154355

SPROCKET ASS'Y W/BRG

$

$

Not available

37

Electrolux/AYP 532004422

BEARING
(Superseded to 585695502)

$6.99

$

In Stock, only 2 left!

0

38

Electrolux/AYP 532154356

SPROCKET, TINE
(Superseded to 532154355)

$

$

Not available

39

Electrolux/AYP 532105345

GEAR TI
(Superseded to 532131527)

$

$

Not available

40

Electrolux/AYP 532105346

GEAR TI

$45.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 532008358

SHAFT.REDUCTION.TILLER

$17.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 532004220

BRNG RACE T

$5.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 532106146

SPACER TI

$34.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 532155236

SEAL ASM, OIL

$7.49

$

In Stock, only 3 left!

0

48

Electrolux/AYP 532188485

GEARCASE.ASM.CRT.RH.W/BEARING
(Superseded to 532181098)

$849.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532431485

SHAFT.ASM.TINE

$

$

Not available

50

Electrolux/AYP 532106147

CHAIN.TILLER

$66.99

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 873220500

NUT

$6.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 532165140

BEARING KIT

$93.99

$

In Stock, only 1 left!

0

58

Electrolux/AYP 532179520

BOLT SHOULDER 1/4-20 UNC X.875

$4.99

$

Usually ships in 3-10 days

0

60

Electrolux/AYP 532183226

FITTING.GREASE.TAPERED

$7.49

$

In Stock, only 2 left!

0

62

Electrolux/AYP 532431015

SPACER

$6.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532006066

GREASE CARTRIDGE
(Superseded to 585517301)

$

$

Not available
