LZ 5043 (960910015-01) - Lazer Tiller (2010-10) TINE ASSEMBLY Parts Diagram

Tiller

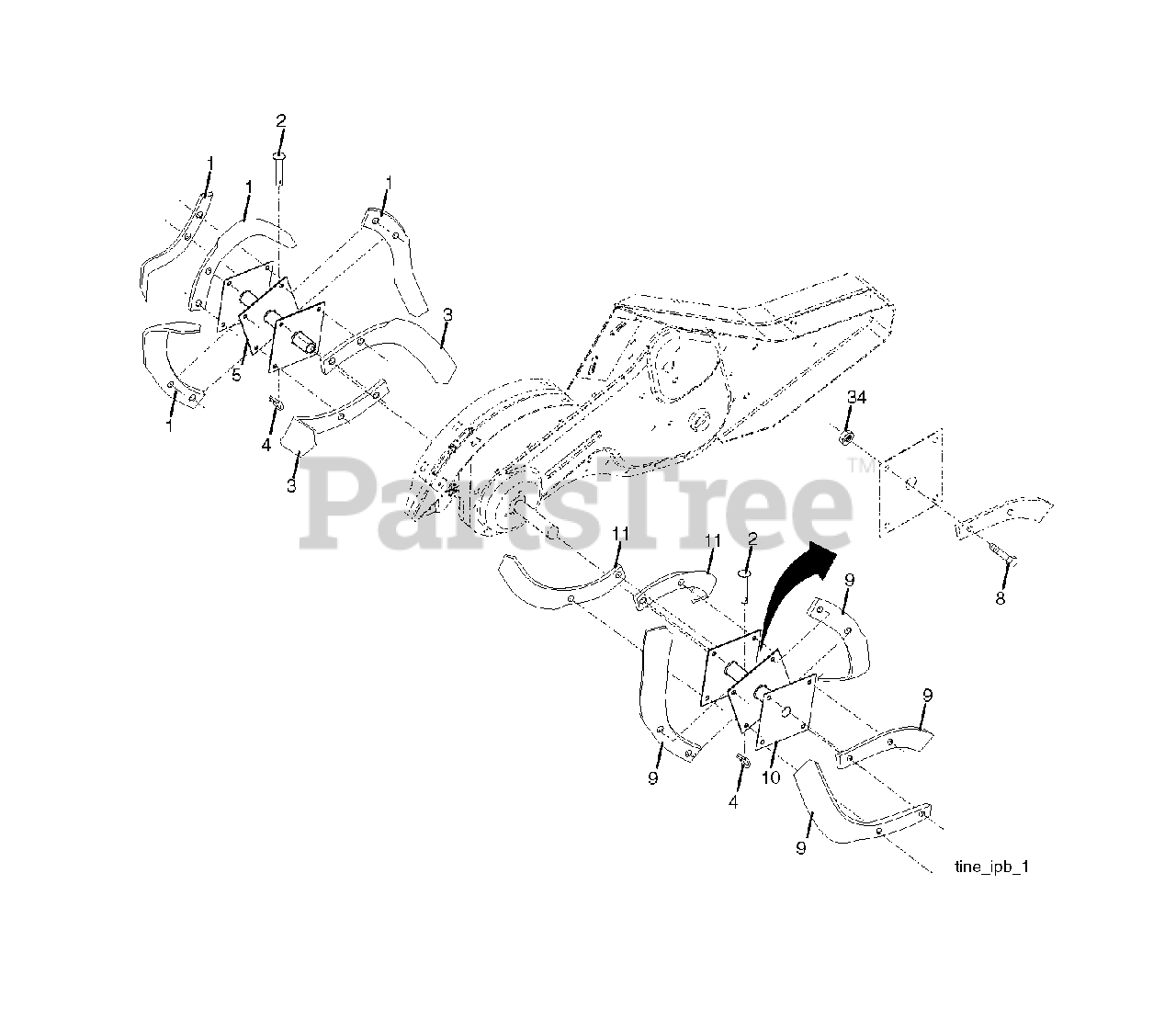

TINE ASSEMBLY Parts Diagram

  • Title
1

Electrolux/AYP 532004459

TINE TI
(Superseded to 532006554)

$

$

Not available

$4.99

$

In Stock, Qty 20+

0

3

$

$

Not available

4

Electrolux/AYP 532124660

SPRING RETAINER
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0

5

Electrolux/AYP 532132727

HUB & PLATE ASM LH
(Superseded to 132727)

$79.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 874610616

BOLT.HEX.001X20.37-24X1.ZINC

$7.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 532004460

TINE TI
(Superseded to 532006555)

$

$

Not available

10

Electrolux/AYP 532132728

HUB & PLATE ASM RH
(Superseded to 581813701)

$72.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532006555

TINE.RH.12"(72R)

$

$

Not available

34

Electrolux/AYP 873540600

NUT CROWNLOCK 3/8-24

$4.99

$

Usually ships in 3-10 days

0
