LZ-48 (53AM2PTB050) - Cub Cadet 48" Tank Zero-Turn Mower (2012) Engine Accessories (Briggs) Parts Diagram

48" Tank Zero-Turn Mower

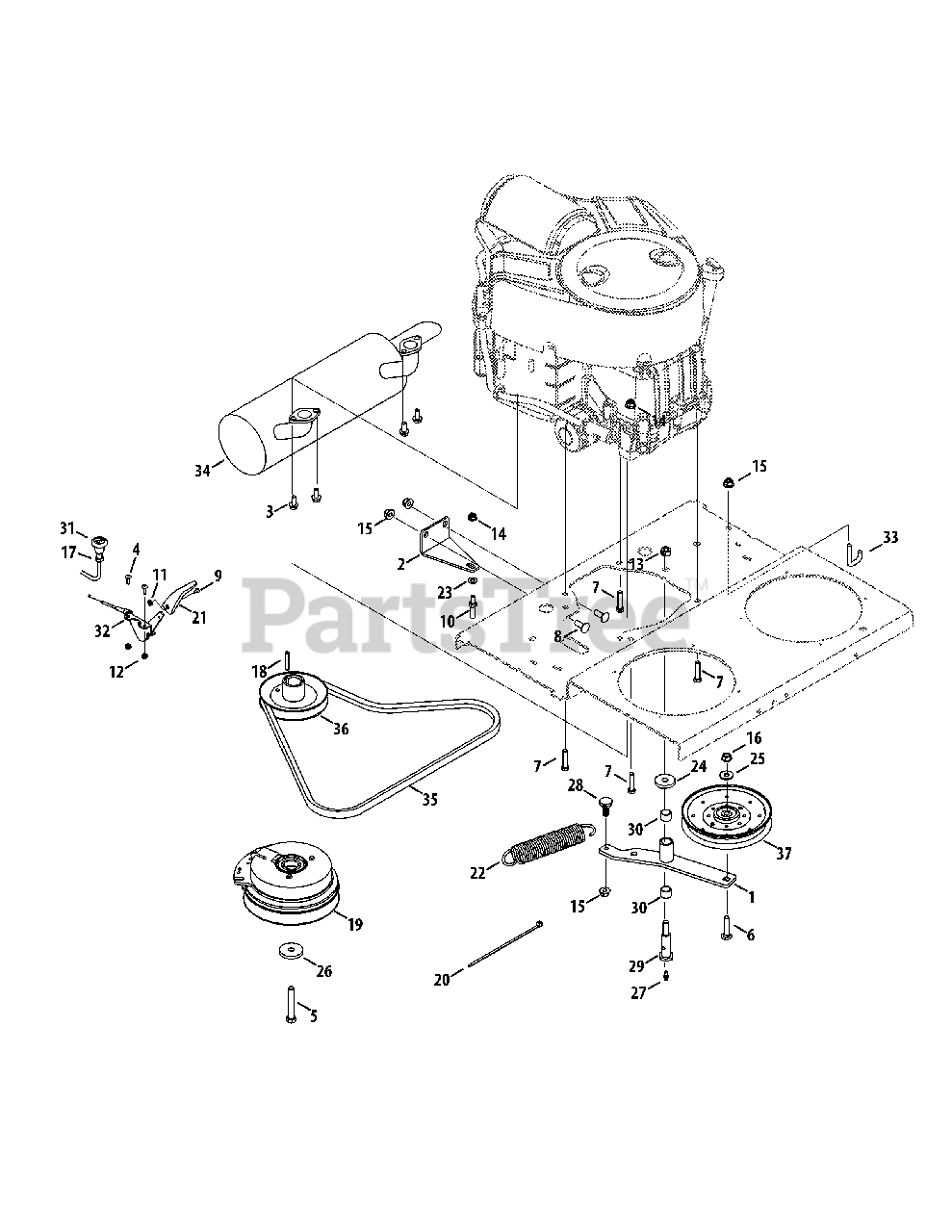

Engine Accessories (Briggs) Parts Diagram

  • Title

1

Cub Cadet 680-00227A-0637

Idler Bracket
(Superseded to 680E00227A)

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08607-0637

Clutch Retainer Bracket

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-04043

Hex Flange Screw, 5/16-18

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0425

Screw, #10-24 x .625

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04377

Hex Cap Screw, 7/16-20 x 2.75

$11.99

$

In Stock, only 1 left!

0

6

Cub Cadet 710-05376

Carriage Bolt, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-0805

Hex Cap Scrw, 5/16-18 x 1.50
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3217

Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 711-1637

Stud, Pivot Ball Joint

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0142

Nut, #8-32, Hex

$4.49

$

In Stock, Qty 10

0

12

Cub Cadet 712-0161

Nut, #10-24, Hexlock

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0290

Nut, 7/16-14, Hexlock

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 18

0

15

Cub Cadet 712-04065

Nut, 3/8-16, Flangelock

$3.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 912-0431

Nut, 3/8-16, Flangelock

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0711

Jam Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 714-0118

Key, 1/4 x 1.50

$6.99

$

In Stock, only 4 left!

0

19

Cub Cadet 917-04967

Electric PTO Clutch

$1081.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 732-04915A

Extension Spring, 1.5 x 7.5

$23.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 936-0275

Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available

24

Cub Cadet 736-3017

Washer, .471 x 1.50 x .225

$10.99

$

In Stock, only 4 left!

0

25

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 736-3082A

Washer, .471 x 1.50 x .225

$9.99

$

In Stock, Qty 16

0

27

Cub Cadet 937-0146

Grease Fitting

$5.49

$

In Stock, only 2 left!

0

28

Cub Cadet 738-1126

Shoulder Screw, .625 x .302, 3/8-16

$12.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01000302

Shoulder Bolt, .625 x 1.947, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

30

Cub Cadet 741-04555

Bearing, .638 x .753 x .615

$16.99

$

In Stock, Qty 18

0

31

Cub Cadet 946-04812

Choke Control Cable

$37.99

$

In Stock, Qty 6

0

32

Cub Cadet 946-04840

Throttle Cable

$42.99

$

In Stock, only 1 left!

0

33

Cub Cadet 747-05707

Transmission Spring Hook

$14.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 751-12645

Muffler

$208.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 954-04320

Belt

$48.99

$

In Stock, only 1 left!

0

36

Cub Cadet 756-04382

Drive Pulley

$50.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 756-04487

Idler Pulley

$66.99

$

In Stock, Qty 12

0
