LZ 30 C (968999751) - Husqvarna Zero-Turn Mower (2008-01) CHASSIS / FRAME Parts Diagram

Zero-Turn Mower

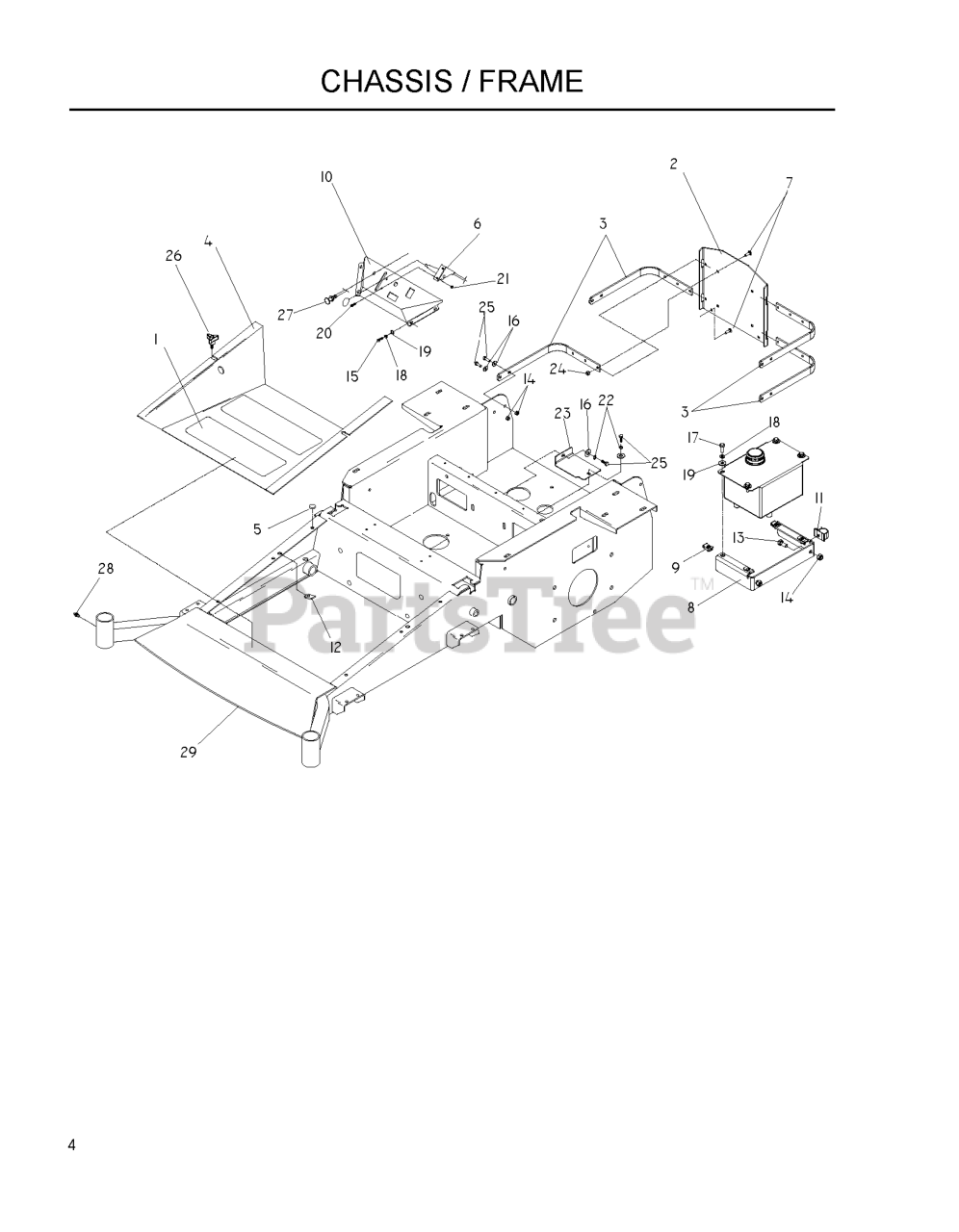

CHASSIS / FRAME Parts Diagram

  • Title

18

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

29

Husqvarna 539132278

FRAME W/DECALS

Note: "52""/61"" for units produced after Serial No. 074439861"

$

$

Not available

23

Husqvarna 539105716

IDLER COVER

$

$

Not available

29

Husqvarna 539132229

FRAME W/DECALS 52/61

Note: "52""/61"" for units produced before Serial No. 074439861"

$

$

Not available

5

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

25

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539110813

1/4C - U TYPE RETAINER

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

29

Husqvarna 539132279

FRAME W/DECALS

Note: "72"" for units produced after Serial No. 074439861"

$

$

Not available

15

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

22

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

7

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539132232

FRAME W/DECALS 72"

Note: "72"" for units produced before Serial No. 074439861"

$2077.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

12

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

10

Husqvarna 539110953

CONSLE, ORANGE

$

$

Not available

17

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539104721

FOOT PLATE WIDMT

$218.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539130207

CONTROL-CHOKE 57"
(Superseded to 539102733)

$56.99

$

In Stock, Qty 5

0

2

Husqvarna 539110976

XP GUARD, BLACK

$35.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

8

Husqvarna 539110814

TANK MOUNT

$18.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

24

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

19

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

13

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0
