LZ 30 C (968999751) - Husqvarna Zero-Turn Mower (2007-12) Hydro Pulley / Deck Struts Parts Diagram

Zero-Turn Mower

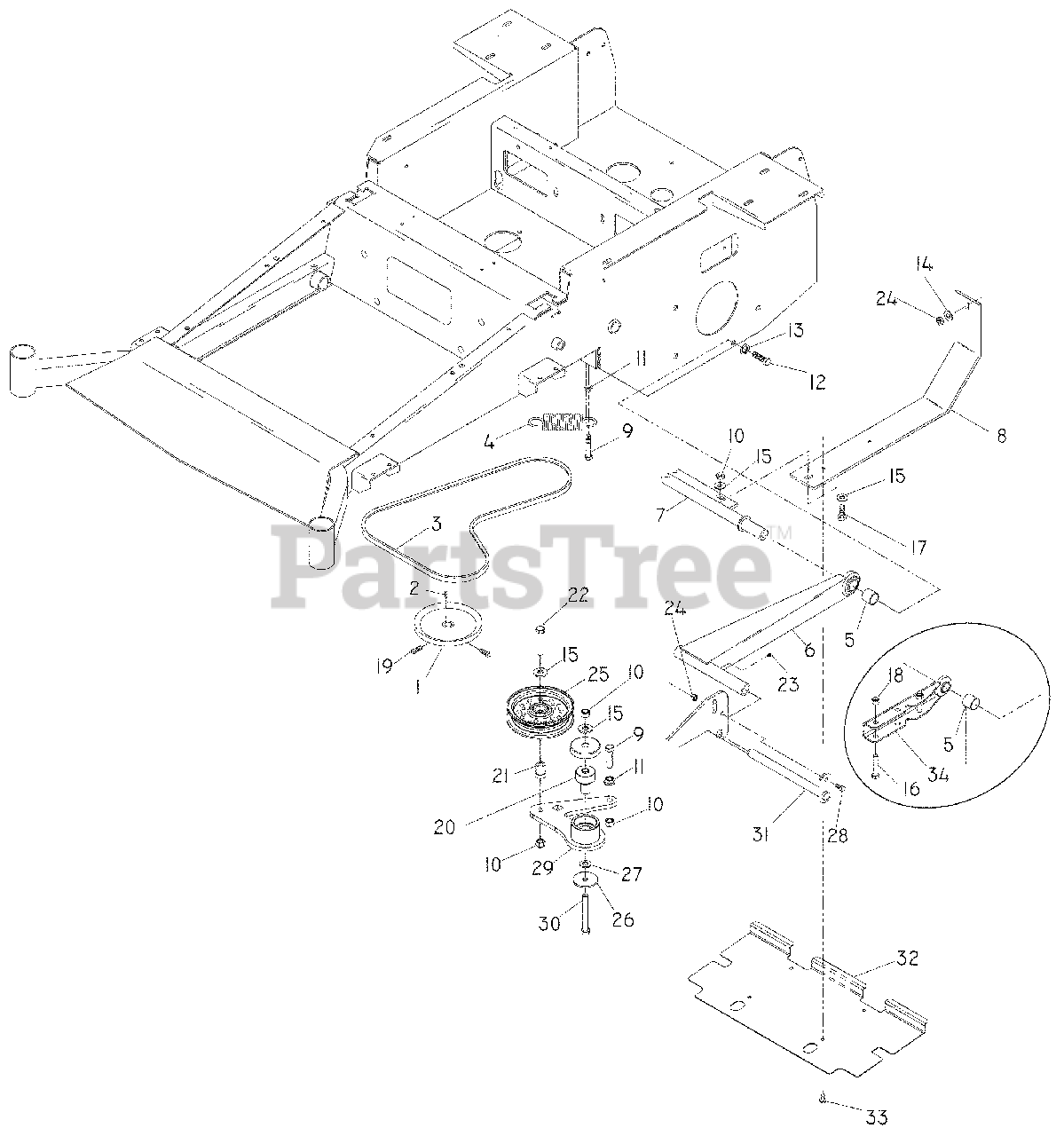

Hydro Pulley / Deck Struts Parts Diagram

  • Title

1

Husqvarna 539101176

PULLEY

$

$

Not available

2

Husqvarna 539101177

KEY

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 7

0

4

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 5

0

5

Husqvarna 539104521

STRUT SPACER

$9.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539104390

STRUT WELDMENT, REAR 52"/61"

$302.99

$

Usually ships in 3-10 days

0

Husqvarna 539110746

STRUT WELDMENT, REAR 72"

$151.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539132302

CROSS SHAFT

$

$

Not available

8

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539990655

HCS 3/8-16 x 1½

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

11

Husqvarna 539990613

NUT 3/8-16 HEX WHIZLK

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539119007

BOLT

$10.99

$

In Stock, only 3 left!

0

13

Husqvarna 539990247

LOCKWASHER 7/16

$

$

Not available

14

Husqvarna 539990692

WASHER, 5/16 STD FLT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539103433

HCS ½-13 x 3¼

$6.99

$

In Stock, only 4 left!

0

17

Husqvarna 539990563

HCS, 3/8 -16 x 1

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101331

NUT ½ -13, NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 539102717

SCREW, SET

$3.99

$

In Stock, only 4 left!

0

20

Husqvarna 539130205

PIVOT BEARING

$4.99

$

In Stock, only 1 left!

0

21

Husqvarna 539976695

IDLER FLANGE BUSHING

$

$

Not available

22

Husqvarna 539990588

HCS, 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

23

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

26

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

27

Husqvarna 539990122

WASHER, 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539130392

IDLER ARM

$48.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101341

HCS 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

31

Husqvarna 539102619

PIVOT PIN WELDMENT 52"/61"

$40.99

$

In Stock, only 3 left!

0

Husqvarna 539105480

PIVOT PIN WELDMENT 72"

$36.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539112636

GUARD, REAR DEBRIS MODELS 968999677, 968999751

$35.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539107476

BOLT 5/16-18 x ¾ THRD FRM MODELS 968999677, 968999751

$6.49

$

In Stock, only 1 left!

0

34

Husqvarna 539112516

STRUT WELDMENT, REAR MODELS 968999677, 968999751

$51.99

$

Usually ships in 3-10 days

0
