LZ 30 C (968999751) - Husqvarna Zero-Turn Mower (2007-12) Deck Lift Parts Diagram

Zero-Turn Mower

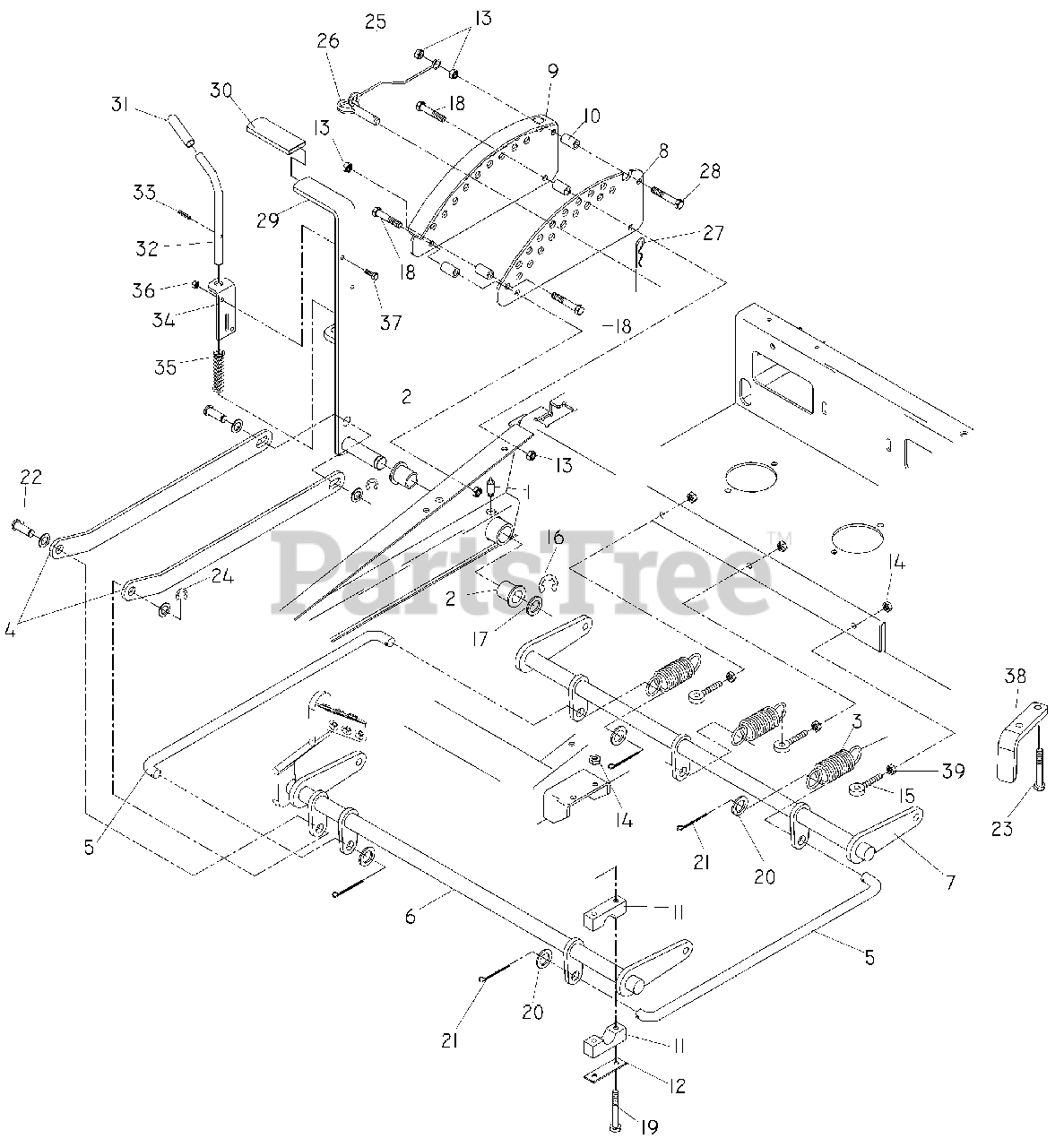

Deck Lift Parts Diagram

  • Title
1

Husqvarna 539104761

ZERK, LONG

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101232

BUSHING, FLANGE

$13.99

$

In Stock, Qty 7

0

3

Husqvarna 539104760

SPRING, DECK LIFT

$

$

Not available

4

Husqvarna 539105050

LINKAGE, LIFT

$23.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539104310

LINK, CONNECTING

$21.99

$

In Stock, only 1 left!

0

6

Husqvarna 539132170

SHAFT ASSM W/PEDAL, FT

$

$

Not available

7

Husqvarna 539108354

SHAFT, REAR LIFT

$103.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539104323

PLATE, ADJUSTMENT

$23.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104321

PLATE, ADJUSTMENT

$61.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539104530

SPACER, DECK LIFT

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539104808

BLOCKS, PILLOW

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539104807

PLATE, SUPPORT
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

13

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539101982

EYEBOLT, 5/16C

$43.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539101802

E-RING, 7/8

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539923787

BUSHING, MACHINE

$3.99

$

In Stock, only 1 left!

0

18

Husqvarna 539990637

HCS, 3/8C x 2½

$1.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539101721

HCS, 5/16C x 2¾

$4.99

$

In Stock, Qty 7

0

20

Husqvarna 539976982

WASHER, 5/8, SAE

$4.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539990654

PIN, COTTER

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539105060

PIN, CLEVIS 5/8

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539107476

BOLT, 3/8-16 x 1, THD FORM

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 539105069

E-RING, 5/8

$3.99

$

Usually ships in 3-10 days

0

25

$10.99

$

In Stock, only 1 left!

0

26

Husqvarna 539102526

PIN, HITCH

$21.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976989

PIN, HAIR 4

$3.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539102612

HCS, 3/8C x 2¾

$5.99

$

In Stock, only 3 left!

0

29

Husqvarna 539108322

LEVER, LIFT

$103.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539102515

CUSHION, HANDLE

$

$

Not available

31

Husqvarna 539101050

GRIP, VINYL

$3.99

$

In Stock, only 4 left!

0

32

Husqvarna 539104523

PIN, LOCKING

$

$

Not available

33

Husqvarna 539106532

PIN, GROOVED

$3.99

$

In Stock, Qty 5

0

34

Husqvarna 539103534

PIN MOUNT, UPPER

$27.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539101058

SPRING, COMPRESSION

$4.99

$

In Stock, only 2 left!

0

36

Husqvarna 539990761

NUT ¼-20, CENTERLOCK

$4.99

$

In Stock, only 4 left!

0

37

Husqvarna 539990580

HCS, ¼ - 20 x ¾

$3.99

$

Usually ships in 3-10 days

0

38

$11.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539990585

NUT 5/16-18, WHIZ

$3.99

$

Usually ships in 3-10 days

0
