LZ 30 (968999776) - Husqvarna Zero-Turn Mower (2009-06) ENGINE PLATE Parts Diagram

Zero-Turn Mower

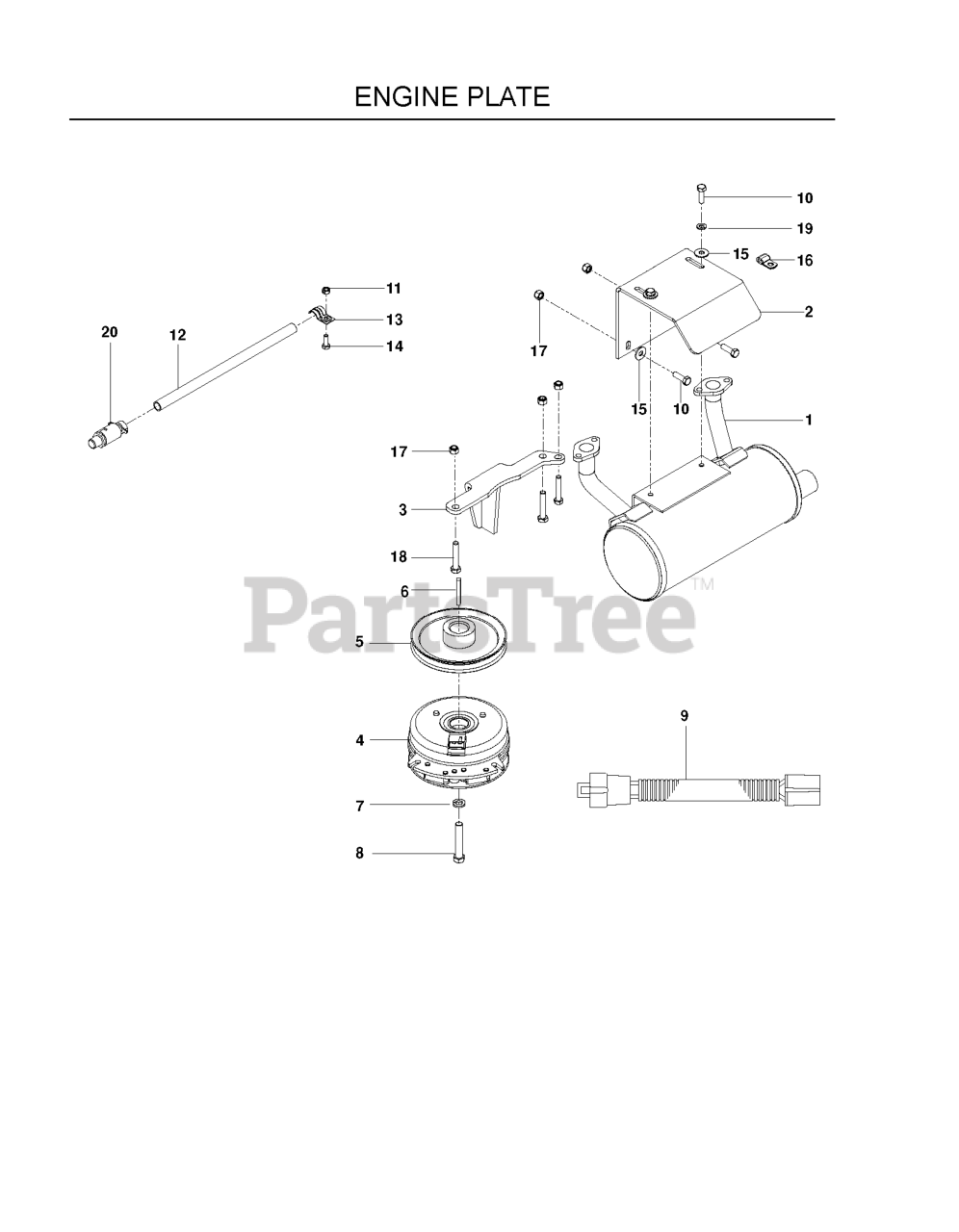

ENGINE PLATE Parts Diagram

  • Title

13

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 539104416

KOH PIGTAIL

$42.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

5

Husqvarna 539106057

PULLEY

$

$

Not available

17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

10

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510201702

WLDT, CLUTCH TIE DOWN BLK

$66.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

2

Husqvarna 539111093

MUFFLER BRACKET BLACK

$36.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 539105406

ELECTRIC CLUTCH W/CABLE

$

$

Not available

12

Husqvarna 539107937

OIL DRAIN HOSE

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539110093

OIL DRAIN FITTING
(Superseded to 532428287)

$18.99

$

In Stock, only 4 left!

0

6

Husqvarna 539100152

KEY 1/4" SQ X 1 7/8"

$3.99

$

In Stock, Qty 5

0

19

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

8

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.99

$

In Stock, Qty 8

0

1

Husqvarna 539105896

MUFFLER KOHLER GEN II

$

$

Not available

18

Husqvarna 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

16

Husqvarna 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0
