LZ 30 (968999776) - Husqvarna Zero-Turn Mower (2008-01) Seat Parts Diagram

Zero-Turn Mower

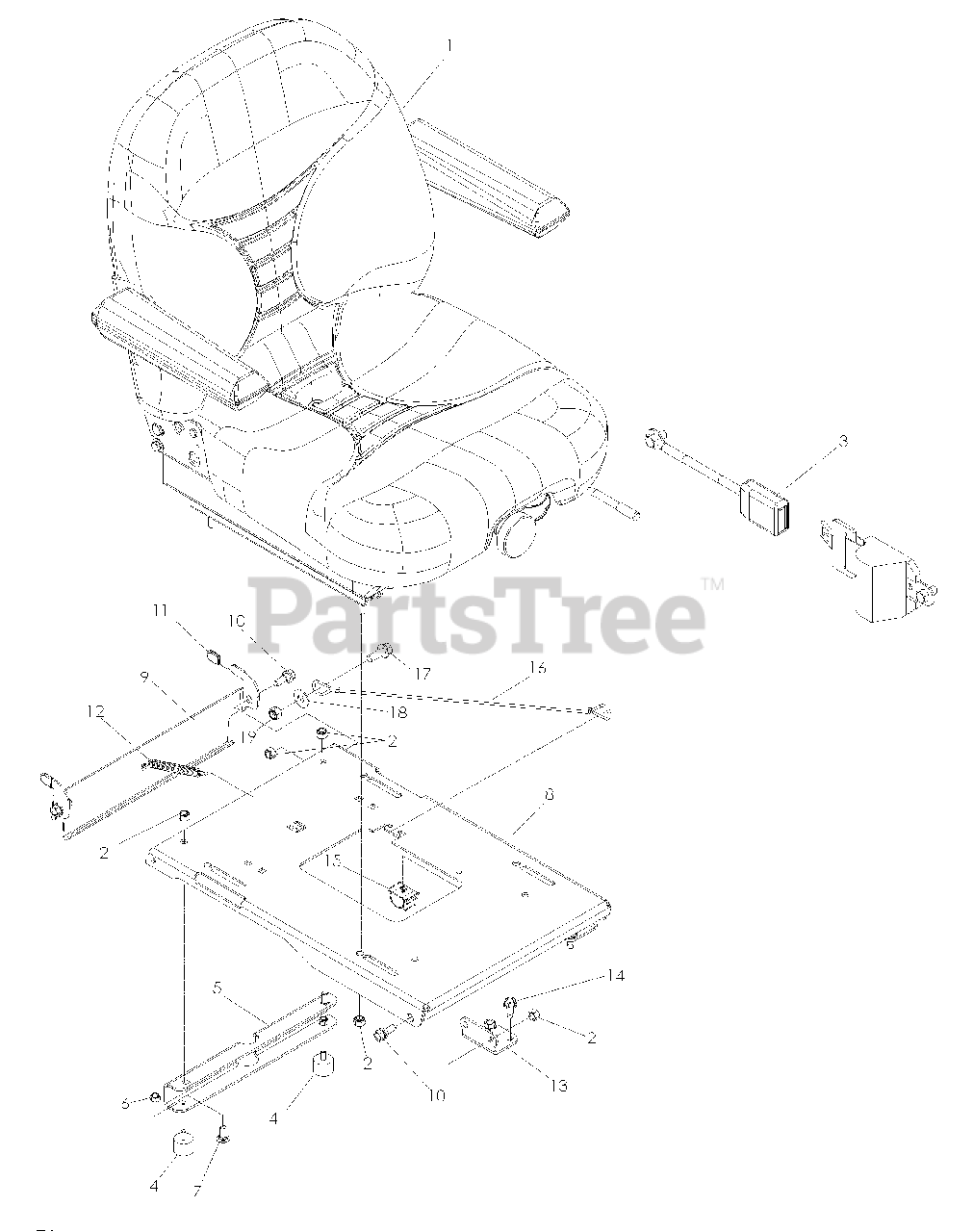

Seat Parts Diagram

  • Title

1

Husqvarna 539132203

SEAT

$

$

Not available

2

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539130359

SEAT BELT-RETRACTABLE
(Superseded to 596322701)

$136.99

$

In Stock, only 1 left!

0

4

Husqvarna 539105039

STUD PLATE MOUNT

$6.49

$

Usually ships in 3-10 days

0

5

Husqvarna 539132332

STANDOFF, SEAT PAN

$

$

Not available

6

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

7

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539130785

PAN, SEAT

$121.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539130787

LATCH, SEAT

$26.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539130896

SB 5/16-18 HEX HD

$17.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539130898

GRIP, VINYL

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539977250

SPRING

$

$

Not available

13

Husqvarna 539130789

PIVOT SEAT PAN

$15.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539107475

BOLT 5/16-18 x 3/4 THD FRM

$6.49

$

In Stock, only 4 left!

0

15

Husqvarna 539110815

WIRE CLIP PUSH-MOUNT

$3.49

$

In Stock, only 1 left!

0

16

Husqvarna 539103247

SEAT LANYARD

$21.99

$

In Stock, only 2 left!

0

17

Husqvarna 539990582

HCS 3/8-16 x 1 WHIZLK

$

$

Not available

18

Husqvarna 539990517

WASHER 3/8 FLAT STD

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0
