LZ 30 (968999776) - Husqvarna Zero-Turn Mower (2008-01) Hydraulic Pump-Motor Parts Diagram

Zero-Turn Mower

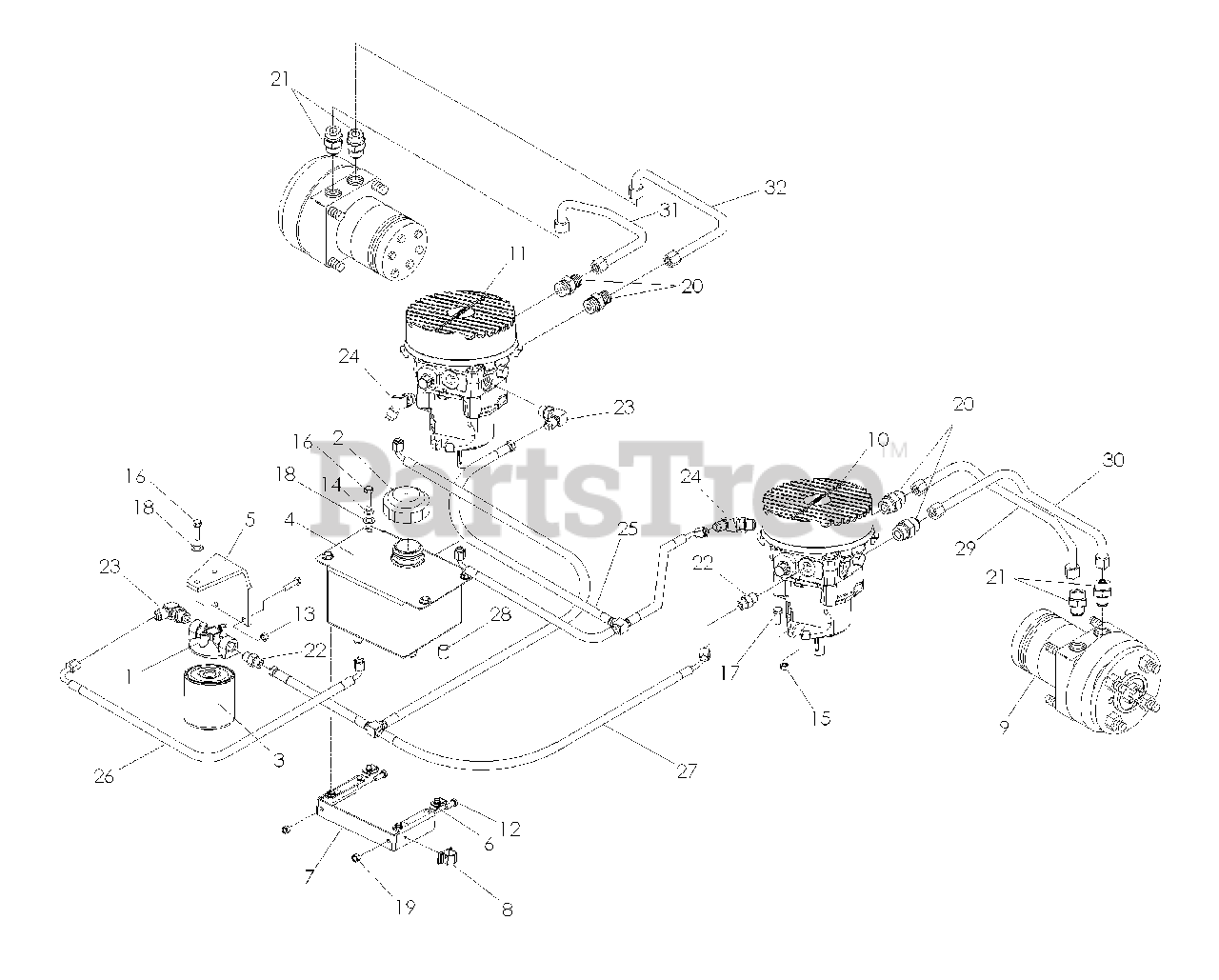

Hydraulic Pump-Motor Parts Diagram

  • Title

1

Husqvarna 539101165

FILTER HEAD

$

$

Not available

2

Husqvarna 539101202

CAP HYDRO TANK

$24.99

$

In Stock, only 1 left!

0

3

Husqvarna 539102606

FILTER

$44.99

$

In Stock, Qty 8

0

4

Husqvarna 539105024

OIL TANK

$

$

Not available

5

Husqvarna 539106933

FILTER BRACKET

$27.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539110813

RETAINER 1/4-20 U-TYPE

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539110814

TANK MOUNT

$18.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110815

WIRE CLIP PUSH-MOUNT

$3.49

$

In Stock, only 1 left!

0

9

Husqvarna 539110823

TI15 WHEEL MOTOR

$1139.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539132142

PUMP 10cc W/FAN LEFT

$1942.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539132143

PUMP 10cc W/FAN RIGHT

$1942.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539976934

HCS 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

13

Husqvarna 539976978

NUT 1/4-20 HEX NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

14

Husqvarna 539990052

WASHER, 1/4 SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990546

NUT 3/8-16 HEX CTR LK

$

$

Not available

16

Husqvarna 539990580

HCS 1/4-20 x 3/4

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990582

HCS 3/8-16 x 1 WHIZLK

$

$

Not available

18

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

19

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539101237

FITTING STRAIGHT

$12.99

$

In Stock, only 2 left!

0

21

Husqvarna 539102396

FITTING STRAIGHT

$

$

Not available

22

Husqvarna 539113782

FITTING STRAIGHT

$7.49

$

In Stock, only 3 left!

0

23

Husqvarna 539101238

FITTING ELBOW

$15.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539132316

FITTING ELBOW

$12.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539132290

"T" ASSEM RETURN

$

$

Not available

26

Husqvarna 539132288

TANK HOSE
(Superseded to 539132287)

$34.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539132289

"T" ASSEM SUPPLY

$

$

Not available

28

Husqvarna 539105168

CAP

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 539132284

HYDRAULIC LINE

$26.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539132285

HYDRAULIC LINE

$36.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539132286

HYDRAULIC LINE

$36.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539132287

HYDRAULIC LINE

$34.99

$

Usually ships in 3-10 days

0
