LZ 30 (968999677) - Husqvarna Zero-Turn Mower (2008-01) CHASSIS / FRAME Parts Diagram

Zero-Turn Mower

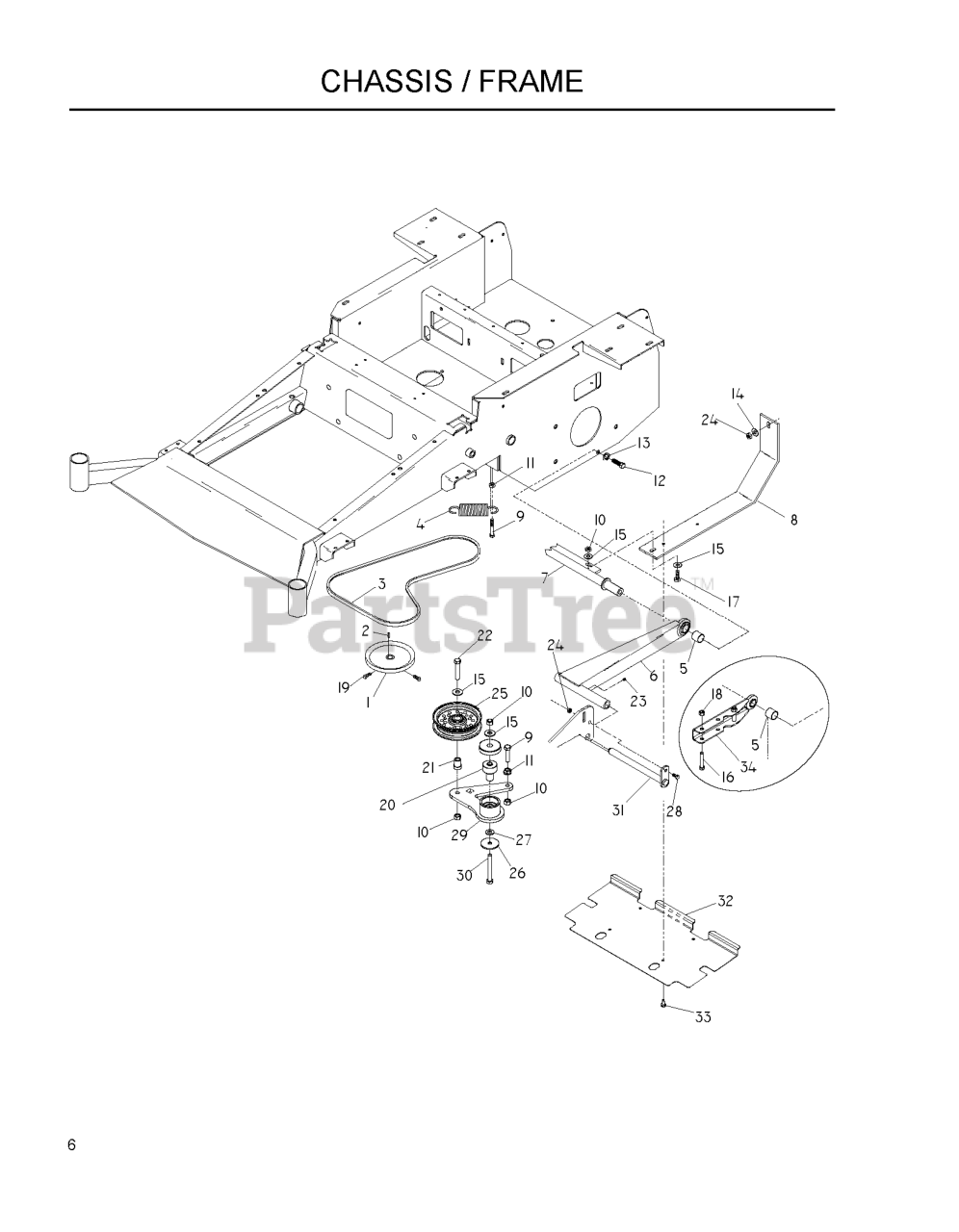

CHASSIS / FRAME Parts Diagram

  • Title

3

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 8

0

13

Husqvarna 539990247

WASHER 7/16 LOCK

$

$

Not available

23

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

24

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

7

Husqvarna 539132302

CROSS SHAFT, STRUT - BLK

$

$

Not available

31

Husqvarna 539105480

PIN WELDMENT

Note: "72"""

$36.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 539112636

REAR DEBRIS SHIELD

Note: "968999677, 968999751"

$35.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 6

0

5

Husqvarna 539104521

SPACER, STRUT

$9.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

26

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

1

Husqvarna 539101176

PULLEY

$

$

Not available

11

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

19

Husqvarna 539102717

SCREW 5/16C X 5/8 SQ HEAD

$3.99

$

In Stock, only 4 left!

0

9

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

20

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

8

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 3 left!

0

34

Husqvarna 539112516

STRUT WELDMENT, REAR

Note: "968999677, 968999751"

$51.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539110746

STRUT 72"

Note: "72"""

$151.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

33

Husqvarna 539107476

BOLT 3/8-16 X 1.0

Note: "968999677, 968999751"

$6.49

$

In Stock, only 1 left!

0

6

Husqvarna 539104390

STRUT

Note: "52""/61"""

$302.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539102619

PIVOT PIN

Note: "52""/61"""

$40.99

$

In Stock, only 3 left!

0

29

Husqvarna 539130392

ARM, IDLER - W/BEARINGS

$48.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

16

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

25

Husqvarna 539976688

IDLER PULLEY

$

$

Not available
