LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) Wheel And Tires Parts Diagram

Zero-Turn Mower

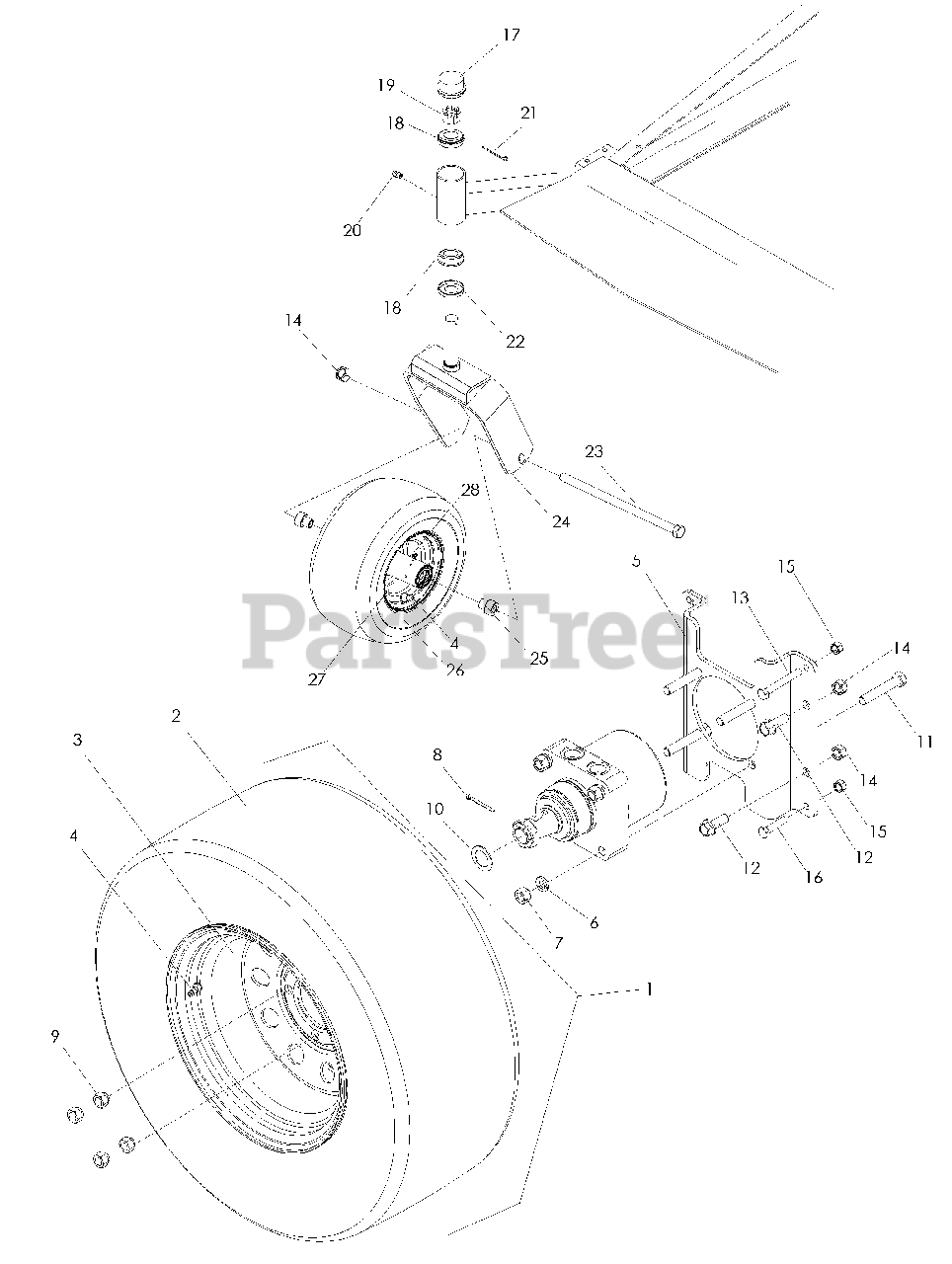

Wheel And Tires Parts Diagram

  • Title

1

Husqvarna 539112592

Tire Assem, Rr 23 x 9.5-12

$

$

Not available

2

Husqvarna 539112599

Tire Rr

$194.99

$

Usually ships in 3-10 days

0

3

Husqvarna 510253001

Rim Rr

$

$

Not available

4

Husqvarna 539912234

Valve

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539132300

Mount Wheel Motor

$

$

Not available

6

Husqvarna 539990254

Washer 1/2 Splt Lock

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990258

Nut 1/2-13 Hex

$4.99

$

In Stock, Qty 14

0

8

Husqvarna 539104288

Pin, Cotter

$3.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539101173

Lug Nut 1/2

$

$

Not available

10

Husqvarna 539916561

Bushing, 1 x 14 Ga

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101332

Hcs 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

12

Husqvarna 539990622

Bolt 1/2-13 x 1 1/4 Whizlk

$4.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539990629

Hcs 3/8-16 x 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539101331

Nut 1/2-13 Hex Nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 539976941

Hcs 3/8-16 x 1 1/4

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 539102535

Cap, Grease
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

18

Husqvarna 539102543

Bearing, Roller

$40.99

$

In Stock, only 2 left!

0

19

Husqvarna 539102852

Nut 1-14 Slotted Jam

$

$

Not available

20

Husqvarna 539101474

Zerk

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 539102889

Pin, Cotter
(Superseded to 539124704)

$

$

Not available

22

Husqvarna 539102851

Seal

$7.99

$

In Stock, only 4 left!

0

23

Husqvarna 539105517

Hcs 1/2-13 x 9 1/2

$

$

Not available

24

Husqvarna 539105982

Yoke, Caster

$303.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539105518

Spacer, Axle

$9.49

$

In Stock, only 4 left!

0

26

Husqvarna 539105521

Wheel Assem, Caster

$182.99

$

In Stock, only 3 left!

0

27

Husqvarna 539105523

Rim

$

$

Not available

28

Husqvarna 539103300

Zerk

$4.99

$

In Stock, Qty 18

0
