LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) Chassis / Frame Parts Diagram

Zero-Turn Mower

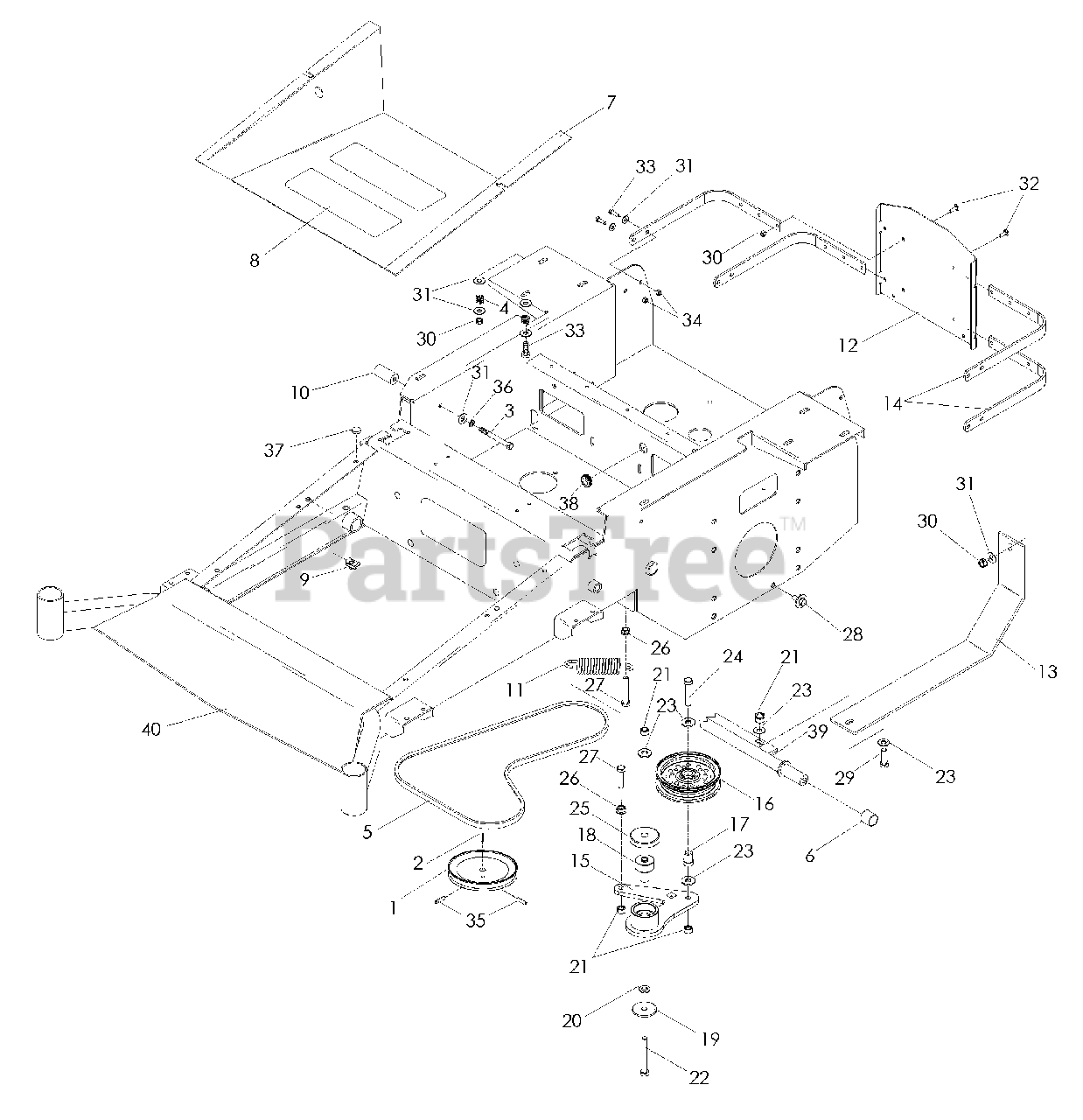

Chassis / Frame Parts Diagram

  • Title

1

Husqvarna 539101176

Pulley

$

$

Not available

2

Husqvarna 539101177

Key

$8.99

$

In Stock, only 2 left!

0

3

Husqvarna 539102335

Hcs 5/16-18 X 4

$3.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539102845

Spring, Fuel Tank

$4.99

$

In Stock, only 3 left!

0

5

Husqvarna 510201501

Belt, Pump

$46.99

$

In Stock, Qty 7

0

6

Husqvarna 539104521

Spacer, Strut

$9.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104721

Foot Plate

$218.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539977778

Pad, Anti-Skid

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 539104763

Retainer, 5/16-18 U-Type

$6.49

$

In Stock, Qty 12

0

10

Husqvarna 539104897

Spacer-Tank

$7.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539103326

Spring

$24.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539110976

Guard, Black

$35.99

$

Usually ships in 3-10 days

0

13

Husqvarna 539112634

Skid Plate

$46.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539106961

Strap, Black

$21.99

$

In Stock, only 1 left!

0

15

Husqvarna 539130392

Arm, Idler W/Bearings

$48.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539976688

Pulley, Idler Hd

$

$

Not available

17

Husqvarna 539976695

Bushing, Idler Flange

$

$

Not available

18

Husqvarna 539130205

Pivot Bearing

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 539111897

Washer 3/8 Special

$

$

Not available

20

Husqvarna 539990122

Washer 3/8 Sae Flt
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539101341

Hcs 3/8-16 X 3

$5.99

$

In Stock, Qty 12

0

23

Husqvarna 539990517

Washer 3/8 Std Flt

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990588

Hcs 3/8-16 X 2

$4.99

$

In Stock, Qty 10

0

25

Husqvarna 539114662

Shield, Dust

$

$

Not available

26

Husqvarna 539990613

Nut 3/8-16 Hex Whizlk

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539990655

Hcs 3/8-16 X 1 1/2

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 539119007

Blade Bolt/Washer

$10.99

$

In Stock, only 3 left!

0

29

Husqvarna 539990563

Hcs 3/8-16 X 1

$1.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990184

Nut 5/16-18 Hex Ctrlk

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990692

Washer 5/16 Std Flt
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

32

Husqvarna 539990316

Rhsnb 5/16-18 X 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

33

Husqvarna 539990209

Hcs 5/16-18 X 1

$1.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 539110631

Roll Pin

$3.99

$

In Stock, Qty 16

0

36

Husqvarna 539990187

Washer 5/16 Lock
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

37

Husqvarna 539102587

Bumper

$5.99

$

In Stock, Qty 15

0

38

Husqvarna 539110433

Grommet Fuel Line

$4.99

$

Usually ships in 3-10 days

0

39

Husqvarna 539132302

Cross Shaft Strut

$

$

Not available

40

Husqvarna 539131469

Frame

$

$

Not available

Husqvarna 539112981

Deck Stop

Note: Not Shown

$21.99

$

Usually ships in 3-10 days

0

Husqvarna 539107476

Bolt 3/6-16x1 Thd Frm

Note: Not Shown

$6.49

$

In Stock, only 1 left!

0

Husqvarna 539113160

Height Stop

Note: Not Shown

$26.99

$

Usually ships in 3-10 days

0
